Accsoon CineView Master 4K-RX
UPC/EAN #607609770183
MPN #WIT07-TX
Receiver only, 4K60 video output, supports HDMI and SDI outputs, streams to 5 devices, tri-band wireless (2.4GHz-5GHz-6GHz), simultaneous SDI and HDMI output, low latency at 25ms,

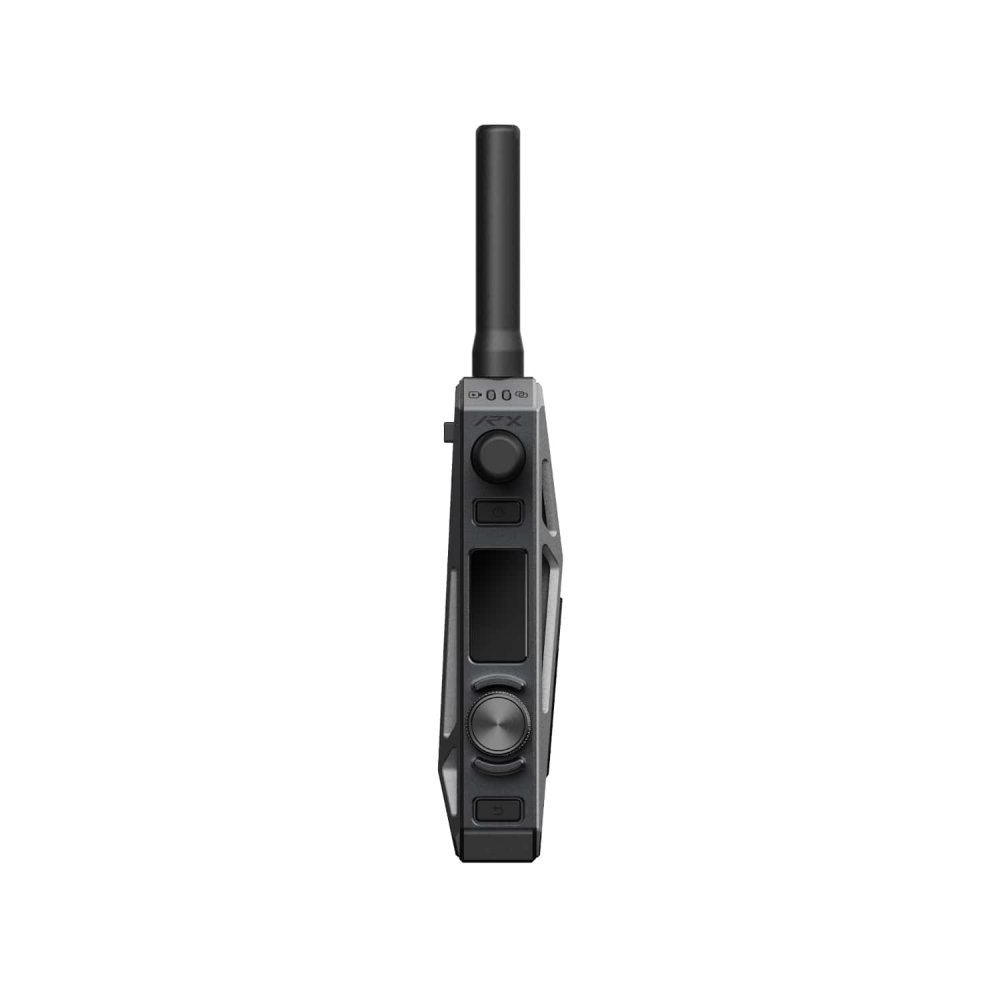

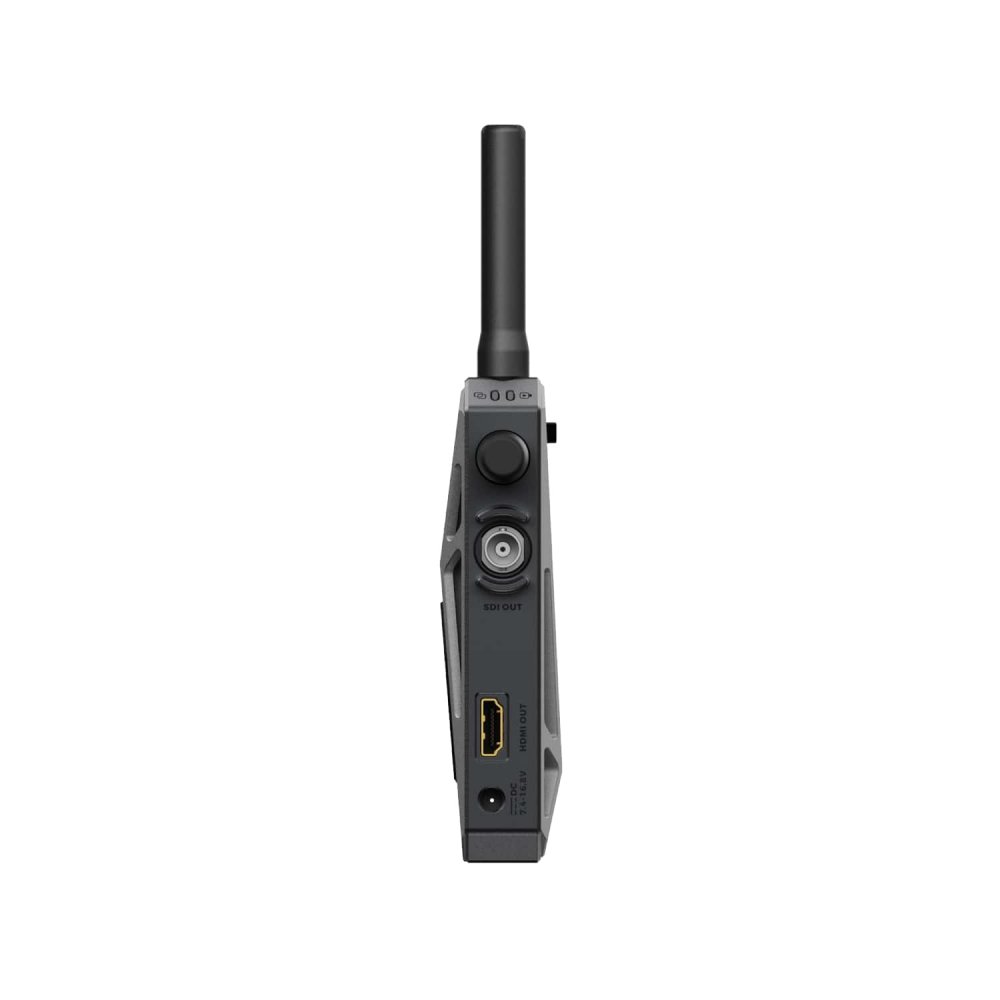

The CineView Master 4K Receiver is designed to wirelessly receive video transmissions with remarkable clarity and low latency, making it ideal for professional video production. Paired with the CineView Master 4K transmitter, this system ensures smooth video and audio transmission with minimal interference, utilizing tri-band wireless technology (2.4GHz, 5GHz, and 6GHz) for added stability. The receiver can output video via HDMI or SDI, allowing for seamless integration into various monitoring setups.
This receiver is capable of handling up to 4K60 video, providing detailed, high-resolution imagery. It supports multiple video streams, allowing connections with up to five devices simultaneously, which can include other receivers or mobile devices through the Accsoon SEE App. Its versatility is further enhanced by compatibility with both Android and iOS, enabling remote monitoring and adjustments. With a rugged aluminum alloy build, the receiver is built for demanding production environments and operates efficiently with DC input or NP-F batteries, making it portable and adaptable to different scenarios.
Features
4K60 Video OutputSDI and HDMI OutputSimultaneous ConnectionsLow LatencyMultiple Video Stream OptionsSilent Cooling
Specifications
General Specifications
Supported Video Input: HDMI, 3G SDIVideo Output: HDMI, SDISDI Output Format: Up to 1080p/60fpsHDMI Output Format: Up to 4K60
Power
Power Input: 7.4V"16.8V DC (5.5mm x 2.1mm, center positive)Battery Compatibility: NP-F550, NP-F750, NP-F970Power Consumption: 5W average
Transmission
Latency: 1080p < 25ms, 4K < 35ms (camera latency excluded)Transmission Range: Up to 2.5km (line of sight, no interference)
Connectivity
Number of Simultaneous Connections: Supports up to 5 devices (1 wired, 4 wireless)Wireless Frequency Bands: 2.4GHz, 5GHz, 6GHz (Tri-band)Supported Mobile Devices: iPhone, iPad, Android devices
Physical
Dimensions (without antennas): 130mm x 95mm x 32mmWeight (without antennas): 320gOperating Temperature: -10C to 40C
Audio
Audio Input: HDMI embedded, SDI embedded
Other Features
Video Streams: Supports pulling 4K or 1080p streamsCooling: Intelligent fan system with adjustable modesMaterial: Aerospace-grade aluminum alloy
