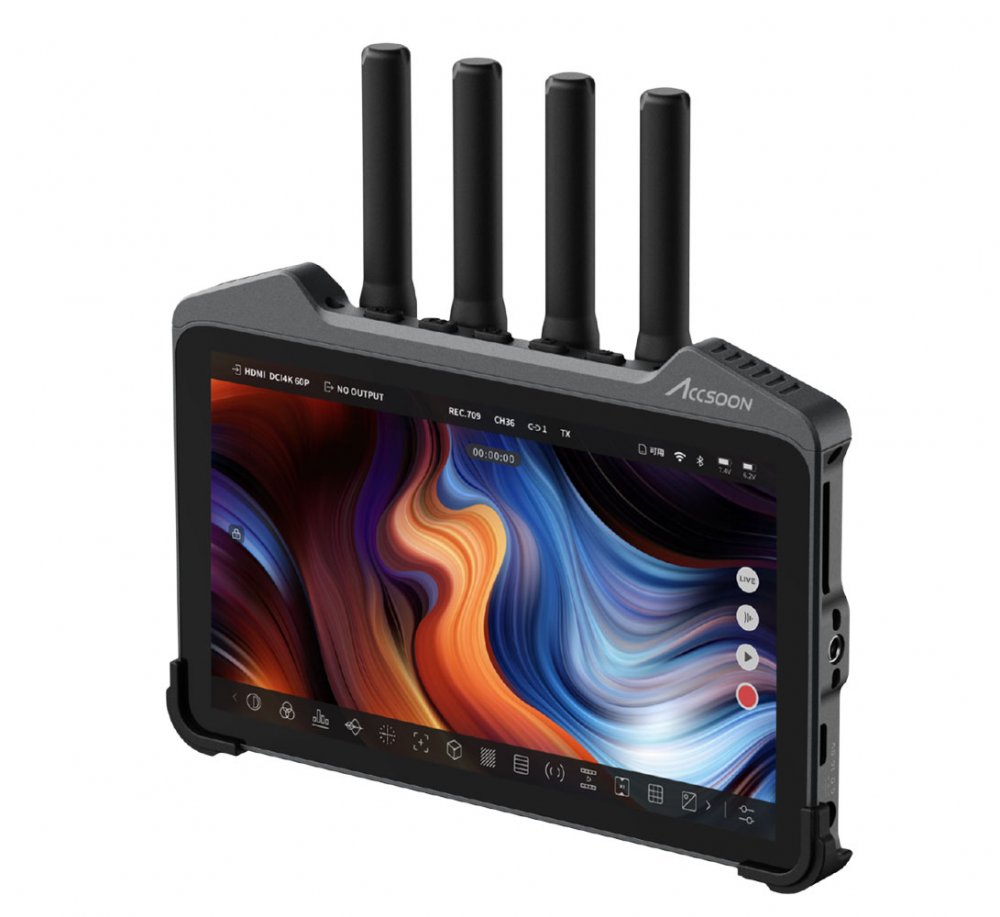

Accsoon Cineview M7 Pro
UPC/EAN #607609770480
MPN #ACS-MIT01
7in 1080p wireless monitor, 1000 nits, HDMI SDI I/O, built-in TX/RX, 4K60 via HDMI, 3D LUT, dual-band 350m range, NP-F/USB-C power, smart cooling, aluminum body
The CineView M7 Pro is the ultimate wireless production monitor, combining a professional-grade 7" display, 8K-capable processing, and integrated wireless transmission-all in a compact, rugged aluminum housing. Designed for high-end cinematography and on-set flexibility, it offers real-time monitoring, recording, and LUT application with unmatched color precision and ultra-low latency wireless transmission up to 350 meters.
Built to simplify complex workflows, the M7 Pro acts as a transmitter, receiver, and monitor in one, supporting Accsoon's patented Dual-Band wireless system for seamless connection to CineView TX/RX devices. With support for up to DCI 4K60 (HDMI), 961+ format combinations, and professional tools like waveforms, false color, and a powerful 3D LUT box, this monitor puts precise creative control at your fingertips-on any set, anywhere.
Caractéristiques
All-in-One Wireless Monitoring: Combines wireless transmitter, receiver, and professional monitor in a single device.Integrated Long-Range Wireless: Supports wireless video up to DCI 4K60 using Accsoon's dual-band technology with up to 350m range and ultra-low 60ms latency.Cinematic 7" Display: Color-accurate, fully laminated screen visible in direct sunlight with factory-calibrated precision.Advanced Color Workflow Tools: Includes real-time 3D LUT box, false color, waveform, and custom screen calibration.Smart Monitoring Platform: Powered by high-performance 8K processors and a smart OS for seamless operation.Flexible Format Support: Handles over 961 video format combinations, with SDI/HDMI cross-conversion and different frame rate outputs.Compact Yet Powerful: Cinema-grade display in a lightweight body with aerospace-grade aluminum build.Custom Recording & Playback Options: Offers flexible media workflow with recording, reviewing, and LUT burn-in features.Professional I/O & Power Options: Includes HDMI/SDI in/out, USB-C, 3.5mm audio, and support for NP-F batteries or DC input.Cool and Quiet: Features smart dual-mode cooling for efficient thermal management.
Spécifications
General Specifications
Screen size 7 inch LCDResolution 1920 x 1080 pixelsPixel density 323 PPIAspect ratio 16:9Brightness 1000 nitsContrast ratio 1000 to 1Viewing angle 176 degrees horizontal and verticalBacklight type Edge-Lit ultra-transparent LEDScreen calibration supported
Color and LUTs
LUT support 1D and 3D Cube LUTs1D LUT resolution up to 4096 points3D LUT resolution up to 127 points
Video Input
HDMI 2.0 input4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps1080p at 23.98 24 25 29.97 30 50 59.94 60 fps1080i at 50 59.94 60 fps720p at 50 59.94 60 fps3G-SDI input1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A and B1080i at 50 59.94 60 fps
Video Output
HDMI 2.0 output4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps1080p at 23.98 24 25 29.97 30 50 59.94 60 fps1080i at 50 59.94 60 fps720p at 50 59.94 60 fps3G-SDI output1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A1080i at 50 59.94 60 fps
Wireless Transmission
Transmission technology Accsoon Dual-BandWireless latency 60 msWireless range up to 350 meters
Audio
Microphone input 3.5mm TRSHeadphone output 3.5mm CTIAAudio sampling 16bit 48kHz
Power and Connectivity
DC input 6.0 to 16.8V 5.5mm x 2.1mm center positiveUSB-C power input PD3.0 9V 3A 12V 3A 15V 3AUSB-C power output 5V 2A maxBattery compatibility NP-F550 NP-F750 NP-F970
Construction and Environment
Housing Aircraft-grade aluminium alloyCooling system Active and passivePower consumption 12W to 28WOperating temperature -10 to 40 degrees CelsiusDimensions 182.2 x 120.7 x 31.5 mm (antennas excluded)Weight 494.3 g (antennas excluded)
