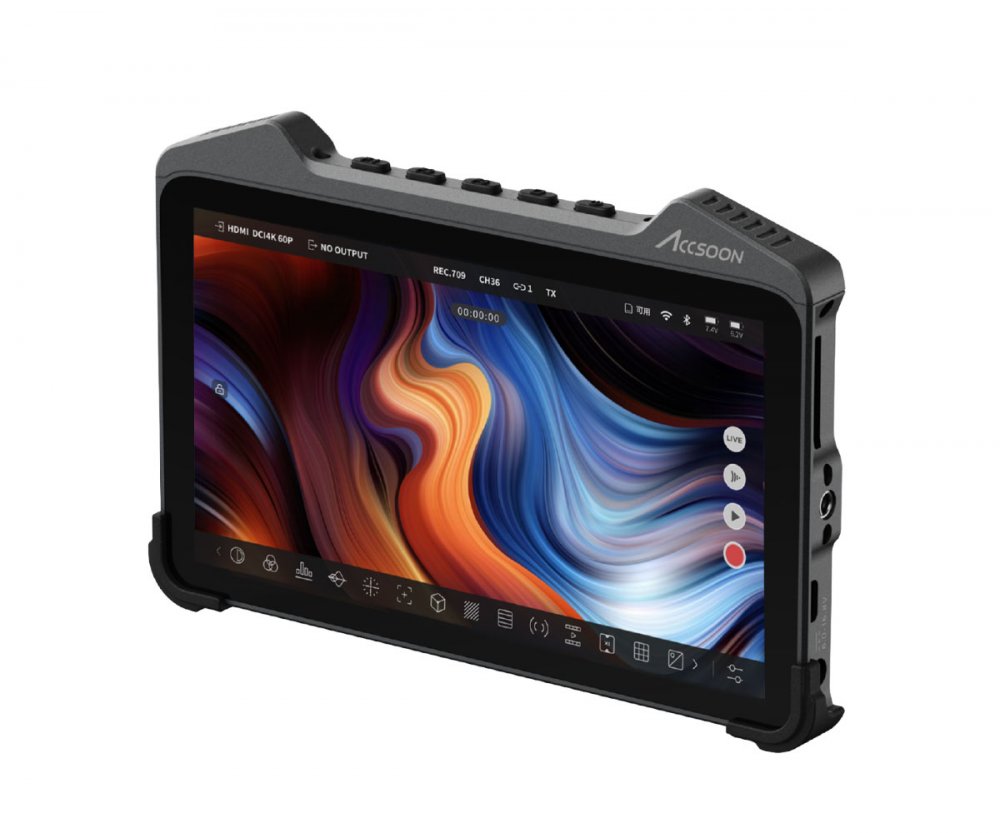

Accsoon Cineview M7
MPN #ACS-MITX1
7in 1080p display, 1000 nits brightness, HDMI SDI I/O, 4K60 input, 3D LUT, active cooling, NP-F and USB-C power, aluminum body, touch UI, LUT box
The CineView M7 redefines what a production monitor can be, combining a brilliant 7-inch cinema-grade display with advanced processing power and smart features to create a portable production center built for the modern filmmaker. With factory-calibrated color accuracy, high brightness for outdoor visibility, and support for real-time LUT application across HDMI, SDI, or wireless outputs, the M7 is engineered to deliver absolute precision and consistency on set.
Powered by 8K-capable processors and a flexible smart OS, the CineView M7 supports over 960 video format combinations, including 4K60 via HDMI and SDI/HDMI cross-conversion. Its robust aluminum alloy chassis houses a full suite of I/O ports, customizable LUT handling (1D and 3D), and seamless interaction via touchscreen or buttons. Whether used as a standalone monitor, a LUT box, or a recording hub with playback and sharing features, the M7 adapts to your workflow - from camera to post.
Caractéristiques
Stunning 7" Color-Accurate Display: Delivers precise, factory-calibrated color with excellent visibility even in sunlight.Professional LUT Support: Real-time 1D/3D LUT box functionality for color grading and consistency across devices.Format Flexibility: Handles 961+ video format combinations including 4K60 HDMI input and SDI/HDMI cross-conversion.Smart Monitoring System: Powered by high-performance 8K processors and a modern OS for responsive, intelligent operation.Cinematic Color Workflow: Supports precise color mapping, on-set monitoring, and LUT burn-in for recorded footage.Fully Customizable Recording & Playback: Offers control over captured content for professional review and sharing.Robust Input/Output Options: Equipped with HDMI, SDI, USB-C, 3.5mm mic/headphone jacks, and Bluetooth headphone support.Versatile Power Choices: Compatible with NP-F batteries, USB-C PD input, and DC power sources.Premium Build: Lightweight aircraft-grade aluminum housing with both active and passive cooling.Compact and Portable: Offers a 7" cinema-grade screen in a body sized for 5" portability.
Spécifications
General Specifications
Screen size 7 inch LCDResolution 1920 x 1080 pixelsPixel density 323 PPIAspect ratio 16:9Brightness 1000 nitsContrast ratio 1000 to 1Viewing angle 176 degrees horizontal and verticalBacklight type Edge-Lit ultra-transparent LEDScreen calibration Supported
Color and LUTs
LUT support 1D and 3D Cube LUTs1D LUT resolution up to 4096 points3D LUT resolution up to 127 points
Video Input
HDMI 2.0 input formats4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps1080p at 23.98 24 25 29.97 30 50 59.94 60 fps1080i at 50 59.94 60 fps720p at 50 59.94 60 fps3G-SDI input formats1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A and B1080i at 50 59.94 60 fps
Video Output
HDMI 2.0 output formats4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps1080p at 23.98 24 25 29.97 30 50 59.94 60 fps1080i at 50 59.94 60 fps720p at 50 59.94 60 fps3G-SDI output formats1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A1080i at 50 59.94 60 fps
Power and Connectivity
DC input 6.0 to 16.8V 5.5mm x 2.1mm center positiveUSB-C power input PD3.0 9V 3A 12V 3A 15V 3AUSB-C power output 5V 2A maxCompatible battery types NP-F550 NP-F750 NP-F970Microphone input 3.5mm TRSHeadphone output 3.5mm CTIAAudio sampling 16bit 48kHz
Mechanical and Environmental
Housing Aircraft-grade aluminium alloyCooling system Active and passivePower consumption 12W to 28WOperating temperature -10 to 40 degrees CelsiusDimensions 182.2 x 120.7 x 31.5 mmWeight 476 g
