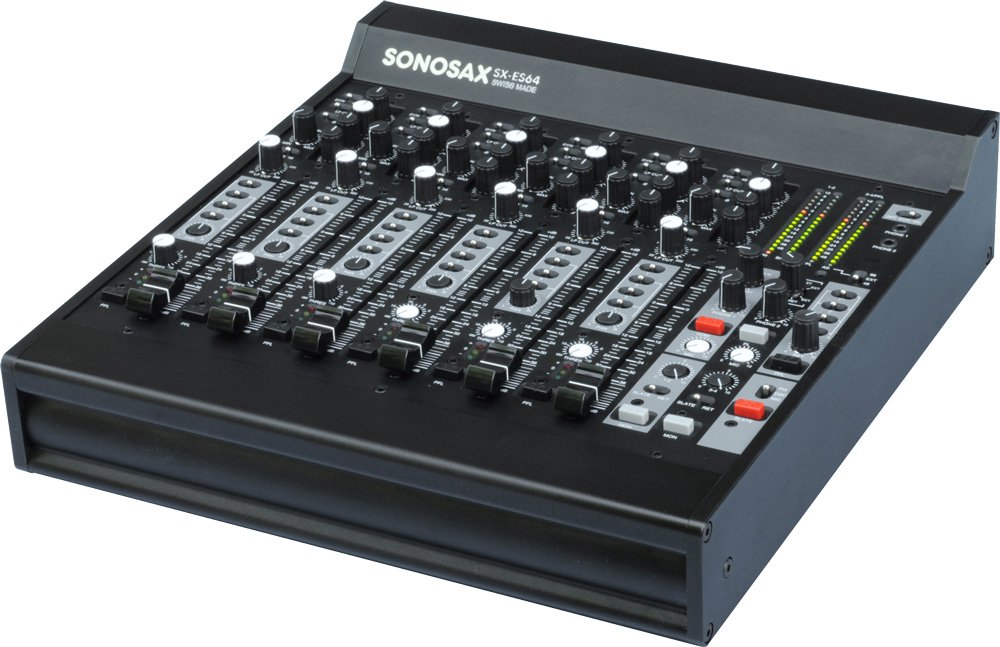

Compact and lightweight 6/8 channels mixer with 4 main mix busses. Optional 8 channels digital outputs.
The SX-ES64 and SX-ES84 offers the essential communication system for on-location recording, OB facilities, or any mobile or studio applications. Its ergonomy has been carefully designed for convenience and ease of operation. Its small size and lightweight makes it easy to carry, even as cabin luggage.
Caractéristiques
Small sized and lightweight 6 channels (ES64) or 8 channels (ES84) audio mixer with 4 groups and dual monitoring
Electronically balanced, transformer less inputs and outputs
Large audio bandwidth and high dynamic range
High quality potentiometers, faders and switches, resistant to water projection (IP45)
Ultra low noise microphone preamplifier based on semi-discrete technology
Primary passive LF-Cut (Pre-LF Cut) to protect the microphone preamplifier
48V Phantom power, phase reversal and individual limiter on each input channel
Channel's direct output configurable either Pre-EQ, Post-EQ or Post Fader
3 band semi-parametric Equalizer, available as an option
4 mix groups individually assignable Pre-Pan / Post-Pan or Pre-Fader / Post-Pan
High quality conductive plastic linear fader
LED Meter on each input for level metering, overload and limiter activity indications
4 master groups and dual monitoring section with private line for off line communication
Reference tone oscillator and integrated slate/com microphone

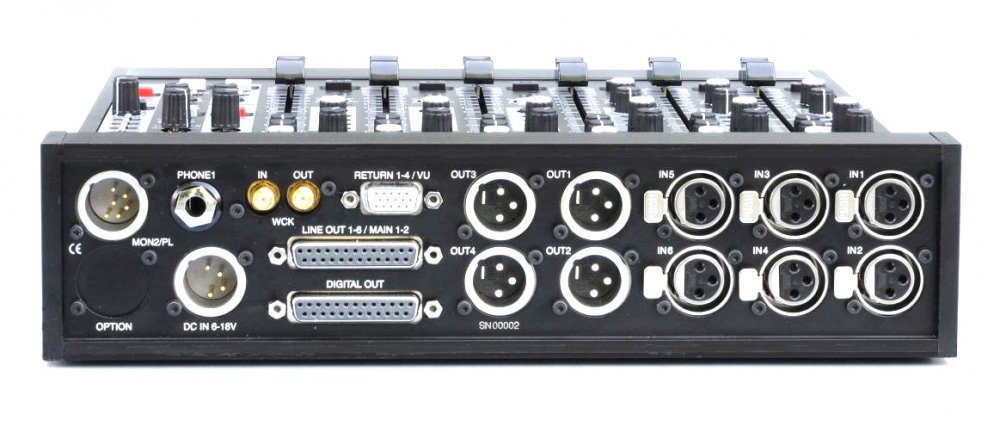

Choice of optional connectors for camera's send/return with confidence monitoring
Analogue to Digital Converter available as an option, for channel's direct outputs and main 1&2
Powered either from internal batteries or external DC voltage 6 to 18Volt
Low power consumption, lightweight and small footprint
Spécifications
APPLICATIONS
Video, TV and cinematography productions
Mobiles or stationary Post-production facilities or recording studios
OB Van, Live Broadcasting, sports events
Analogue or digital recording of acoustical music
High end installations in concert halls or theaters
Home studios
MECHANICAL
SX-ES64: W: 277mm H: 66mm D: 292mm (10.9? x 2.6? x 11.5?)
Weight: 3.55 kilos / 7,82lbs (without batteries)
SX-ES84: W: 347mm H: 66mm D: 292mm (13.7? x 2.6? x 11.5?)
Weight: 3.9 kilos / 8,6lbs (without batteries)
