Zoom UAC-232

UPC/EAN #884354028954 MPN #ZUAC232

$269.99

Be the first to write a review

Free shipping in Canada. Conditions

2-input, 2-output audio interface with 32-bit float for recording and streaming. Includes USB 3.0 Cable and Quick Tour

ELEVATE YOUR RECORDING EXPERIENCE
The ZOOM UAC-232 USB Audio Converter is the first dedicated 32-bit float audio interface , designed for musicians who demand more quality in their productions.

HIGH-QUALITY AUDIO

NO NEED TO SET GAIN
Whether you're recording in the studio or on stage, sound levels can fluctuate. The UAC-232's 32-bit float technology captures clip-free, low-noise recordings without the need to set gain.

Learn more about 32-bit float technology here.

OUR FINEST PREAMPS
Featuring the same clean, low-noise preamps used in our professional F-Series recorders, the UAC-232 guarantees high-quality recordings in any setting.

BUILT FOR CREATORS

FOR MUSIC
Whether you're recording or streaming live, with 32-bit float technology you don't have to worry about getting the ideal input gain or monitoring your levels.

FOR PODCASTS AND VOICEOVERS
For podcasters and voiceover artists, 32-bit float ensures full quality audio for the entire dynamic range of a performance. It also protects against clipping when levels are not being monitored.

MORE CONTROL
The UAC-232 Mix Control software allows you to modify I/O routing, activate loopback, and control input and monitoring levels. You can also activate Music mode to route to your DAW or Streaming mode combining all inputs into a single signal for streaming software.

LOOPBACK
The Loopback function combines the input audio with playback from your computer and routes it to your software. Perfect for adding background music to your stream or singing live with an instrumental track.

LATENCY-FREE MONITORING
Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software. Mix Control allows you to adjust volume and pan for your direct monitor feed.

THE CONNECTIONS YOU NEED

INPUTS
The UAC-232 USB Audio Converter features two XLR/TRS combo inputs for mic or line level input with +48V phantom power available for condenser microphones. Use the Guitar/Bass button to activate Hi-Z for recording guitar directly.

POWERFUL HEADPHONE OUTPUT
Monitor louder and clearer with the 100 milliwatt headphone output. Enough power to drive the most demanding headphones with no distortion.

MAIN OUTPUTS
To listen on studio monitors, the UAC-232 includes two TRS main outputs with volume control.

MIDI
The MIDI in/out allows you to connect to external MIDI gear such as drum machines, synths and keyboards.

COMPACT DESIGN
The UAC-232 Audio Converter can be placed anywhere. Set it up vertically, horizontally or even mount it to a mic stand with the included hook-and-loop straps.

COMPATIBILITY
Connect the UAC-232 via USB when recording and streaming on PC and Mac with software like Cubase, Pro Tools, OBS and more.

Record and stream in 24-bit with iOS devices using Apps such as Garage Band, YouTube, and instagram.?
*Bus powered with PC, Mac and use external power when working with a lightning enable iOS device

RECORD AND STREAM WITH 32-BIT FLOAT

Features

Dual AD circuitry with 32-bit float recording technology

High-quality mic preamps equivalent to those of the F6

2x XLR/TRS combo inputs / Headphone output / 2x TRS outputs

Up to 192 kHz sample rate

Compatible with Windows, Mac, and iOS devices (Android not supported)

Mix Control Software mixer for Windows, Mac, and iOS devices

MUSIC and STREAMING modes available via the software to optimize I/O

Loopback available via the Mix Control software

Vertical or horizontal use

MIDI IN/OUT for external MIDI equipment

High-power headphone outputs (100 mW)

Bus-powered operation

Specifications

General Specifications

Product Type: USB Audio Interface

Model: Zoom UAC-232

Channels: 2 inputs / 2 outputs

Bit Depth: 32-bit float

Sample Rate: Up to 192 kHz

Compatibility: Windows, macOS, iOS

Power: Bus-powered via USB; external power required for Lightning-enabled iOS devices

Inputs

2 x XLR/TRS combo inputs (mic/line/Hi-Z)

Phantom Power: +48V, switchable

Hi-Z Support: Yes, for direct guitar/bass input

Preamps: Low-noise, same as Zoom F-Series recorders

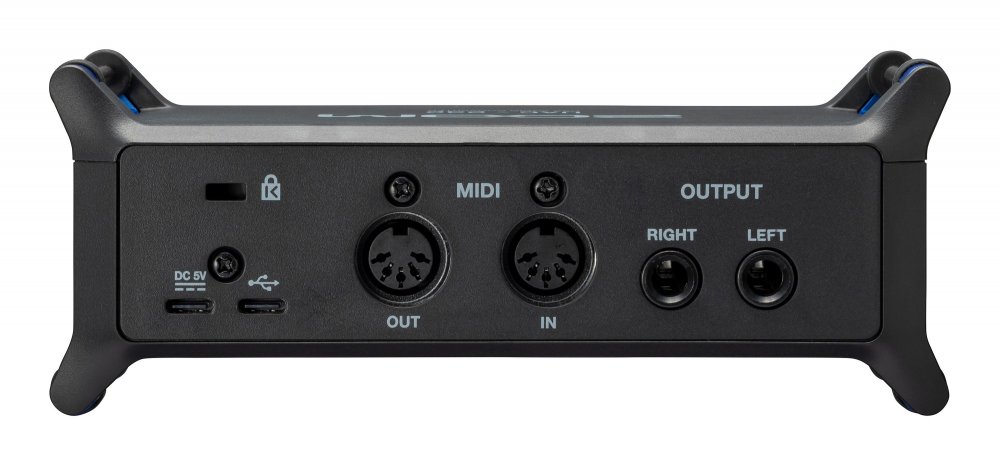

Outputs

2 x 1/4" TRS balanced line outputs

1 x 1/8" (3.5 mm) stereo headphone output

Headphone Output Power: 100 mW

MIDI

MIDI In: 1 x 5-pin DIN

MIDI Out: 1 x 5-pin DIN

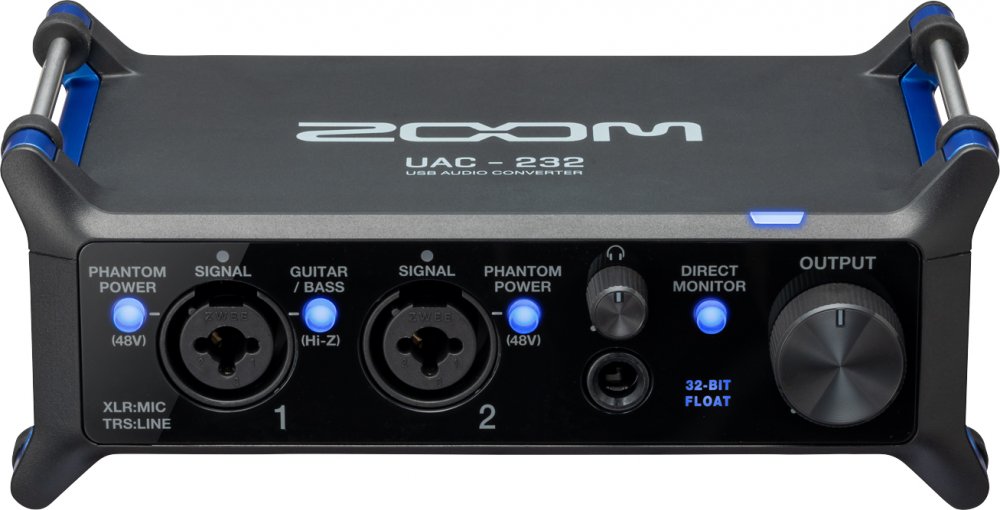

Controls and Indicators

Output Volume Knob: Controls main output level

Headphone Volume Knob: Controls headphone output level

Direct Monitor Switch: Enables zero-latency monitoring

32-Bit Float Indicator: Illuminates when operating in 32-bit float mode

Signal Indicators: Light when signals are being input

Software

Zoom UAC-232 Mix Control: Software for I/O routing, loopback, input, and monitoring level control

Modes: Music mode for DAW routing; Streaming mode combines all inputs into a single signal for streaming software

Loopback Function: Combines input audio with playback from the computer for streaming

Physical

Dimensions: 164 x 105 x 65 mm

Weight: 355 g

Mounting: Can be placed vertically, horizontally, or mounted to a mic stand with included flat cable straps

Included Accessories

USB-C Cable

Flat Cable Fasteners (x2)

Quick Tour Guide
