Zoom R12
UPC/EAN #884354027568
MPN #ZR12
8-track, multi track recorder with touchscreenediting. Includes AD-17 AC adapter and USB cable
LIVE TO MAKE MUSIC
The R12 is made for musicians who live to make music. And they want the freedom to make music wherever they go.
ALL YOU NEED ON-BOARD
Compact and mobile, you can record, edit, and mix songs without a computer.
Use the R12's full-color LCD touchscreen to easily cut, copy, loop, and edit your tracks.
AMAZING SOUND
The R12 has super-clean preamps, and you'll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs.
FULLY LOADED
The R12 includes a send effects channel offering reverb, chorus and delay with a dedicated effects return fader. For advanced tones, you can use presets and effects from Zooms' Guitar Lab. The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2.
PLAYBACK. PLAY ALONG.
Use Sequence Play to create a playlist of your projects. Then use them as backing tracks, whether you're playing live or rehearsing a set.
IT STARTS WITH A GROOVE
With 150 preloaded drum loops in a variety of patterns and genres, the R12 provides a versatile rhythm section for any project.
IMPORT AUDIO FILES
Add additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.
TAKE IT EVERYWHERE
The R12 provides up to 5 hours on four AA batteries allowing you to bring your production anywhere. Additionally, you can power the R12 with the optional AD-17 adapter, or a USB battery.
FROM HEADPHONES TO MONITORS
The R12 includes an 1/8" stereo headphone jack as well as dedicated 1/4" monitor outputs.
EXPANDED CONTROL
Musicians can also plug in their iOS devices to use the optional R12 Control App.
** R12 Control App available in late 2022.
INTERFACE + CONTROL SURFACE
Use the R12 as a stereo audio interface with your favorite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software during production.
ATTENTION TO DETAIL

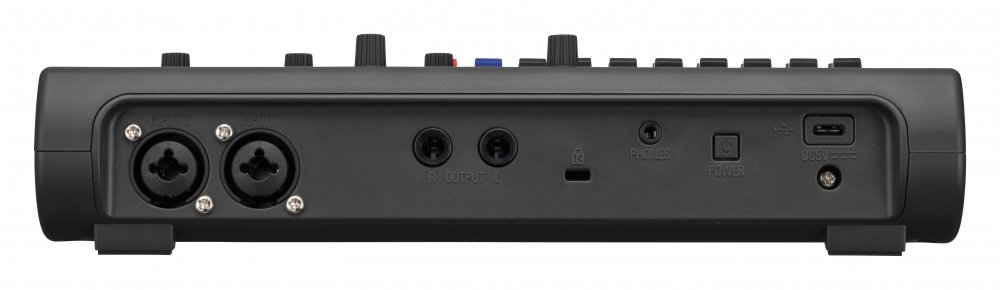

CONNECTIONS FOR EVERYTHING - Connect microphones, instruments or line level devices like keyboards, mixing boards and more.HI-Z - Input 1 on the R12 has a Hi-Z switch, allowing you to plug your guitar directly into the recorder.PHANTOM POWER - Both inputs on the R12 offer 48V Phantom Power for condenser microphones.
STAY IN TIME. EVERY TIME.
Activate the fully customizable click track with the press of a button. Use the click balance section to blend the metronome with your playback audio and route to your headphones and/or the main outputs.
ADD SOME SYNTH
The R12 has 18 FM synth instruments built in that can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen.
Specifications
INPUTS
MIC/LINE (MONO)
Connectors 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT?Input gain +6 ~ +50 dBInput impedance XLR: 3.9 k? TRS: 3.9 k?/1 M? (when Hi-Z ON, INPUT 1 only)Phantom power +48 V (switchable separately for INPUTS 1 and 2)Equivalent input noise "121 dBu or less (IHF-A) at +50 dB/150 ? inputFrequency response '1.0/+0.5 dB: 20 Hz " 20 kHz
OUTPUTS
MASTER OUT
Connectors 2 TRS phone jacks (balanced)Maximum output level +14 dBuOutput impedance 200 ?PHONES
Connectors 1 stereo 3.5mm mini jackMaximum output level 45 mW + 45 mW (into 32 ? load)Output impedance 10 ?
RECORDER
Maximum simultaneous recording tracks - 2Maximum simultaneous playback tracks - 8Recording format - 44.1kHz, 16/24-bit, mono/stereo WAVRecording media - 4-32GB cards compatible with the SDHC specification - 64-1TB cards compatible with the SDXC specification
TRACK SETTINGS
EQ
High: 10 kHz, ±12 dB, shelvingMiddle: 2.5 kHz, ±12 dB, peakingLow: 100 Hz, ±12 dB, shelving
Pan
L100 " R100
EFFECTS
Input Dynamics
Comp/Limiter/Gate
Patch memory effects
3 types can be used simultaneously50 patch memoriesGuitar Lab supportedCan be assigned and used as an insert (input) or send effect
Dedicated send effects
10 types of spatial effects
TUNER
Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
CLICK (METRONOME)
Time signatures - 3/4, 4/4, 6/8Tempo range - 40.0 - 250.0 BPMTime signatures - 3/4, 4/4, 6/8
RHYTHM LOOPS
Sound source format - PCMNumber of loops - 150
SYNTH
Sound source format - FMPolyphony - 8Number of sound types 18 (and a PCM drum kit)
DISPLAY
2.4" (320-240) full-color touchscreen LCD
USB
CONNECTOR
USB Type-CNote: Use a USB cable that supports data transfer. USB bus power is supported.
AUDIO INTERFACE FUNCTION
2-in/2-out or 2-in/2-out (iPad)
USB 2.0 Full Speed44.1 kHz, 16/24-bit
2-in/4-out
USB 2.0 High Speed44.1 kHz, 16/24-bit
MASS STORAGE FUNCTION
Device
USB 2.0 High Speed (5 V/200 mA power supplied when host)
GUITAR LAB CONNECTION
USB 1.1 Full Speed
DAW CONNECTION (CONTROL SURFACE)
USB 1.1 Full Speed
MASS STORAGE FUNCTION
Host
USB 2.0 High Speed (5V/200 mA power supplied)
USB MIDI KEYBOARD CONNECTION
USB 1.1 Full Speed (5 V/200 mA power supplied)
POWER
Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)AC adapter: ZOOM AD-17 (5V/1.0A)
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
During playback with +48V off and 32? headphone loadAlkaline batteries: about 5 hoursNiMH batteries (1900 mAh): about 5 hoursLithium batteries: about 11 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
POWER CONSUMPTION
5 W maximum
DIMENSIONS
256 mm (W) - 158 mm (D) - 61 mm (H)
WEIGHT (including batteries)
827 g
NOTE: 0 DBU = 0.775 VRMS
