Zoom LiveTrak L-20R

UPC/EAN #4515260020911 MPN #ZL20R

$999.99

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Rack-mountable digital mixer, 16 mono and 2 stereo channels, wireless control, USB audio interface connectivity

With wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R offers a complete solution for any venue.

Features

20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity

22-track simultaneous recording, 20-track playback

22-in/4-out USB audio interface connectivity

Records up to 24bit/96kHz audio to SD card

Built-in compression control (Channels 1-16)

Main outputs plus 6 customizable monitor outputs

Dedicated headphone output for sound engineer

Instantly recall up to 9 different scene settings including monitor mixes, EQ settings, effects, and more

20 built-in chorus, delay and reverb effects with adjustable parameters

Connect our L-20 Control iPad app via Bluetooth for full control of your mix.

Connect 6 additional iPads via WiFi for control of 6 customizable monitor mixes.

Specifications

General Specifications:

Rack-mountable digital mixer and recorder

Dimensions: 17.5" (W) - 15.25" (D) - 3.25" (H)

Weight: 8 lbs

Power consumption: 24 W maximum

Power supply: AD-19 AC adapter (DC12V 2A)

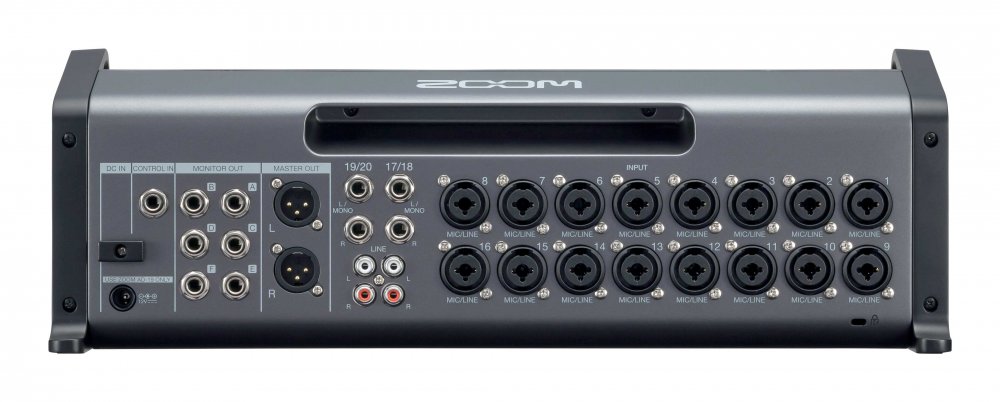

Inputs:

16 mono mic/line inputs (XLR/TRS combo jacks)

2 stereo line inputs (TS phone/RCA pin jacks)

Hi-Z inputs on channels 1"2

Phantom power (+48V) available on all mono inputs

Outputs:

Master Out: 2 x XLR jacks (balanced)

Monitor Out A"F: 6 x TRS phone jacks (balanced/unbalanced)

Phones: 1 x standard stereo phone jack

Recording Capabilities:

22-track simultaneous recording (20 individual channels + stereo mix)

20-track playback

Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

Supports SDHC cards (4 GB " 32 GB) and SDXC cards (64 GB " 512 GB)

Audio Interface:

22-in/4-out USB audio interface

Compatible with Windows 7 SP1 or later, 8.1, 10 (32-bit/64-bit)

Compatible with macOS 10.11 or later

Class-compliant mode for iOS compatibility

Mixer Features:

3-band EQ (High: 10 kHz, Mid: 100 Hz " 8 kHz, Low: 100 Hz)

Low-cut filter (40"600 Hz, 12 dB/oct)

Built-in effects: 20 types including reverb, delay, and chorus

Two EFX send busses

Scene saving function (up to 9 scenes)

Wireless control via iPad app

Preamps:

16 high-performance mic preamps

Equivalent input noise: '128 dB EIN (IHF-A) at +60 dB/150? input

Maximum input gain: +60 dB

Compatibility:

Compatible with Remote Mixer app for iPad

Supports connection with iPads running iPadOS 13.6 or later
