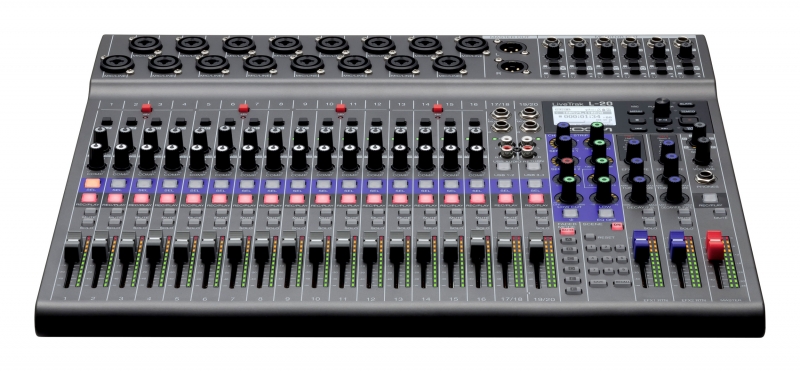

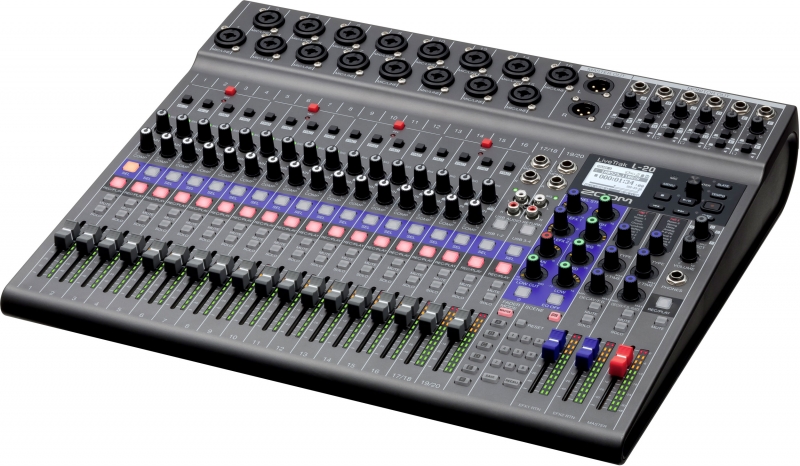

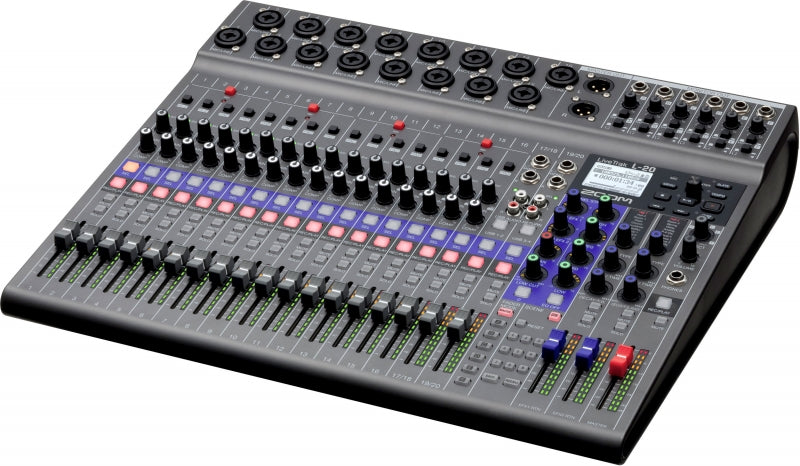

Zoom LiveTrak L-20
UPC/EAN #4515260019854
MPN #ZL20
Digital console to mix, monitor and record complexproductions. 20 discrete audio channels and six individual custom monitor mixes. Includes AD-19 12V adapter and USB 2.0 cable
With 20 discrete audio channels and six individual custom monitor mixes, it's built for bigger, bolder arrangements.
20 Inputs for Bigger Sound
The LiveTrak L-20 is designed to mix bigger. It features 20 inputs
(16 mono mic/line inputs and two stereo inputs), all with independent
3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.
22 Tracks of Recording
Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.
*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.
Create Six Custom Monitor Mixes
With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.
And One for the House
The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians' satisfaction.
Wireless Mixing
The LiveTrak L-20 offers wireless control* via a free iOS mobile app featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.
Features
20 discrete channels (16 mono plus 2 stereo) with XLR or ΒΌ-inch connectivity22-track simultaneous recording, 20-track playback22-in/4-out USB audio interface connectivityRecords up to 24bit/96kHz audio to SD card48V phantom powerHi-Z connectivity (channels 1-2)26dB pad (channels 3-16)Built-in compression control (Channels 1-16)Solo buttons for individual channelsVariable frequency low-cut controlMain outputs plus 6 customizable monitor outputsDedicated headphone output for sound engineerScene saving function, up to 9 scenes saved at a time20 built-in chorus, delay and reverb effects with adjustable parametersTwo effect bussesBuilt-in slate micClass-compliant mode (for iOS compatibility)Compatible with Remote Mixer app for iPadAutomatic recording starting/stopping capabilityPre-record functionImport/export projects with USB 2.0 host portCompatible functions for ZOOM FS01 footswitchAutomatic power-save function
Specifications
General Specifications:
20-channel digital mixer and multitrack recorderDimensions: 445 mm (W) - 388.4 mm (D) - 82.6 mm (H)Weight: 3.7 kgPower consumption: 24 W maximumPower supply: AD-19 AC adapter (12V DC, 2A)
Inputs:
16 mono mic/line inputs (XLR/TRS combo jacks)2 stereo line inputs (TS phone/RCA pin jacks)Hi-Z inputs on channels 1"2Phantom power (+48V) available on all mono inputs
Outputs:
Master Out: 2 x XLR jacks (balanced)Monitor Out A"F: 6 x TRS phone jacks (balanced)Phones: 1 x standard stereo phone jack
Recording Capabilities:
22-track simultaneous recording (20 individual channels plus stereo mix)20-track playbackRecording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereoSupports SDHC cards (4 GB to 32 GB) and SDXC cards (64 GB to 512 GB)
Audio Interface:
22-in/4-out USB audio interfaceCompatible with Windows 7 SP1 or later, 8.1, 10 (32-bit/64-bit)Compatible with macOS 10.11 or laterClass-compliant mode for iOS compatibility
Mixer Features:
3-band mid-parametric EQ on each channelLow-cut filter (40 to 600 Hz, 12 dB/oct)Built-in effects: 20 types including reverb, delay, and chorusTwo EFX send bussesScene saving function (up to 9 scenes)Wireless control via iOS mobile app (requires optional Bluetooth adapter)
Preamps:
16 high-performance mic preampsEquivalent input noise: '128 dBu EINMaximum input gain: +60 dB
Compatibility:
Compatible with Remote Mixer app for iPadSupports connection with iPads running iPadOS 13 or later
