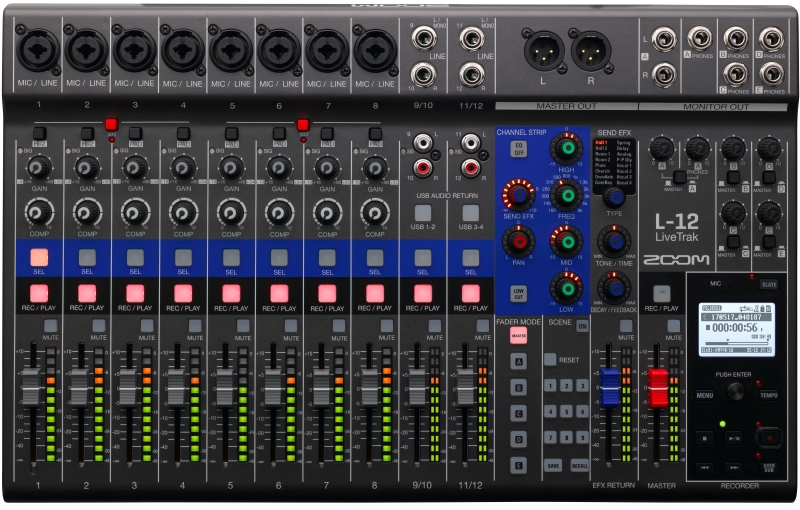

Zoom LiveTrak L-12
UPC/EAN #4515260018062
MPN #ZL12
Digital console to mix, monitor and record complexproductions. 12 discrete audio channels and five individual custom monitor mixes. Includes AD-19 12Vadapter and USB 2.0 cable
With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It's the only digital console that lets you mix your live performance and record up to 12 discrete channels - all while providing five individual custom headphone mixes.
The L-12 is equipped with the quietest and most advanced mic preamps Zoom has ever offered. Musicians and podcasters can capture high-quality audio up to 24-bit/96 kHz WAV format. They can also store projects directly to an SD card to remix on board or transfer them to a DAW for further editing.
A convenient monitor out design can send up to five individual mixes to headphones or in-ear monitors, with no need for a monitor amp. Each performer can dial in their mix independently for optimal workflow during a performance or recording session and save it for later use.
Analog-style controls make it easy to adjust parameters with exacting precision. There's also a 3-band mid-parametric EQ for each channel as well as 16 built-in send effects.
The L-12 is also equipped with nine different scenes where users can save their custom mixer settings for automatic recall with the push of a button. Each scene saves fader positions as well as EQ, pan, and mute settings.
The L-12 also functions as a full-featured digital audio interface for your computer or iOS device. Its simple setup lets musicians and podcasters record and stream live shows. With the L-12's 14-in/4-out USB connection, DAW output signal can be assigned to an L-12 stereo channel and sent to the master out,
allowing users to play backing tracks while mixing and recordinghe L-12 is also equipped with nine different scenes where users can save their custom mixer settings for automatic recall with the push of a button. Each scene saves fader positions as well as EQ, pan, and mute settings.
The L-12 also functions as a full-featured digital audio interface for your computer or iOS device. Its simple setup lets musicians and podcasters record and stream live shows. With the L-12's 14-in/4-out USB connection, DAW output signal can be assigned to an L-12 stereo channel and sent to the master out, allowing users to play backing tracks while mixing and recording.
Effortless Live Mixing
LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor.
With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive
mixing.
Record Everything, Remix Anywhere
LiveTrak lets you record 12 tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Mix and overdub your finished project on LiveTrak, or transfer the discrete tracks to your favorite DAW for further mixing and editing.
Five Custom Monitoring Mixes
Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.
Features
Live digital mixer that records up to 12 discrete channels, plus a stereo mix. Perfect for live sets, rehearsals, and podcasting.Records directly to an SD card, so you can overdub, mix, and bounce your finished track or transfer your discrete tracks to your favorite DAW for mixing.9 Scene Slots for saving mixes5 Sub mixes with headphone outs for recording sessions, rehearsals and live monitorsBundled with Ableton Live 9 Lite software
Specifications
General Specifications:
12-channel digital mixer and multitrack recorderDimensions: 445 mm (W) - 282 mm (D) - 70.5 mm (H)Weight: 2.53 kgPower supply: AD-19 AC adapter (12V DC, 2A)
Inputs:
8 mono channels with XLR/TRS combo jacks2 stereo channels with TRS phone and RCA jacksHi-Z inputs on channels 1"2Phantom power (+48V) available on channels 1"4 and 5"8
Outputs:
Master Out: 2 x XLR jacks (balanced)Monitor Out A: 2 x TRS phone jacksMonitor Out A"E: 5 x TRS phone jacks (headphones)
Recording Capabilities:
12-track simultaneous recording12-track playbackRecording format: WAV 44.1/48/96 kHz, 16/24-bitSupports SDHC cards (4 GB to 32 GB) and SDXC cards (64 GB to 512 GB)
Audio Interface:
14-in/4-out USB audio interfaceCompatible with Windows 7 SP1 or later, 8.1, 10 (32-bit/64-bit)Compatible with macOS 10.11 or laterClass-compliant mode for iOS compatibility
Mixer Features:
3-band mid-parametric EQ on each channelLow-cut filter (75 Hz, 12 dB/oct)16 built-in send effects including reverb and delayOne EFX send busScene saving function (up to 9 scenes)Built-in slate mic and metronome
Preamps:
8 high-performance mic preampsEquivalent input noise: '128 dBu EINMaximum input gain: +60 dB
Compatibility:
Compatible with major DAWs and audio softwareSupports connection with iOS devices via Apple Lightning to USB Camera Adapter
