Zoom F1-LP
UPC/EAN #4515260018727
MPN #ZF1LP

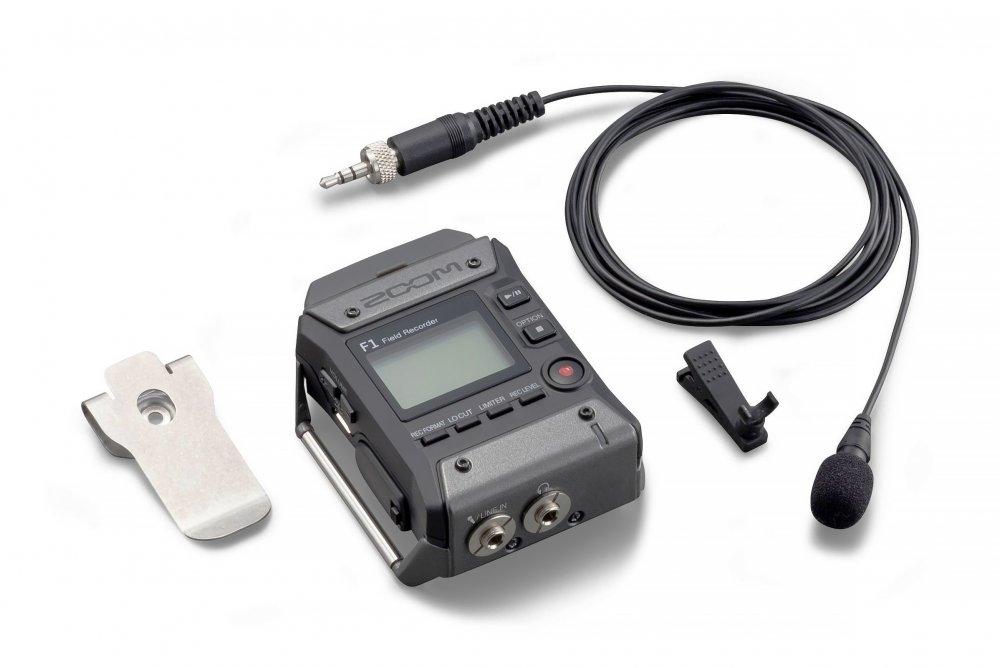

2-Channel audio recorder with lavalier microphone,mic clip, foam wind screen, belt clip

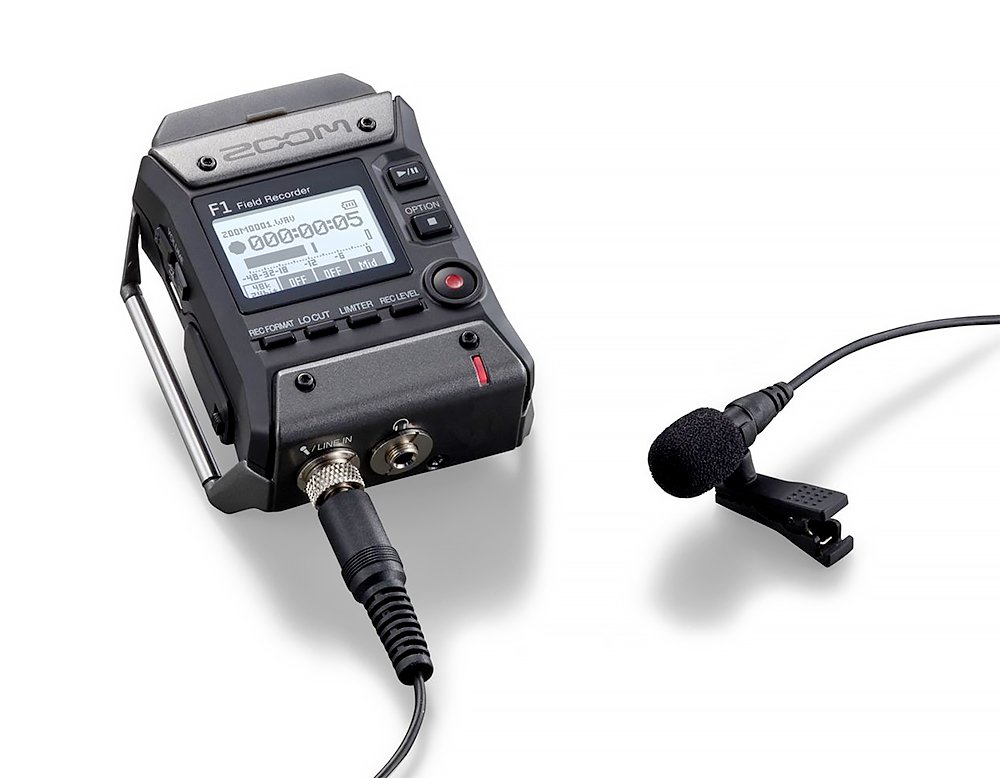

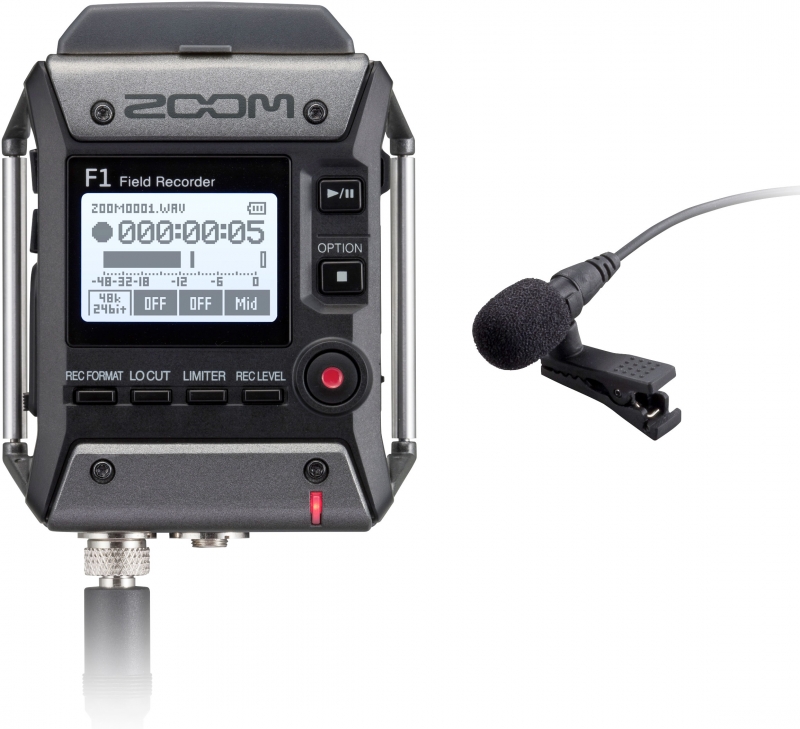

The Zoom F1-LP is a compact field recorder paired with the LMF-1 lavalier microphone, designed to capture high-quality audio in various settings. Its low-profile design allows for easy attachment to belts, waistbands, or pockets, making it ideal for interviews, weddings, and on-location shoots. By recording directly to a microSD card, it eliminates interference often associated with wireless systems, ensuring clear and reliable audio.
The F1-LP supports high-resolution audio recording up to 24-bit/96 kHz, providing professional-grade sound. Its user-friendly interface features one-touch controls and a monochromatic LCD display for easy operation, even in bright conditions. Additional functionalities include an onboard limiter and auto-level control to prevent distortion, as well as a Rec Hold function to avoid accidental button presses during recording. The device can be powered by two AAA batteries or an optional AC adapter, offering flexibility for extended use.
Features
Two-channel audio recorderCompatible with Zoom microphone capsulesSupports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formatsOne-touch button controls1.25" monochrome LCD displayRec Hold function to avoid accidental operation of buttonsStereo " Mic/Line In mini phone jack with Plug-in power (2.5V)Stereo " Phone/Line Output jack with dedicated volume controlBuilt in limiter and auto level control to avoid clippingPre-Record functionTone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cableSound marker function that outputs quick tone to make syncing audio and video easyRecords directly to micro SD and SDHC cards up to 32 GBMicro USB port for data exchange to and from computer and use as an audio interface with computer or iOS deviceRuns on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)Up to 10 hours of operation with alkaline batteries (when using lavalier)
*Camera not included
Specifications
General Specifications:
Two-channel audio recorderCompatible with Zoom microphone capsulesSupports up to 24-bit/96 kHz audio in BWF-compliant WAV or various MP3 formatsOne-touch button controls1.25" monochrome LCD display"Rec Hold" function to prevent accidental operationRecords directly to microSD/microSDHC cards up to 32 GBMicro USB port for data exchange and use as an audio interface with computer or iOS devicePowered by 2 AAA batteries (alkaline, NiMH, or lithium) or AC adapter (Zoom AD-17)Up to 10 hours of operation with alkaline batteries (using lavalier mic)
Recording Specifications:
WAV formats: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bitMP3 formats: 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps (mono/stereo)ID3v1 tags supported
Input/Output Specifications:
MIC IN: Zoom mic capsule inputMono shotgun mic (SGH-6):Directionality: Super cardioid (3 directional mic units)Sensitivity: '39 dB/1 Pa at 1 kHzMaximum sound pressure input: 122 dB SPLMIC/LINE IN:Connector: 3.5 mm stereo mini (with screw lock)Supports plug-in power (2.5 V)Input gain: '12 dB to +36 dBPHONE OUT:Connector: 3.5 mm stereo mini (with screw lock)USB:microUSB:Mass storage operation: USB 2.0 High SpeedAudio interface operation: USB class compliant 44.1 kHz/16-bit, 48 kHz/16-bit, 2-in/2-outTransfer method: asynchronous
Power Specifications:
2 AAA batteries (alkaline, NiMH, or lithium)AC adapter (Zoom AD-17): DC 5V/1ARecording time using batteries with SGH-6 mono shotgun mic capsule (48 kHz/24-bit, mono):Alkaline batteries: approximately 6.5 hoursNiMH batteries (750 mAh): approximately 6 hoursLithium batteries: approximately 11 hours
Physical Specifications:
Dimensions: 64 mm (W) x 79.8 mm (D) x 37.5 mm (H)Weight (without batteries): 120 g
