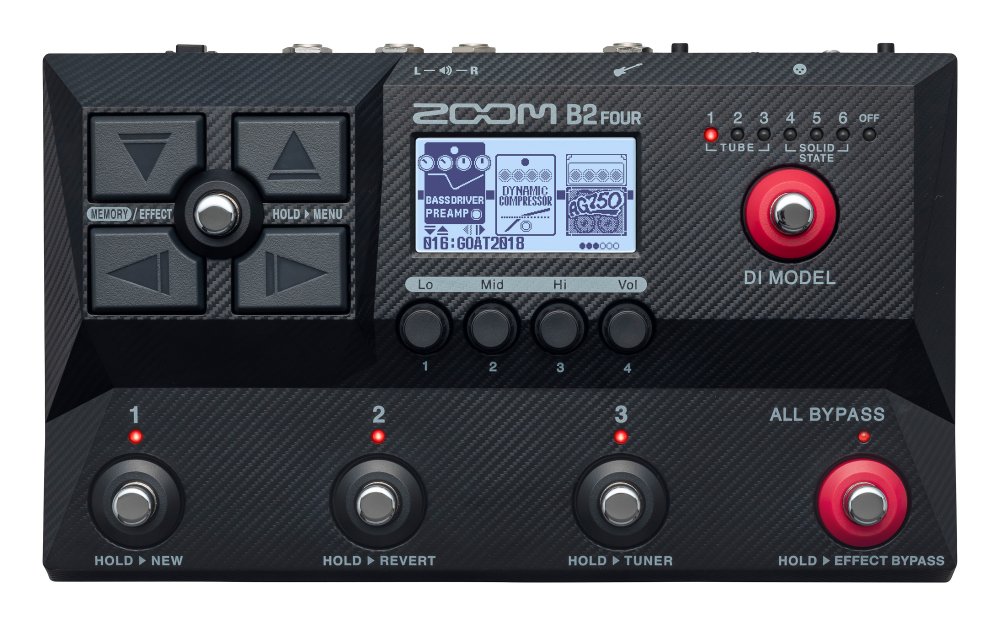

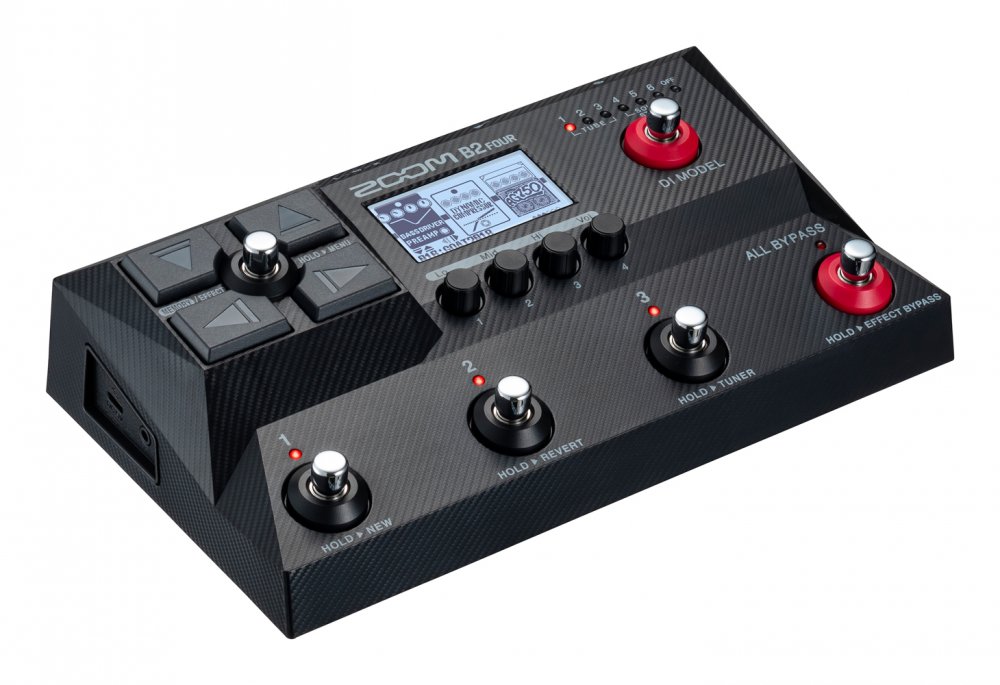

Zoom B2 Four
UPC/EAN #884354028138
MPN #ZB2FOUR
Amp and effects emulator with multi-layer IRs and six DI models
UNLEASH YOUR BASS
Introducing the B2 FOUR Amp and Effects Emulator, powered with Zoom's Multi-Layer IR technology and 6 iconic DI models. It's never been easier to craft the perfect low-end tone.
JAM PACKED WITH EFFECTS
Build patches from 104 effects, in cluding models of famous boutique effects and preamps. Mix and match up to 5 effects and amps simultaneously to build your own custom patches.
DESIGNED EXCLUSIVELY FOR BASS
BUILT FOR LIVE PERFORMANCE
When you need to plug directly into the house PA, the B2 FOUR has you covered. It features
six DI models that recreate the tone of world-class direct boxes:
Tube 1 for rich harmonics and thick low frequencies.
Tube 2 for a clear attack and tight low freque
ncies.
Tube 3 for a clear and glossy sound.
Solid State 1 for moderate compression and sharp tones.
Solid State 2 for a clear tone and little distortion.
Solid State 3 for elevated mids and low treble to replicate the Motown sound.
RICH AMP AND CABINET MODELS
Each amp model is built with Zoom's innovative Multi-Layer IR's, to recreate the tonal characteristics of playing through classic amps and cabinets. The impulse responses were captured from cabinets at 3 different levels and are activated based on the volume of your bass.
HISTORIC BASS SOUNDS
Preloaded with 250 presets, these patches are designed to give bassists the ability to recreate the sound of popular songs from the 50's to today.
NAVIGATE AND CREATE
The 4 rotary encoders allow for quick adjustments to effects parameters as well as output settings. The cross key navigation buttons help you control the pedal with ease.
LOOP AND GROOVE
Jam and rehearse with B2 FOUR. The 60-second built-in looper allows you to build grooves, while the 68 beats from the on-board rhythm machine are the perfect companion for practice.

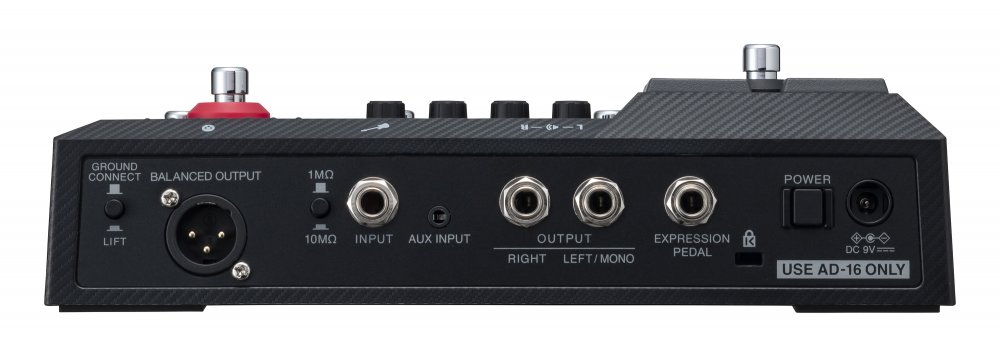

INPUT AND OUTPUT OPTIONS
A balanced output helps you connect directly to a PA or interface, while the stereo outputs can connect to an amp.
The instrument input has a switch to change the impedance from 1M to 10M ohms, giving you a cleaner tone for upright basses equipped with piezo pickups.
USB CONNECTIVITY
AUDIO INTERFACE
Use as a 2-in/ 2-out audio interface to connect the B2 FOUR to a computer or smartphone with your favorite effects and amp models.
HANDY GUITAR LAB FOR B2 FOUR
With an expanding library of patches and effects, bassists can continue to expand their sound with the Handy Guitar Lap for B2 FOUR app (for iOS), available to purchase on the Apple AppStore.
LEGENDARY ZOOM SOUND
The B2 FOUR features classic and originally designed amp, preamp, and effect models.
AMP MODELS
Sun CB
Features clean bass and bright high frequencies.
Monotone
B2 FOUR Web Copy.docx
A solid-state combo amp perfect for jazz, featuring a round low-mid range with a calm overall tone.
PREAMPS
Clear Drive
This original ZOOM Clear DRV preamp uses a linear phase filter in the distortion path. As a result, phase interference is eliminated during dry mixing, providing a clear drive.
Super Low Preamp
A ZOOM original preamp for super low sound. Using "missing fundamental" acoustic science,
SpLoPre is equipped with a bass enhancer, which emphasizes the low end of every note. With
a Lo EQ and a negative one octave sound, a super low-end tone is produced.
Djent Preamp
An original ZOOM preamp recommended for Djent sounds. This preamp combines an
undistorted low-end with a strongly distorted high-end to provide a crisp, intense distortion even
with a down-tuned 5-string bass.
1073 Preamp
A thick, warm sound of a vintage mic preamp with transformer distortion.
Solid Preamp
Modeled after a console's solid state mic preamp, the SolidPre delivers tight sounding harmonics with the ultra-low frequencies cut out.
EFFECTS
Bass Analog Octave ZOOM's original octaver using an algorithm based on the operating principle of analog octavers.
Bass Standard Synth
ZOOM's original bass synthesizer sound with adjustable filtering detail.
Bass Synth Talk
This effect produces a synthesizer sound similar to a talki
ng modulator.
Specifications
Maximum number of simultaneous effects: 5
User patch memories: 300
A/D conversion: 24-bit 128- oversampling
D/A conversion: 24-bit 128- oversampling
Signal processing: 32-bit
Display: 256-128 dot-matrix LCD
INPUT
Input
Standard mono phone jack
Rated input level: '20 dBu
Input impedance (line): 1 or 10 M? (switchable)
AUX INPUT
Stereo mini jack
Rated input level: '10 dBu
Input impedance (line): 10 k?
OUTPUTS
LEFT/RIGHT Standard mono phone jacks
Maximum output level: +11.4 dBu (when output
impedance 10 k? or higher)
BALANCED OUTPUT:
XLR jack
Impedance: 100 ? (HOT-GND, COLD-GND)/200 ? (HOT-COLD)
GND LIFT (switchable)
PHONES: Stereo mini jack
Maximum output power: 33 mW + 33 mW (into 32? load)
Input S/N: 124 dB
Noise Floor (residual noise)
LEFT/RIGHT "96.0 dBu
BALANCED OUTPUT "100.0 dBu
PHONES "96.0 dBu
Control input: FP02M input
Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
USB
USB 2.0 Type-C port (use cable that supports Type-C)
Handy Guitar Lab: USB 1.1 Full Speed
Audio interface: USB 2.0 Full Speed, 32-bit, 2-in/2-out
? Use a USB cable that supports data transfer. USB bus power is supported.
Dimensions: 146 mm (D) - 249 mm (W) - 72 mm (H)
Weight: 906 g
Note: 0 dBu = 0.775 V
