Zaxcom ZFR400
MPN #ZFR400
Compact bodypack recorder with 128 dB dynamic range, NeverClip, ZaxNet remote control, QC audio, timecode output, NP-50 power, microSD storage, .ZAX format

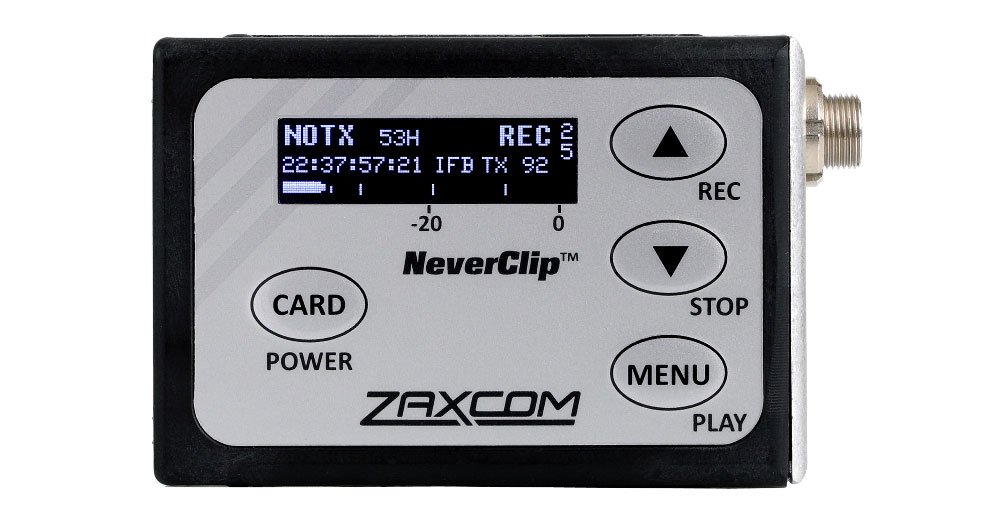

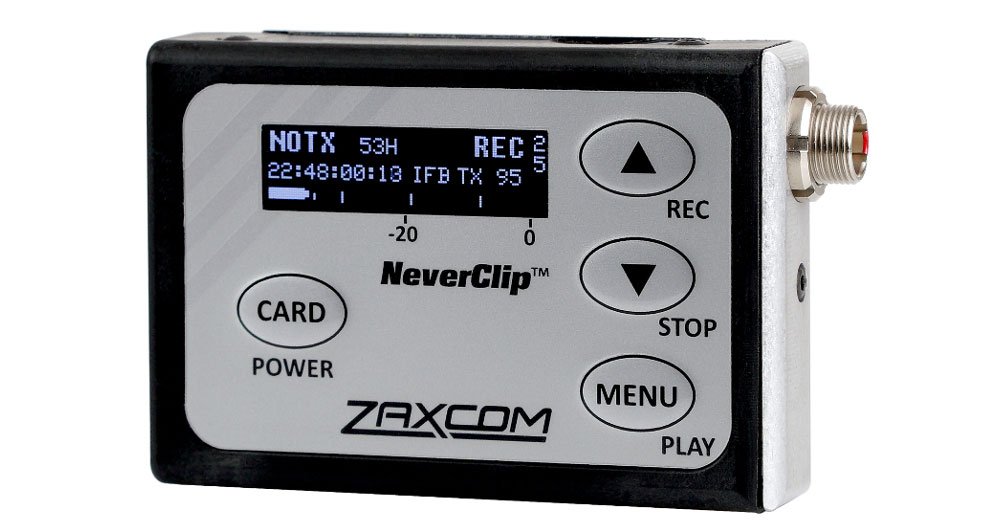

The Zaxcom ZFR400 is a compact, body-worn audio recorder designed to deliver high-fidelity, timecoded recordings in virtually any environment. Built from a rugged nylon polymer with a sleek, rounded form, this ultra-light unit is both durable and unobtrusive-ideal for talent wearing it on set. Despite its tiny footprint, the ZFR400 packs a suite of advanced features like NeverClip and ZaxNet, making it a perfect solution for productions where RF transmission isn't practical or permitted.
Functioning either as a standalone recorder or part of Zaxcom's patented virtual multitrack system, the ZFR400 records pristine, timecoded audio directly to a microSD card. It offers 128 dB of dynamic range thanks to dual A-D converters, eliminating the need for limiting and ensuring distortion-free captures. ZaxNet compatibility enables remote timecode jamming, gain adjustments, and full transport control without physically accessing the unit. It also transmits quality control (QC) audio and timecode in real time-crucial for wireless monitoring on set.

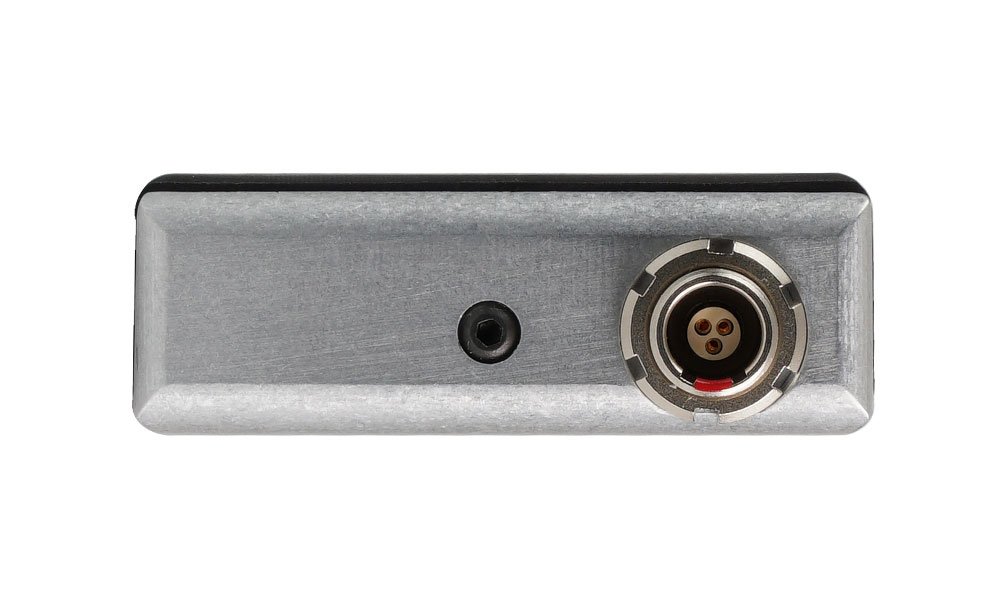

Adding to its flexibility, the ZFR400 includes an audio/timecode output via its 3-pin LEMO connector, supporting simultaneous input and output operations. It operates for up to 10 hours on a single NP-50 battery, making it well-suited for long shooting days. With its combination of stealthy design, powerful performance, and full integration into the Zaxcom ecosystem, the ZFR400 is an essential tool for professional productions that demand reliability and sound excellence without compromise.
Features
Ultra-compact bodypack recorder with timecode and remote control.Durable, impact-resistant housing for rugged use.Records directly on the body, ideal when wireless mics aren't practical.NeverClip technology delivers distortion-free audio with wide dynamic range.ZaxNet allows wireless remote control, timecode sync, and gain adjustments.Sends audio and timecode for real-time quality checks.Supports direct audio or timecode output via the mic connector.Runs up to 10 hours on a rechargeable NP-50 battery.Saves recordings on microSD cards in timecode-stamped formats.
Specifications
General Specifications
Product Name: Zaxcom ZFR400Type: Ultra-small bodypack audio recorder with timecodeUse Case: Standalone recorder or part of virtual multi-track systemHousing: High-strength nylon polymer with machined metal and rubber gasketsCooling: Passive cooling with efficient heat transfer
Audio Specifications
Dynamic Range: 128 dB (NeverClip technology)Distortion: < 0.01%Frequency Response: 20 Hz to 16 kHzHighpass Filter: Off or 70 to 220 Hz (step selectable)Mic Power: 3.3 VDC @ 10 mA maxMic Connector: 3-pin micro LEMO (FGB.00.303.CLAD22)Input Range: -60 to -24 dBuInput Impedance: 4.7 kohmADC Bit Depth: 32-bit
Timecode Specifications
Output Connector: 3-pin micro LEMOTimecode Type: SMPTEFrame Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DFClock Accuracy: 1.54 PPM (1 frame drift in 6 hours)
Recording Specifications

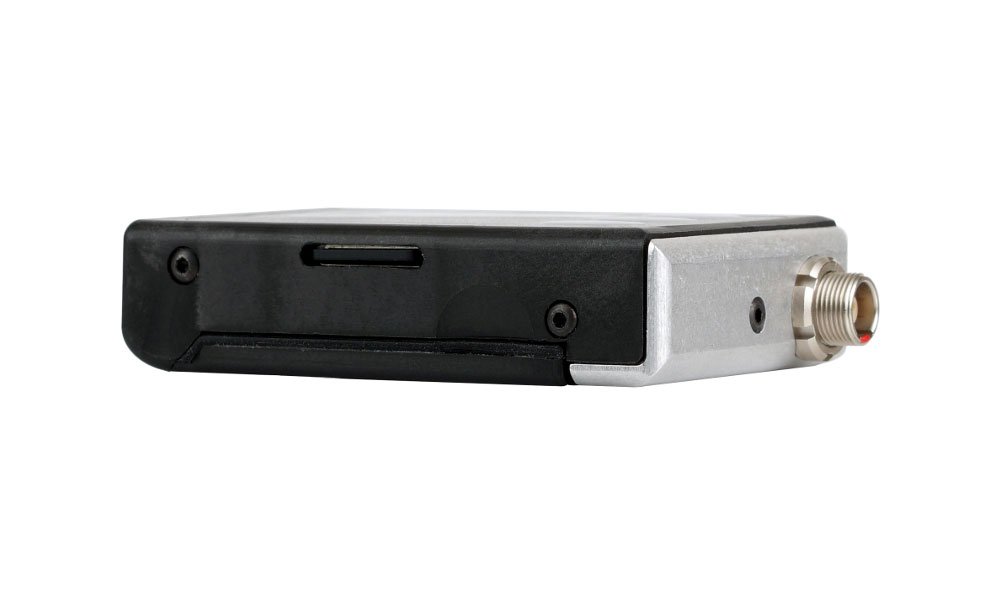

Media: microSD card (Flash memory)File Format: .ZAX (convertible to BWAV or MP3)Recording Time: Up to 96 hours on 16 GB card
Wireless Specifications
ZaxNet Frequency Range: 2.403 to 2.475 GHzModulation: Digital Spread SpectrumFrequency Step: 0.001 GHzBandwidth: 1 MHzChannel Separation: 2 MHzZaxNet Features: Remote control, QC audio, wireless timecode jamming
Playback Specifications
Output Connector: 3-pin micro LEMOOutput Level: 3 V-PPOutput Modes: Playback / E to E Audio (user selectable)
Power Specifications

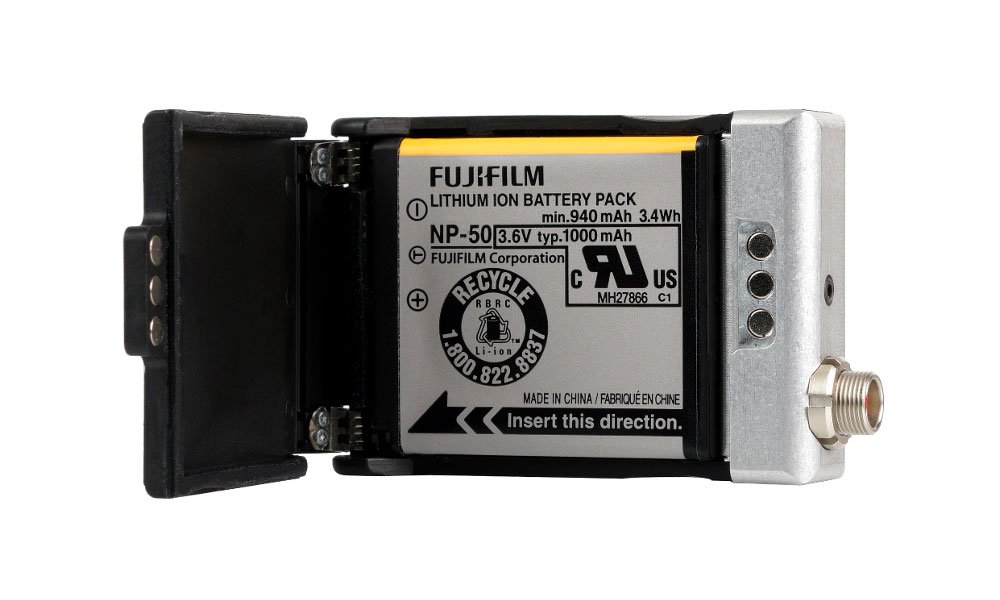

Battery Type: NP-50Battery Life: Up to 10 hours
Physical Specifications
Weight: 2.2 oz (without battery)Dimensions: 2.2? x 1.6? x 0.55?Display: OLED
