Zaxcom ZFR300NC
MPN #ZFR400
Compact audio recorder with timecode, NeverClip, IFB receiver, 24-bit 48kHz recording, 104dB dynamic range, 2 AA battery power, microSD storage

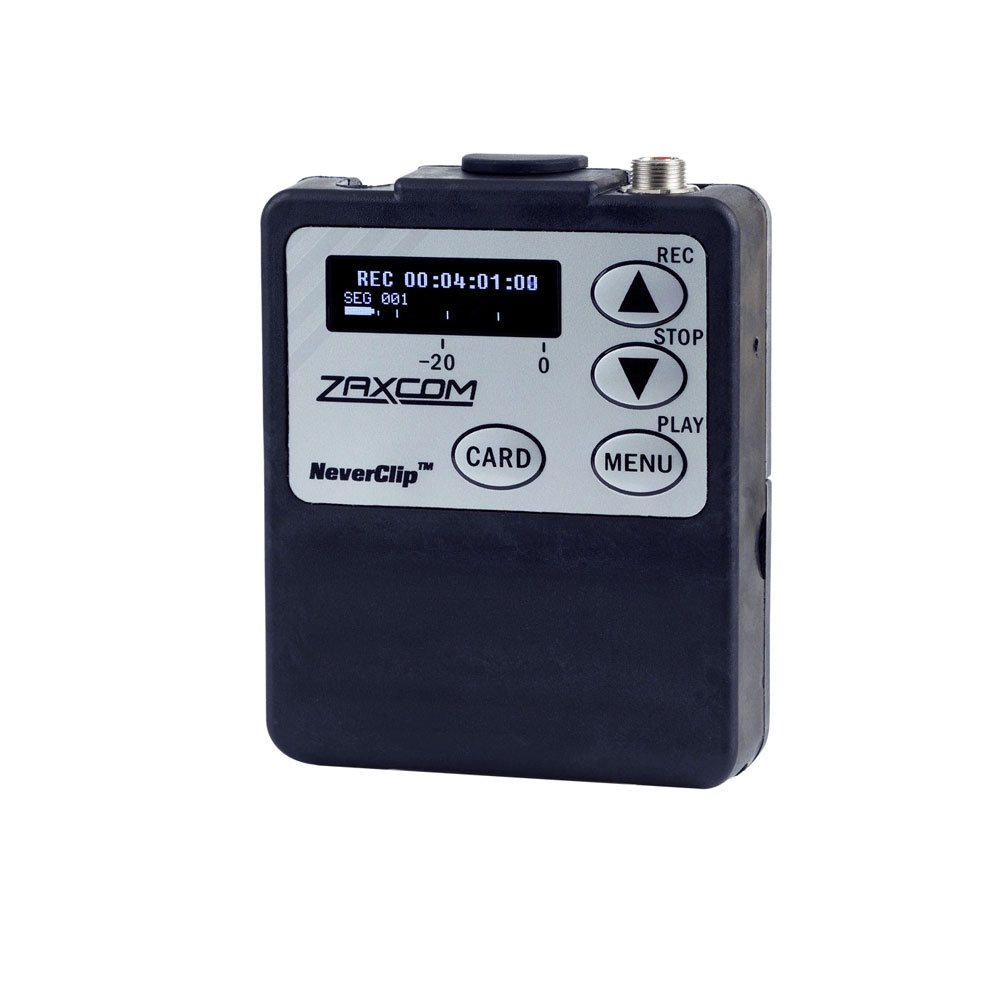

The Zaxcom ZFR300NC is a compact, high-performance bodypack audio recorder that offers a seamless blend of on-location versatility and studio-grade quality. Designed to match the size and form of the Zaxcom TRXLA3 transmitter, the ZFR300NC works with standard wired lavalier microphones, making it an excellent choice for ISO track recording when wireless transmission isn't feasible or reliable. It's ideal for productions requiring multiple isolated recordings without the range limitations and interference risks associated with traditional RF systems.
Equipped with Zaxcom's NeverClip technology, the ZFR300NC captures audio with a dynamic range of up to 104 dB and delivers pristine 24-bit/48 kHz recordings directly onto a microSD card. On startup, it jams timecode via ZaxNet and transmits QC audio and timecode within seconds. Its built-in ZaxNet IFB receiver supports timecode syncing and remote control, making it a powerful timecode master. The recorder also supports wireless re-jamming to maintain sub-frame sync accuracy, and its recorded files are ready for immediate integration into post-production workflows, ensuring time-aligned, high-quality audio tracks. Whether used solo or in a large multi-recorder setup, the ZFR300NC offers unmatched reliability and sound fidelity in a lightweight, rugged design.
Features
Records high-quality audio directly from wired lav mics.Built-in timecode generator keeps all recordings precisely in sync.Uses ZaxNet to wirelessly jam and re-jam timecode with sub-frame accuracy.Transmits audio and timecode for real-time monitoring via IFB.Compact and lightweight-same size as Zaxcom's wireless transmitters.Works independently of RF range, making it ideal for ISO tracks.Easily integrates into multi-recorder setups for virtual multi-track recording.Runs up to 12 hours on just two AA batteries.Audio is saved on microSD cards and ready for post-production.
Specifications
General Specifications
Product Name: Zaxcom ZFR300NCFunction: Audio recorder with timecode, NeverClip, and built-in IFB receiverMicrophone Compatibility: Standard wired lavalier microphonesTimecode Function: Jam-sync via ZaxNet 2.4GHz; supports wireless jamming and re-jammingQC Monitoring: Transmits QC audio and timecode via built-in ZaxNet
Audio Specifications

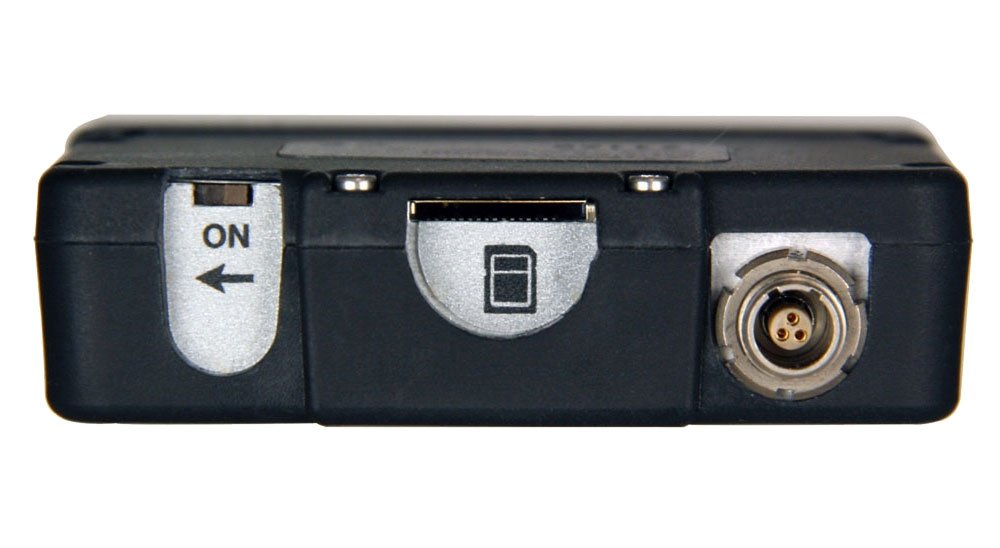

Dynamic Range: 104dBDistortion: Less than 0.01%Frequency Response: 20Hz to 16kHzHighpass Filter: 70Hz to 220Hz, in 10Hz steps, 6dB/octaveMic Power: 3.3V DC at 10mA maxMic Connector: 3-pin micro LEMO (FGB.00.303.CLAD22)Input Range: -60 to -24dBuInput Impedance: 4.7kOhmsADC Bit Depth: 24-bitADC Sampling Rate: 48kHz
Timecode Specifications
Timecode Reader/Generator: SMPTE standardFrame Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DFClock Accuracy: 1.54 PPM (1 frame drift in 6 hours)
Recording Specifications
Media: microSD cardFile Format: .ZAXRecording Duration: 96 hours on 16GB card
Wireless Specifications
ZaxNet Frequency Range: 2.403 to 2.475GHzRF Modulation: Digital Spread SpectrumFrequency Step: 0.001GHzBandwidth: 1MHzChannel Separation: 2MHz
Physical Specifications

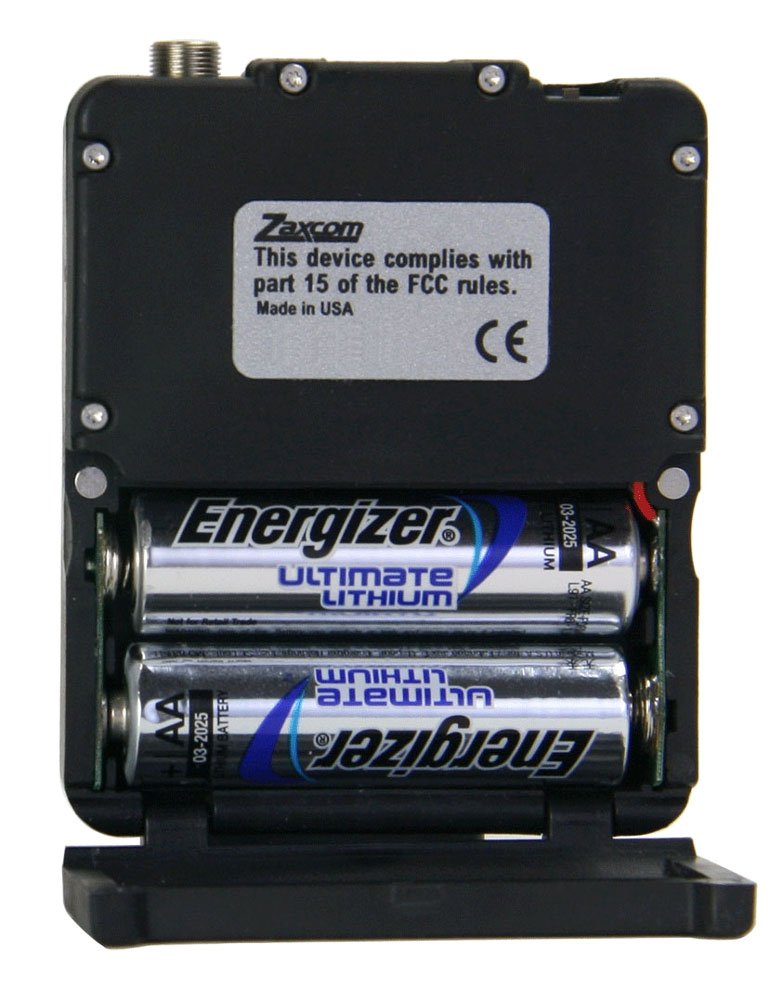

Weight: 87.8g (without battery)Dimensions: 76.2mm x 60.96mm x 16.51mmPower Supply: 2 AA lithium or NiMH batteriesBattery Life: Up to 12 hoursDisplay: Graphic LCD panel
Included Items
1x Zaxcom ZFR300NC audio recorder
