Zaxcom TRXLA5
MPN #TRXLA5

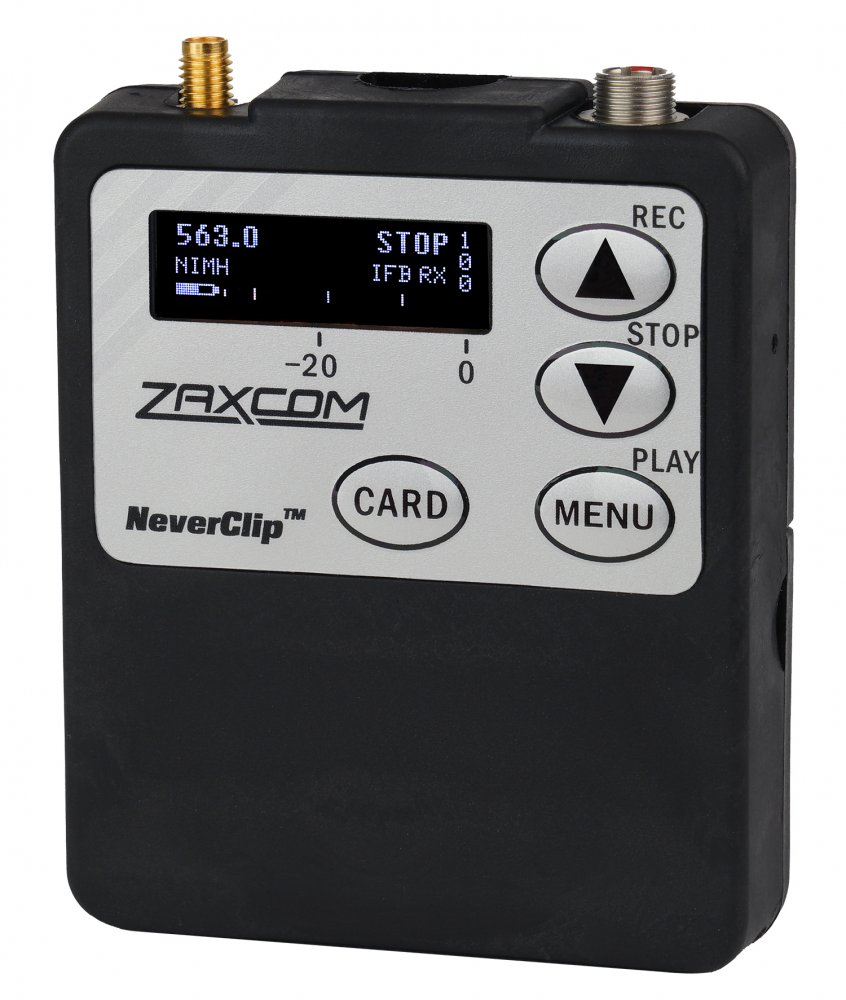

Wide-band bodypack transmitter
The TRXLA5 is a wide-band bodypack transmitter that runs on two AA batteries. It's lightweight and durable, housed in a high-strength, impact-resistant nylon polymer casing. This transmitter design has remained popular because of the convenience of AA batteries and the 100 mW power output. This new model takes advantage of Blocks 20 " 26, where legal, and supports 5 Volt microphones.
MICROPHONE CONNECTIVITY

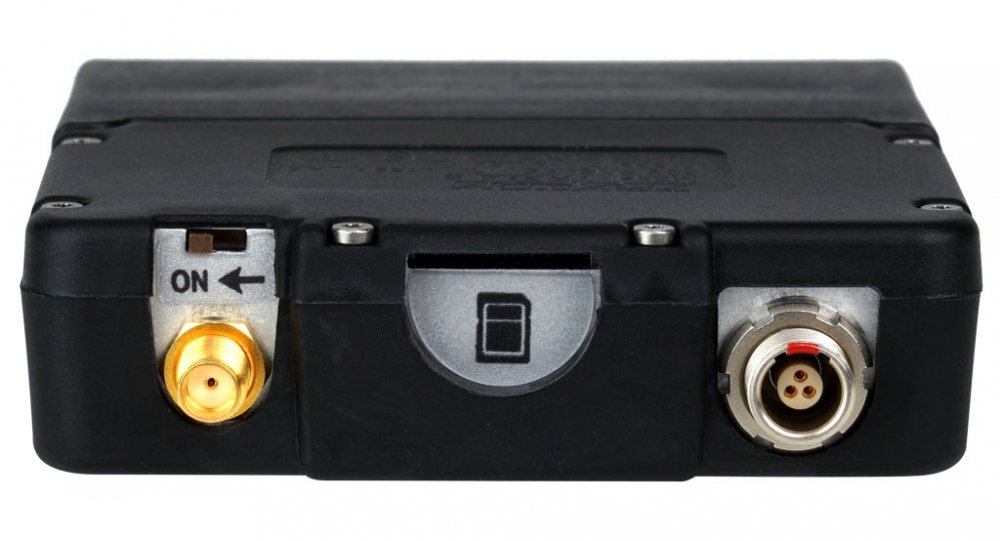

The TRXLA5 has a 3-pin micro LEMO connector that supports 5-volt lavalier microphones
ENCRYPTED AUDIO
The TRXLA5 transmits using 100% digital modulation allowing audio to be fully encrypted. Digital encryption is the only way to keep all audio transmission private. A digital transmission also provides audio quality superior to analog systems.
NEVERCLIP
NeverClip is available in all modes on the TRXLA5. It works by utilizing two A-D converters to extend the dynamic range of the transmitter to 126 dB, so there's never any limiter distortion.
INTERNAL RECORDING
Audio is simultaneously transmitted and recorded to a removable microSD card using the highly reliable MARF (Mobile Audio Recording Format). MARF ensures file corruption never happens if a battery dies or someone accidentaly removes a card too early.
ZAXNET
LA5 is equipped with ZaxNet, a long-range remote-control system allowing the user to change the frequency, pre-amp gain, sleep mode, and place the internal recorder in the record, playback, and stop modes " all without ever needing to disturb talent.
The units can also replay audio via a timecode reference, giving production sound mixers the ability to replay and remix audio, creating a virtual multi-track playback and re-record system
ZAXNET QC AUDIO
The LA5 also sends a Quality Control audio signal over ZaxNet? so when micing someone you don't have to go to the cart to hear how it sounds. You can use an ERX to listen to the mic right on the spot.
POWERROLL
To extend battery life, PowerRoll adjusts the LA3's power level to 100mW when the audio received from it is being recorded by a ZaxNet? compatible recorder. When the transmitter audio isn't being recorded the power is automatically reduced to 25mW.
MODULATION CHOICES FOR YOUR ENVIRONMENT
The range will always vary depending on your environment, but you've got choices to optimize transmission for peak performance. Zaxcom High Density modulation (ZHD) increases the number of available channels from 4 to 9 for every 1 MHz of spectrum space, perfect for reflective environments like busy city streets. XR gives you the maximum distance in less dense / more controlled spaces.
POWER
The LA5 runs for over 10 hours on two Lithium AA batteries. Run times on Alkaline and NiMH with vary based on what you're using.
MHZ BANDS AND POWER OUTPUT
In the United Space, the LA5 runs in the frequencies and power outputs as follows:
512.0 to 607.9 (up to 100mW)
614.1 to 615.9 (20mW)
653.1 to 662.9 (20mW)
Globally, the LA5 runs between 512.0 " 698.0 MHz
Zaxcom Digital Recording Wireless Transmitters are protected under patent #'s: 7,711,443 & 7,929,902
Specifications
Transmitter
RF Modulation: Proprietary Digital Method
TRXLA5 US RF Freq Ranges
512.0 to 607.9 MHz
614.1 to 615.9 MHz
653.1 to 662.9 MHz
Global RF Freq Range: 512 to 698 MHz
RF Frequency Step: 100 KHz
RF Bandwidth in ZHD Mode: 50 KHz
RF Bandwidth in XR Mode: 200 KHz
Channel Separation in ZHD Mode: As close as 100 KHz (receiver dependent)
Channel Separation in XR Mode: 400 KHz
Antenna Connector: 50 ? SSMA Female
Emission Designator: 180 KV2E, 100 KV2E, 50 KV2E
FCC Part: 74.861
Transmitter Audio
Dynamic Range: 126 dB (Stereo model 106 dB)
Distortion: 0.002%
Frequency Response: Mode 0
High Pass Filter: Off or 30 to 220 Hz, Steps
Mic Power: 5 VDC
Mic Connector: 3-Pin Micro LEMO
Input Range: -60 to -30 dBu
Mic Impedance: 6.8 k ?
ADC Bit-Depth: 24 Bits
ADC Sampling-Rate: 48 kHz
Timecode Reader / Generator
Clock Accuracy: 1.54 PPM (1 Frame Out in 6 Hours)
Timecode Type: SMPTE
Timecode Frame-Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
Internal Recording
Media: MicroSD Card (Flash Memory)
File Format: .ZAX
Recording Time
2.4 GHz ZaxNet Receiver
RF Frequency Range: 2.403 to 2.475 GHz
RF Modulation: Digital Spread Spectrum
RF Frequency Step: 0.001 GHz (1 MHz)
RF Bandwidth: 1 MHz
Channel Separation: 2 MHz
Sensitivity: -96 dBm
Physical
Weight: 3.2 oz without Battery
Dimensions (H x W x D): 3.0? x 2.4? x .65?
Display: Graphic OLED
Power
Power Output: 25 / 50 / 100 mW " Software Selectable (varies by regulation)
Battery Life: Up to 10+ Hours with 2 Lithium AA at 100mW
