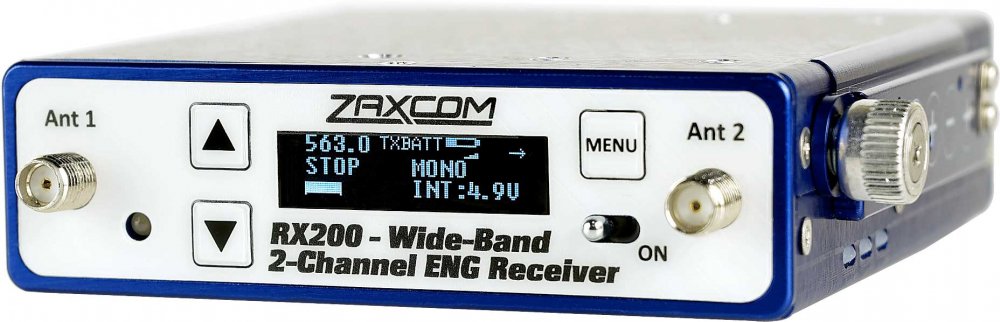

Zaxcom RX200
MPN #RX200
The RX200 is a 200 MHz wide compact battery powered ENG receiver.
It has a tunable tracking front end filter for receiving any frequency in any block from 20 through 27, or 512 - 698 MHz, while still filtering out unwanted RF.
RX200 can output AES digital audio or analog audio at -35dB mic level, -10dB consumer level, or 0dB line level on a single TA5 connector. It's is also capable of receiving and outputting the embedded SMPTE time code on a BNC connector also on mic, line or consumer levels.
The RX200 / TRX900CL Camera Link combo is a great solution for sending two channels of 100% digital audio with embedded SMPTE timecode from bag to camera. Small and light-weight with Zaxcom's patented side-mounted LED's, the RX200 is easy to mount on any camera - from small format DSLR to a full size ENG rig.
Features
No camera left behind
Flexibility from Afar
RX200 has an automatic tracking front end filter so you can receive on any frequency in any block from 20 through 27 (512-698MHz) with impressive range
Self sufficient
The ultra compact RX200 isn't only small, but powers itself on 4 internal AA batteries for up to 12 hours for use with any camera big or small
Going all out
Output AES digital or analog audio via a single TA5 connector and timecode from a dedicated BNC connector
Specifications
RECEIVER
Receiver RF Channels: 1
Diversity method: antenna switching
RF Modulation: proprietary digital method
RF Frequency Range: 518 to 698 MHz
RF Frequency Step: 100 KHz
RF Signal Bandwidth: 200 KHz
Channel Separation: 500 KHz (700 KHz recommended)
Sensitivity: -114 dBm
Antenna Connector: 50-ohm SMA female X 2
RECEIVER AUDIO - ANALOG OUTPUT X 2
Dynamic Range: 116 dB
Distortion: 0.002%
Frequency Range: 20Hz to 16kHz
DAC Bit-depth: 24 bits
Connector: TA-5M
Audio Output: Active analog balanced
Audio Output Level: -35dBm (mic), -10dBm (consumer) or 0dBm (line)
RECEIVER AUDIO - DIGITAL OUTPUT
Signal Format: AES Balanced
AES dynamic range: 123dB
Frequency Range: 20Hz to 16kHz
AES output: AES3 balanced at 96KHz
Audio Output Connector: TA-5M
TIMECODE
Timecode output connector: BNC
Timecode output level: .01VPP, .2VPP, .5VVP, .9VPP, 1.5VPP
Time code output rate: 23.98, 24, 25, 29.97 ND, 29.97 DF, 30
POWER
External Power: 6 to 18 VDC (140mA @ 12VDC)
Power Connector: Switchcraft 760k
Internal Power: 4 AA Batteries
Li-Ion Battery Life: Up to 12 hours
NiMH Battery Life: Up to 8.5 hours
Alkaline Battery life: Up to 7 hours
MISC.
Serial Control Port: RS422
Weight: 7.7 oz (without internal batteries)
Dimensions: 1.0 x 3.5 x 3.5 (25mm x 89mm x 89mm)
Display: Graphic White OLED Panel
