Zaxcom MicPlexer 3
MPN #MICP3
RF filter and amplifier with enhanced frequency coverage, a 50 MHz tuning window, continuous 2 MHz step tuning, variable output level control, and RF overload protection
The MicPlexer 3 is a versatile RF filter and amplifier designed to deliver enhanced frequency coverage and superior RF performance. It features a continuously tunable bandpass filter with a 50 MHz tuning window, providing precise control with 2 MHz step tuning. This flexibility allows users to fine-tune their signal reception while minimizing interference. The variable output level control ensures optimal signal strength, and the integrated RF overload protection safeguards your equipment from potentially damaging high-RF environments. The unit's design is perfect for scenarios where strong RF rejection and stable amplification are crucial, such as professional audio setups, broadcasting, or RF distribution networks.
With an operating range of 470-665 MHz and 745-965 MHz, the MicPlexer 3 strategically omits the 666-744 MHz band to avoid interference from licensed mobile device frequencies. Its steep attenuation filters out unwanted signals, maintaining clean transmission and reception. The built-in amplifier boasts a low noise figure of 0.35 dB and an impressive OIP3 of +34 dB, ensuring strong, clear output even in challenging RF environments. The unit supports two amplification channels with four outputs, offering adjustable gain settings tailored to specific frequency bands. Additionally, its SMA antenna inputs and intuitive overload indicators make setup and monitoring straightforward, ensuring reliable performance in any RF distribution system.
Features
Enhanced Frequency Coverage: Operates across 470-665 MHz and 745-965 MHz, avoiding mobile device-only bands to reduce interference.Continuously Tunable Bandpass Filter: Allows precise frequency selection with a 50 MHz tuning window and 2 MHz step adjustments.RF Overload Protection: Built-in LEDs alert you when signal levels are too high, preventing performance issues.Flexible Output Control: Adjustable output levels for each frequency range to match your setup needs.High-Quality RF Amplification: Strong amplification with advanced filtering for reliable performance in high-RF environments.Simple Bypass Option: SMA connectors on both inputs for easy bypass when needed.Dual Amplification Channels: Supports two channels with four user-adjustable outputs for versatile RF distribution.
Specifications
Frequency Range
Operating Range: 470"665 MHz, 745"965 MHzOmitted Range: 666"744 MHz (licensed for mobile device use)
Tuning Specifications
Tuning Window: 50 MHz continuously adjustableTuning Steps: 2 MHz frequency stepsExample Tuning: 525"575 MHz pass-through when set to 550 MHz
RF Filtering
Filter Type: Continuously tunable bandpass filterAttenuation: Steep attenuation outside the tuning windowRF Rejection: High rejection of unwanted signals, preventing RF overload
RF Amplification
Noise Figure: 0.35 dBOutput Third-Order Intercept Point (OIP3): +34 dBRF Protection: High-Q RF filtering for overload protection
RF Distribution
Amplification Channels: 2 channelsOutputs: 4 user-adjustable outputsOutput Level (470"665 MHz): -10 dB to +6 dB relative to inputOutput Level (745"965 MHz): -10 dB to +3 dB relative to input
Connectivity

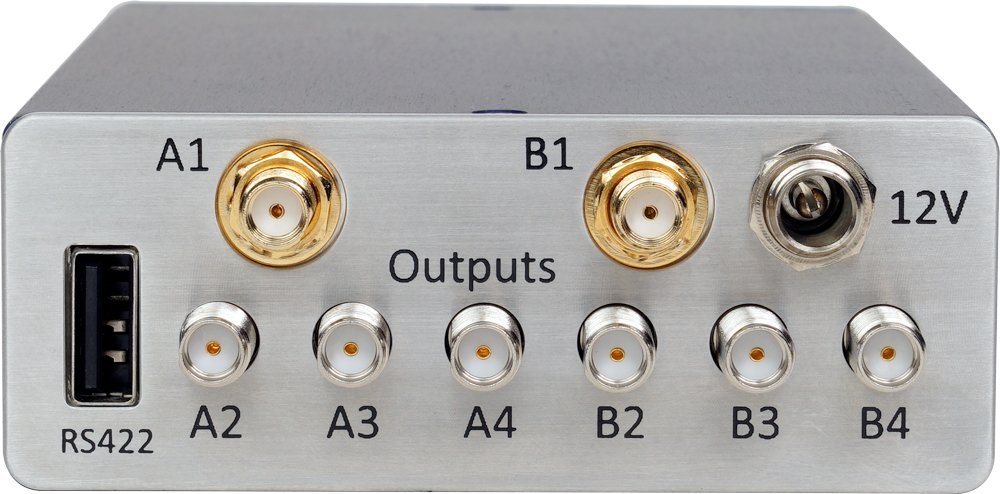

Antenna Inputs: SMA connectors
Overload Protection
Overload Indicators: 1 LED per antenna inputIndicator Light: White LED for overload conditions
