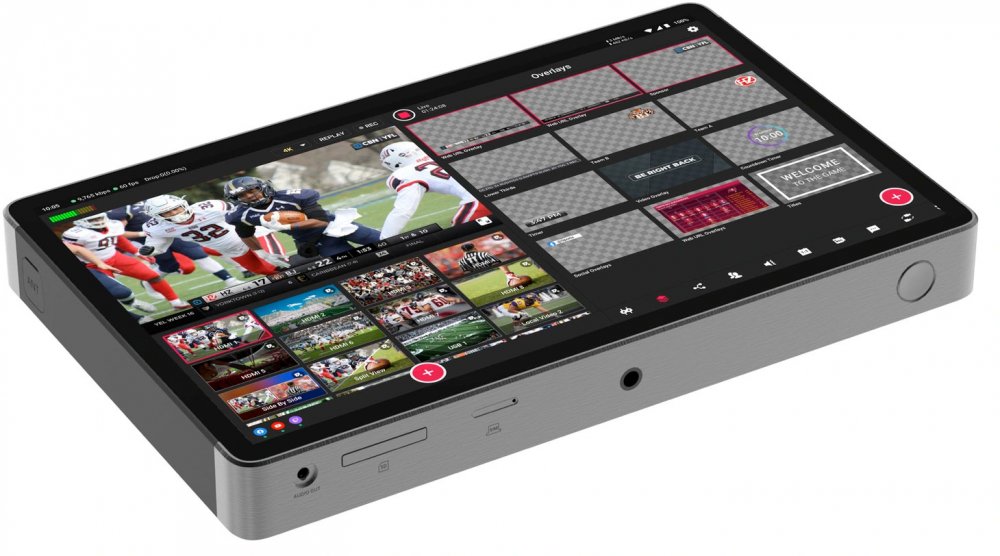

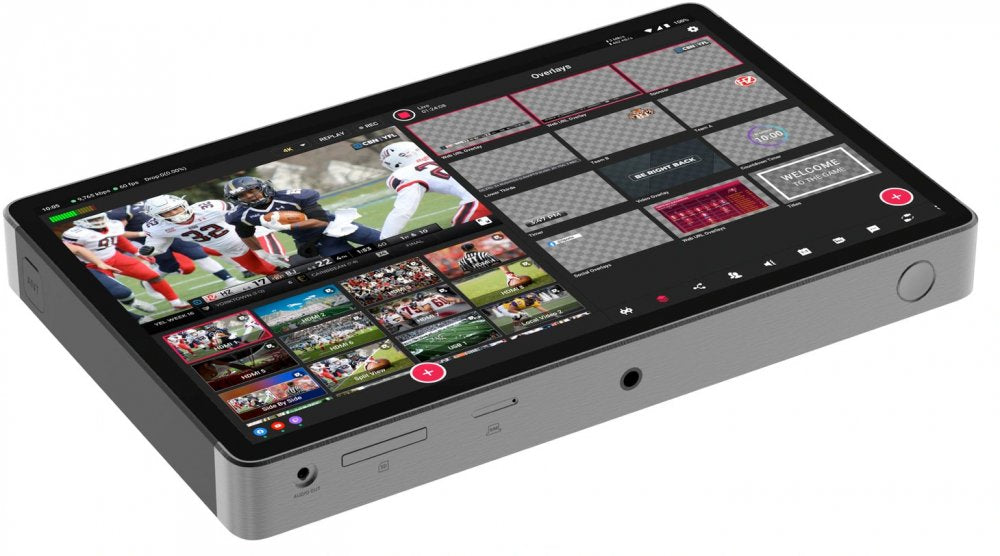

YoloLiv YoloBox Extreme
UPC/EAN #762715516398
MPN #YoloBox EXTREME
Encoder, Monitor, Switcher & Recorder in OneLive Switch Between 15+ Sources 8 x HDMI,1 x USB-C & 2 x USB-A Inputs, 2 x HDMI Outputs, Mic In, Line In, Audio Out 1 x SD Card & 1xUSB
Introducing the YoloBox Extreme, YoloLiv's most advanced all-in-one live streaming solution designed to elevate your production capabilities. Unveiled at IBC 2024, this powerhouse device combines encoding, switching, recording, and monitoring functionalities into a single, portable unit, streamlining your live streaming setup.
The YoloBox Extreme features an impressive array of inputs and outputs, including eight HDMI inputs supporting up to 4K60 with built-in scalers, and two assignable HDMI outputs capable of delivering 4K program or multiview feeds. Its expansive 11.2-inch OLED touchscreen boasts a 2.5K resolution and peak brightness of 1,000 nits, ensuring clear visibility even in bright environments. Powered by the Qualcomm Snapdragon 8 Gen 2 CPU, it delivers exceptional performance for handling demanding live streaming tasks. Additionally, the device offers ISO recording for up to four 4K30 or six 1080p60 inputs, real 4K streaming, and an extended battery life of up to 10 hours, making it a versatile choice for on-the-go productions.
YOLOLIV
Designed with user-friendliness in mind, the YoloBox Extreme allows for quick setup without the need for a computer or professional crew. Its intuitive touchscreen interface simplifies control over various functions, including live switching between multiple video sources, audio mixing with individual level controls, and adding graphic overlays such as logos, lower thirds, and countdown timers. The device also supports advanced features like multicam instant replay, chroma keying for seamless background replacement, and the ability to invite remote guests into your live production. With support for multiple network connections"WiFi, Ethernet, and built-in 4G LTE"it ensures reliable streaming from virtually any location.
YOLOLIV
Whether you're a content creator, event videographer, or live sports broadcaster, the YoloBox Extreme offers a comprehensive solution to meet your live streaming needs, combining professional-grade features with portability and ease of use.
Features
Multiple HDMI Inputs and Outputs: Connect up to 8 HDMI sources, such as cameras or laptops, and utilize 2 HDMI outputs for program or multiview displays.YOLOLIVHigh-Quality Touchscreen Display: Features an 11.2-inch OLED touchscreen with 2.5K resolution and peak brightness of 1,000 nits, ensuring clear visibility even in bright environments.YOLOLIV4K Streaming and Recording: Supports real 4K streaming for sharp and detailed live broadcasts, and ISO recording of up to 4 channels in 4K30 or 6 channels in 1080p60.YOLOLIVWireless Connectivity: Equipped with external antennas providing up to 90 meters of wireless range, and supports up to 8 NDI inputs for a total multicam wireless solution.YOLOLIVExtended Battery Life: Offers up to 10 hours of battery life, allowing for extended on-the-go streaming without the need for constant recharging.YOLOLIVPowerful Processing: Powered by the Qualcomm Snapdragon 8 Gen 2 CPU, delivering enhanced performance for seamless operation during demanding live productions.
Specifications
General Specifications:
Qualcomm Snapdragon 8 Gen 2 CPU11.2-inch OLED touchscreen display2.5K resolutionPeak brightness: 1,000 nitsBattery life: up to 10 hoursExternal antenna with up to 90m wireless rangeDimensions and weight: [Not specified]
Video Inputs:
8 HDMI inputsSupports up to 4K60 with built-in scalerUp to 8 NDI inputsWireless or Ethernet connectivity
Video Outputs:
2 HDMI outputsAssignable for Program or Multiview output in 4K
Recording and Streaming:
ISO recordingUp to 4 channels at 4K30 or 6 channels at 1080p60Real 4K streaming capabilityH.265 encoding
Audio:
Mic input: 3.5mm monoLine input: 3.5mm stereoAudio output: 3.5mm for monitoringBuilt-in audio mixer with individual level controlAudio delay adjustmentMix-minus and assignable AFV (Audio Follows Video)
Connectivity:
Ethernet port for wired internet connectionBuilt-in 4G LTEWi-Fi supportUSB Type-A 3.0 ports (2)For webcams, hard drives, USB donglesUSB Type-C ports (2)One fully functional, one for chargingSD card slot for storageNano-SIM card slot for 4G network
