Wisycom MRK16
MPN #MRK16
Multi-slot 16 channels ultra-wideband wireless receiver system

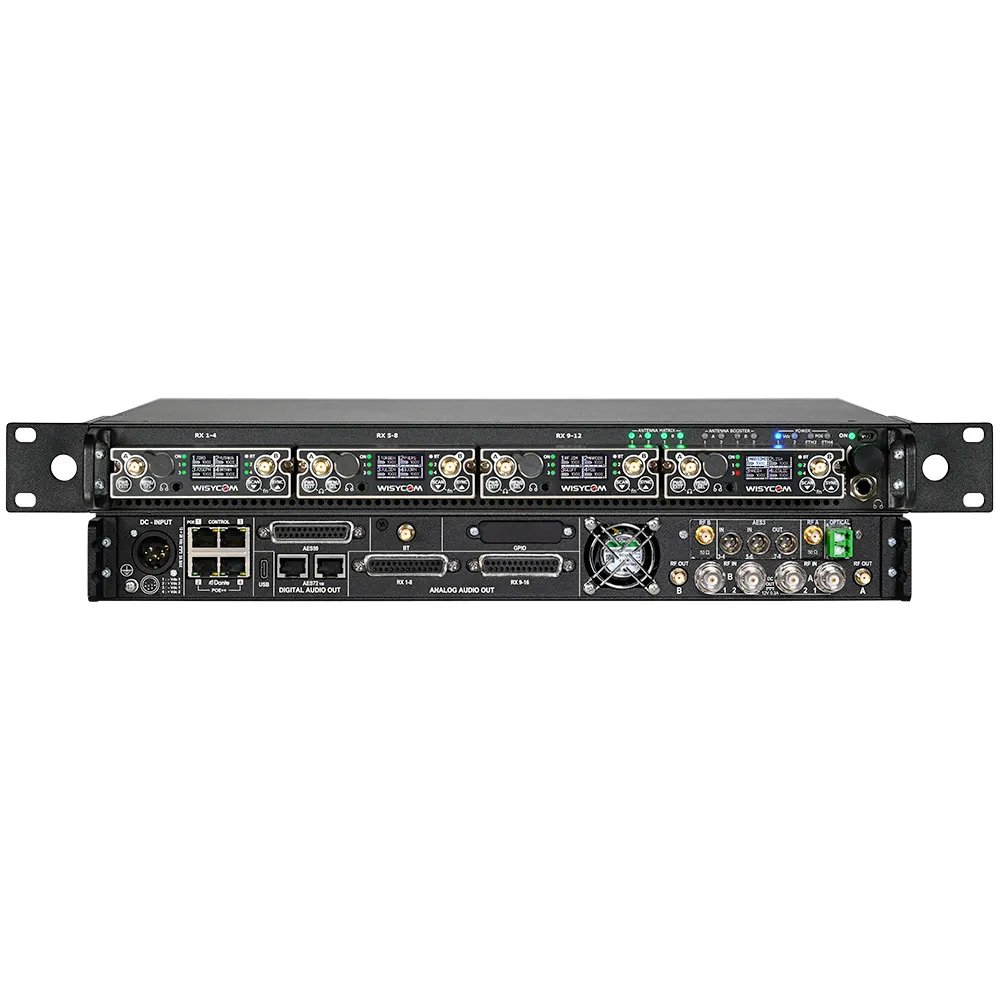

MRK16 is a modular wireless-microphone receiver system that fit up 16 channels in a compact 19? 1RU alluminium chassis. It accepts up to 4 MCR54 receivers, providing antenna distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).
Features
Up to 16 true diversity channels in a compact 19? 1U rack (4x MCR54)Ultra wideband receiver system from 470 to 1260 MHz equipped with 10 automatically selected band-pass filtersRF Over Fiber for reception without distance limits! The fiber module EXP2 allows to replacement of coaxial cable and antennas located miles awayMultiple audio outputs:- Digital (AES72&AES59)- Dante (primary&secondary)- Analog (2xDB25 Tascam wiring)Dual Area Matrix to select and combine 2 diversity zones. Antenna booster and remote control of Wisycom LFA/ADFA/BFA.Bluetooth 5 Long Range: Class 1 (100mW) remote control to connect Wisycom devices within a range of hundreds of meters.Daisy chain up to 4 racks for 64 channels in only 4U5 ports manageable Gigabit Ethernet switch (ETH5 is connected to an internal SFP module for fiber data)Redundant (dual) power supply on XLRDual Power Over Ethernet input and PoE output (PE1 optional)USB-C connectivity with powering (1.5A)
Specifications
Frequency ranges : 470 - 1260 MHz (full range)
Filter selection : 10 automatically selected band-pass filters:
470-608 MHz 470-694 MHz 470-832 MHz 470-1260 MHz
510-608 MHz 510-694 MHz 510-832 MHz 510-1260 MHz
822-1260 MHz 940-1260 MHz

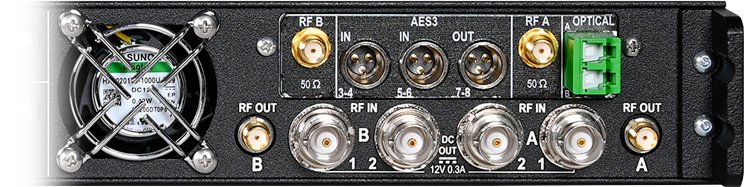

Antenna connector : 4 x BNC type female connectors for inputs, 2 x SMA type female connectors for loop
Antenna input impedance : 50 Ohm
Spurious emissions : < 2 nW
Input/output gain : 1dB ± 1
Input/cascade gain : 1dB ± 1
IP3 : 14 dBm
Antenna booster powering : +12 Vcc / 300 mA MAX

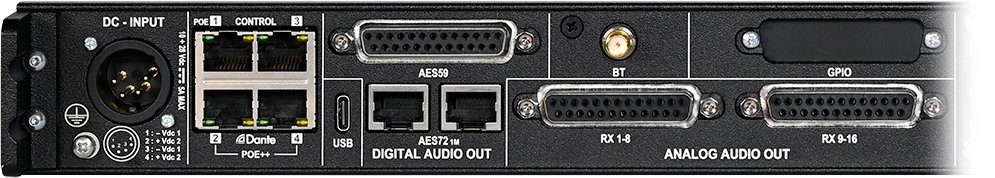

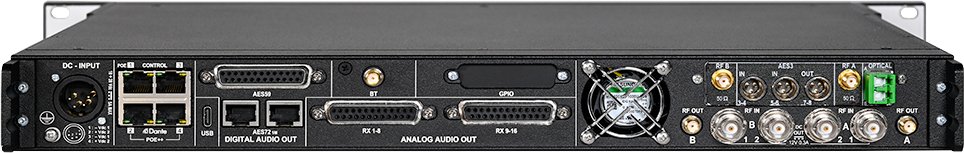

Analogue audio output : 2 x DB25 connectors (TASCAM)
Digital audio output : AES59 (DB25 connector) and AES72 1M (2 RJ45 connectors)
Dante output : Dante Primary and Secondary (2 x 1000 Base TX RJ45 Ethernet)
Monitor output : headphone 6.3 mm jack socket, volume adjustable with a front knob
LED : 4 LEDs indication for the zone activation status (red, green, off)
4 LEDs indication for the booster status (red, green, off)
4 LEDs indication for the power supply status (red, green, blue, off)
1 LED indication for the MRK16 status (green, off)
Max number of receiver slots : 4
Max number of channels : 16 (with MCR54), 8 (with MCR54-DUAL)
Managing interface : 2 x 1000 Base TX RJ45 Ethernet, Bluetooth 5 Long Range, USB-C and thru display menu of the 1st receiver on the right
Powering : 10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
1: -Vdc1
2: +Vdc2
3: -Vdc2
4:+Vdc1
PE1 option: Power Over Ethernet board:
- dual POE++ input on eth 2/4 (redundant pwr supply)
- POE output on eth 1 (external Wifi, Bluetooth antenna)
Power consumption : 60W with 4 MCR54s and 4 active boosters
Power supply output : on USB-C port to connect external device (e.g. tablet) 1.5 A max
Temperature range : -10 ÷ +55 °C
Dimensions : 44 x 483 x 352 mm (HxWxD)
Weight : 4.3 Kg. with 4 MCR54s and EXP2 board, 3.30 Kg. without MCR54s
