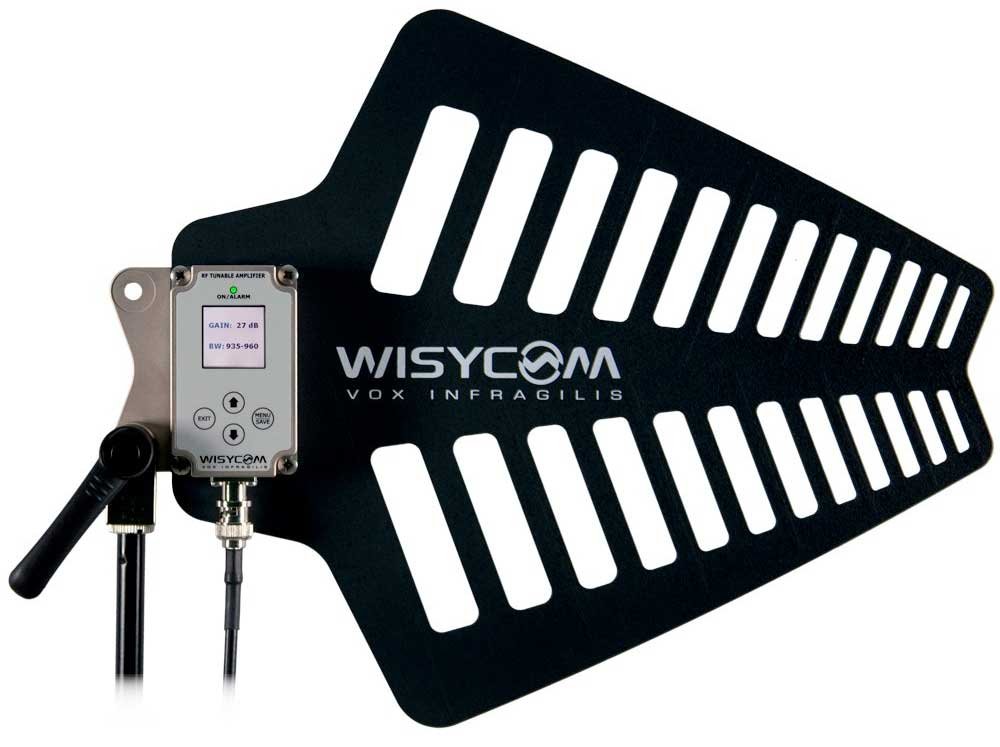

LFA is a directional antenna with a unique design to achieve an ultra-wideband of 410-1300 MHz, a compact and rugged form factor and a reduce wind resistance.
LFA integrate a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable.
Using the latest Wisycom filter technology, LFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.
Caractéristiques
Huge reception band: 410-1300 MHz
Remote controllable thru coax cable
RF gain from -12 to +27 dBu (1 dB step)
Easy configuration thru a TFT display
Tunable filter for interference control
Antenna off for RF zone disabling
Fixed band saw filter
Skeletal design for low wind loading
3 High Pass & 3 Low Pass filters
Waterproof with gasket sealing
Spécifications
Frequency ranges: 410 ÷ 1300 MHz Filter range: Tunable: 410 ÷ 730 MHz (UHF), 40MHz of BW Fixed: 940 ÷ 960 MHz or 1240 ÷ 1260MHz Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option) Polarization: Vertical Radiation: Directional Connector: N or BNC Impedance: 50 Booster Gain: -12 ÷ 27 dB typical (1 dB step selection)
0.8 dB attenuation (bypassed) Booster Gain flatness: ± 1 dB, in the whole working window Display: TFT - transflective (176 x 176 pixels, RGB) Power supply: +12 V, 100mA Material: epoxy fiberglass with skeletal design Finishing: black matte textured weather resistance coating Mounting: 5/8" with worth or 3/8" with adapter Dimensions: 276 x 336 x 61 mm (HxWxD) Weight: 550 g
