WesAudio ngLeveler
UPC/EAN #5906660299127
MPN #WESRLVL-1
16-channel next-generation automation system with per channel analog saturation and DAW or HUI controller management
ngLEVELER - "Next generation Leveler" is analog automation system with convenient features for better studio integration. Besides its automation engine it also brings analog saturation per each channel which helps tracks to get more presence in the mix. ngLEVELER doesn't have any controls, it is either managable via:

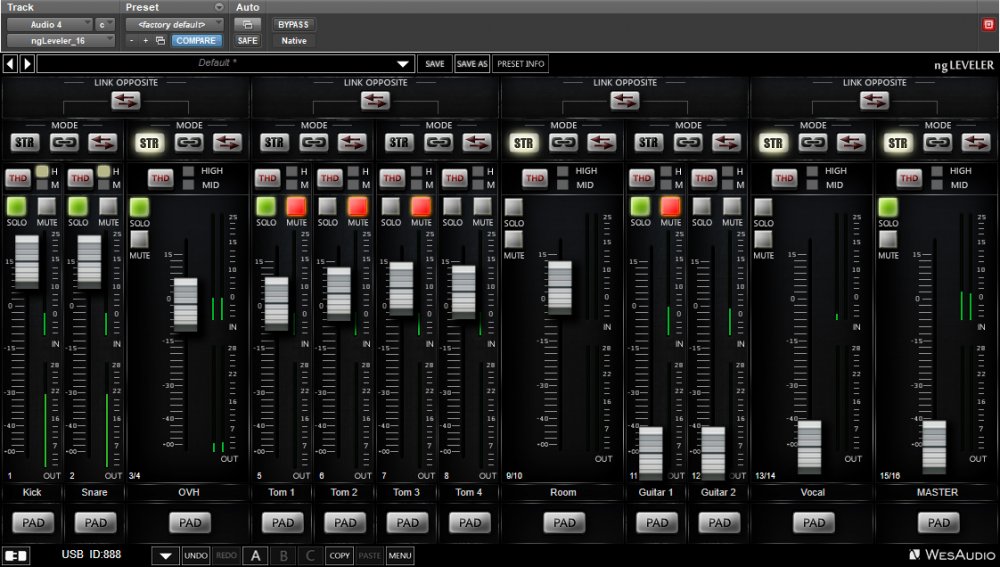

- DAW Plug-in
- HUI controller
- Or both
This approach gives us very convenient fader control with true total recall system via DAW plug-in. ngLEVELER was created to become studio centerpiece, and because of its simple analog connectivity it can be used in many applications!
Features
16 channels of analog automation with total recall
+25dBu(IN) / +28dBu(OUT) of headroom
6dB passive attenuator (PAD) for better integration with high level signals
Very low noise and distortion - THD+N < 0.01%
MUTE and SOLO for each channel
HUI controller integration
16 channels of Proprietary THD
IN and OUT (before and after signal leveling) metering fully integrated with DAW plug-in
Flexible DAW/Live plug-in control for instant recall

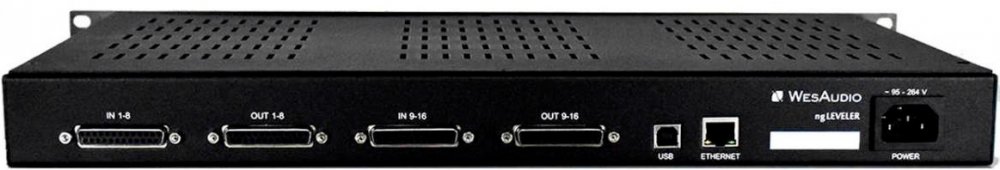

DB-25 analog connectivity
Management via Ethernet or USB
Fully digitally controlled and isolated analog circuit,
Full automation record via HUI
Free software and firmware upgrades
Specifications
THD+N(20Hz-20kHz) at 0dBu < 0.008%
Freq response: 0-250kHz (-3dB)
Input impedance > 10kohm
Output impedance < 50ohm
Channels crosstalk > 100dB
Max input level: +25dBu
Max output level: +28dBu
Dynamic range > 118dB
Hardware Digital resolution: ~2500 steps per channel*
*DAW, or HUI controller may support lower resolution, in that case it will translate to lower number of HW steps.
