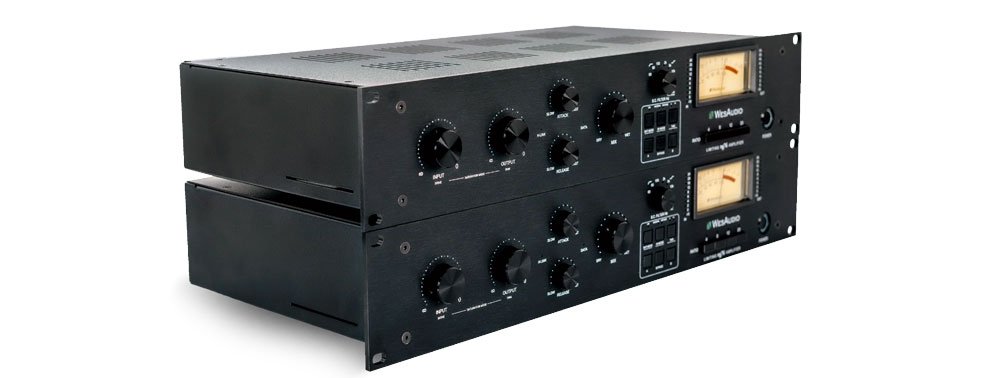

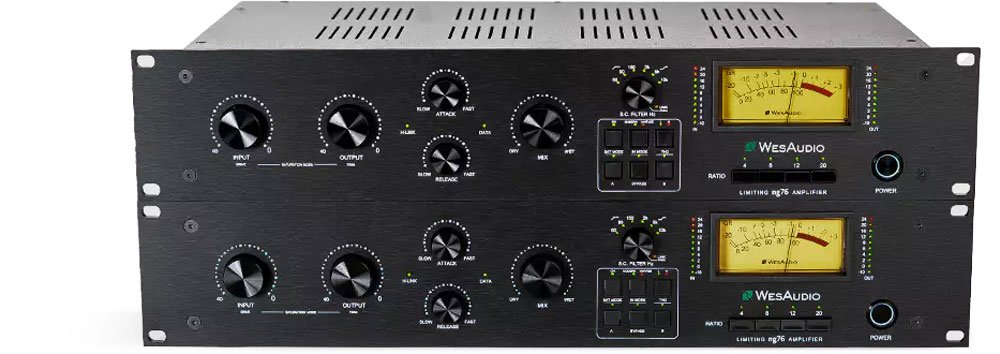

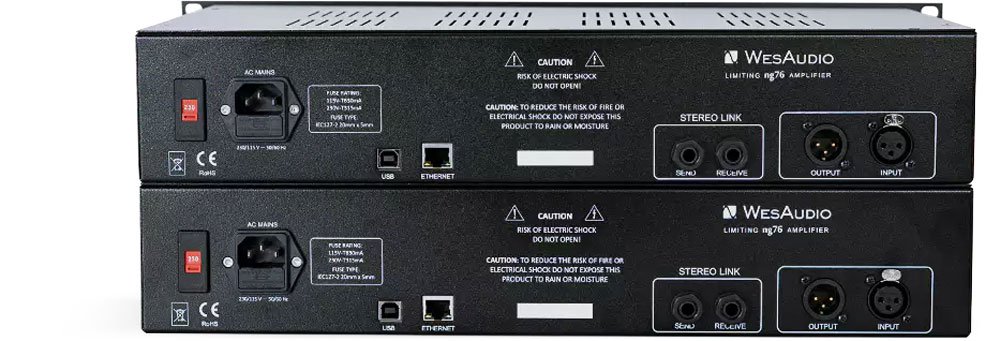

WesAudio ng76 Stereo Pair
UPC/EAN #5906660299196
MPN #WESRCFET-3
$3115.00 (Special)
Save $870.00, Regular $3985.00
Stereo matched pair, fully analog FET compressor with 24dBu of headroom and digital recall
True Stereo Operation
Two ng76 mono compressors can be linked via dedicated software.Link compression detectors using special cables (included with stereo-matched pairs) for true stereo compression.Option for dual mono compression with all parameters linked across both units.Any changes made on one unit will be automatically reflected on its paired twin.
Features
100% analog FET compressor with +24dBu of headroom.Link two mono channels through dedicated software for stereo use.Classic lightning-fast compression based on the WesAudio Beta76 design.Flexible DAW/Live plug-in control for instant recall.MIX knob for easy parallel compression.Carnhill transformers for both input and output stages.Saturation mode for special saturation/clipping effects based on the FET circuit.Supports all ratio combinations, including ALL BUTTON MODE.Modern and Vintage modes for two 1176 revisions (F & G).Two independent sidechain EQ circuits for versatile control.THD control with LOW and HIGH settings for total harmonic distortion based on the FET circuit.
Stereo Matched Pairs:
Includes two separate mono-channel devices that can be linked together through dedicated software.Compression detectors can be linked for true stereo compression using a dedicated cable (included).All parameters between the units are synchronized via a dedicated plug-in.Factory settings ensure the units are fully matched for stereo usage right out of the box.
Specifications
Attack time: 20 us - 800 us
Release time: 50 ms - 1100 ms
Compression ratio: 4:1; 8:1; 12:1; 20:1; all button mode and all combinations True Bypass
SC High Pass filter: 60,90,150Hz
SC High Shelf filter: 2KHz, 5KHz, 10kHz
Output impedance: 50 ohm
Frequency response: 20Hz to 20kHz (+/- 1dB)
Signal to noise ratio SNR: SNR >83dB
Max signal level: +24dBu
THD+N MIN: 0.2%
Noise floor: -95dBu
Power consumption: 8W
Dimensions: 88x483x235mm
Weight: 6 kg
Balanced output and input:
Case Rack: 2U
