WESAUDIO  |  SKU: 17885

_Hyperion

500 Series EQs/Compressors

NG500/500 Series parametric EQ with digital recall and 100% analog signal path

$2,060.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

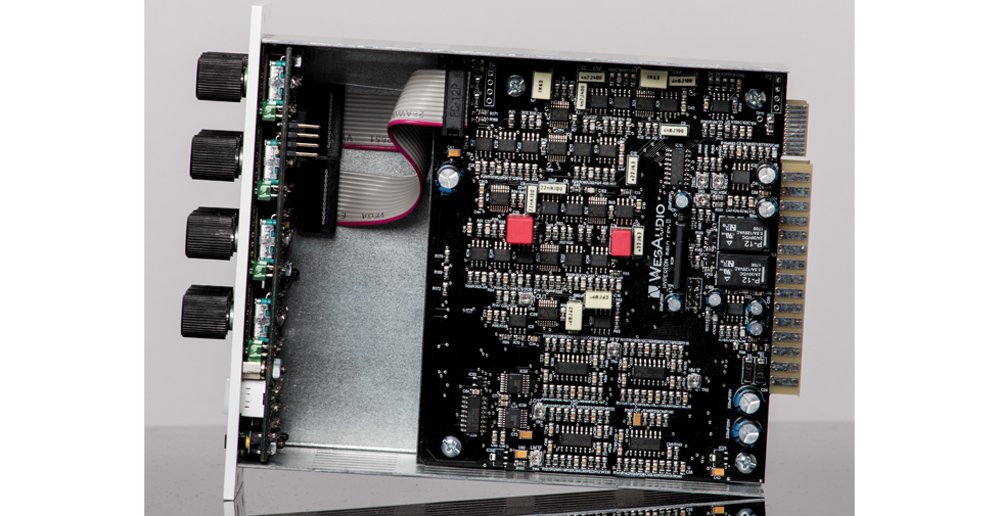

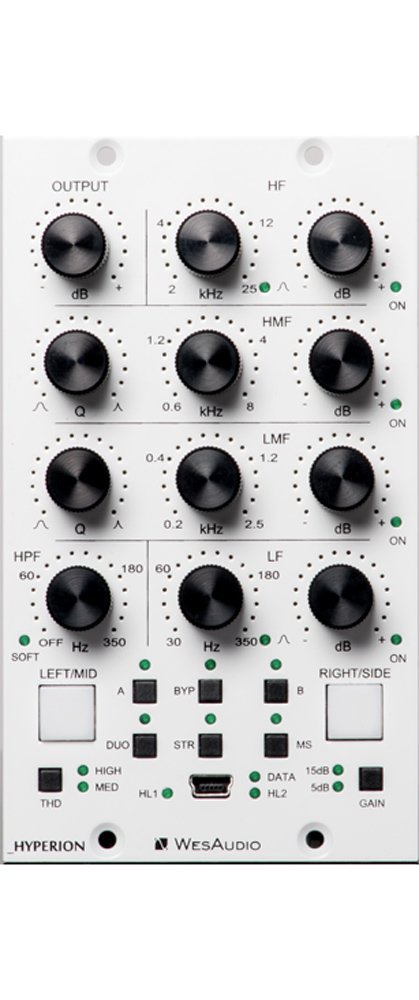

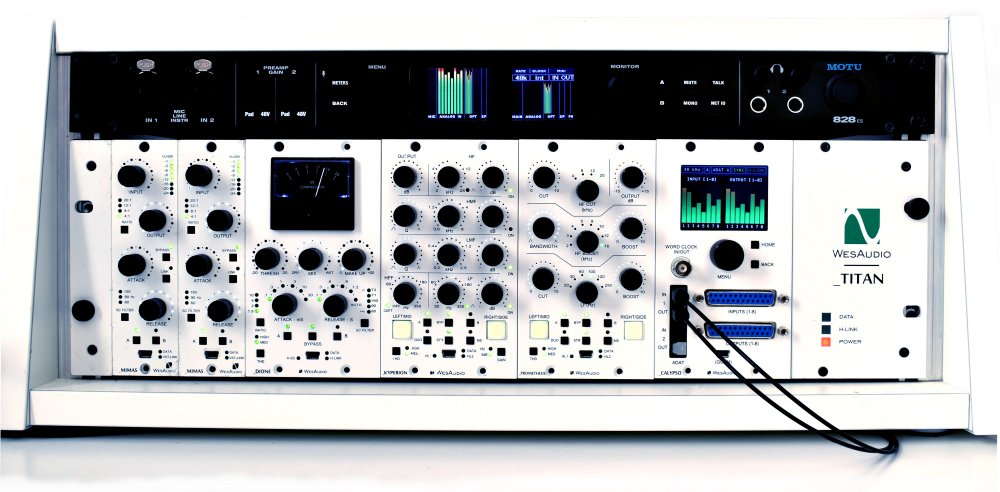

HYPERION is fully analog parametric EQ with +24dBu of headroom. It features a lot of innovative improvements that no other processor on the market provides. Its innovative design utilizes 15 VCAs per channel to provide essentially noiseless parameter changes and very musical nature. _HYPERION is next product in NG500 line where total recall is implemented through front panel USB socket or _TITAN chassis.

Features

+24dBu of headroom

Stereo / Dual mono / Mid/Side operation mode

4-Band EQ with switchable gain range for 5db or 15dB boost or cut per band:

High band - 2kHz to 25kHz (bell or shelf)

High-Mid band - 600Hz to 8Khz with full Q control

Low-Mid band - 200Hz to 2.5Khz with full Q control

Low band - 30 Hz to 350Hz (bell or shelf)

HPF with 12dB/Oct or 6 dB/Oct slopes

Each band features its own Bypass switch

Essentially Noiseless parameter changes

Proprietary THD implementation

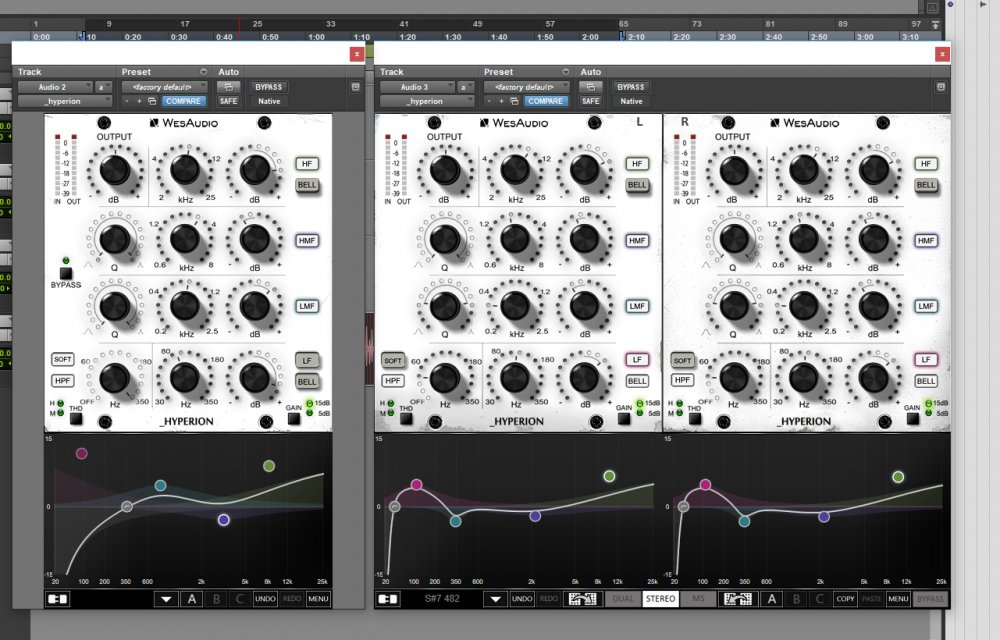

Flexible DAW/Live plug-in control for instant recall

12 touch sensitive encoders allows to record automation

True bypass

In and OUT metering with clip detection

A/B compare feature

Specifications

Frequency response: 10Hz-150kHz (-2dB)

THD+N all bands gain "0": 0.003% (1kHz,0dBu)

THD+N +15dB band boost: <0.15% (1kHz,0dBu)

Input impedance: 10kohm

Output impedance: <100ohm

Max signal level: +24dBu

Crosstalk:< -100dB

THD (MID switch): 1%

THD (HIGH switch): 2.5%

Power consumption: 150mA per rail

Dimensions : 76x133x158mm

Warranty: 2 years

Unit needs to warm up for about 5 minutes before usage as its temperature

may affect some internal variables - like frequencies of each band, and very slightly gain and Q settings.

Each band can boost or cut in configurable gain mode (It affects also OUTPUT control):

15dB boost or cut in 0.25 dB steps,

5dB boost or cut in 0.083 dB steps,

Each frequency control has predefined amount of steps in logarithmic scale:

HF frequency - 256 steps,

HMF frequency - 256 steps,

LMF frequency - 256 steps,

LF frequency - 200 steps,

HPF frequency - 128 steps.
