eMotion LV64D

64 stereo/mono input channels for advanced live sound mixing

16 stereo aux sends, 8 audio groups, and 8 matrixes for routing flexibility

SoundGrid network support for low-latency audio and plugin processing

Run up to 8 SoundGrid plug-ins per channel (Waves or third-party)

Includes essential eMo plug-ins for EQ, dynamics, filtering, and signal generation

32-bit floating point mix engine with ultra-low latency (as low as 0.8 ms)

Compatible with up to 4 multitouch displays and external control surfaces

Create custom layers and scenes with recall and automation features

Built-in stereo imaging, DCA groups, mute groups, and MIDI scene control

External insert support and offline setup/configuration mode

Designed for FOH, broadcast, and studio integration

Works on macOS and Windows systems via SoundGrid infrastructure

General Specifications

Mixer Type: Digital software mixer

Format: Download

Channel Count: 64 stereo/mono input channels, 36 bus/return channels

Audio Engine: 32-bit floating point

Latency: As low as 0.8 ms

Sample Rates: 44.1, 48, 88.2, 96 kHz

Compatibility: macOS 10.10.5 to 10.13 / Windows 8.1 or 10 (64-bit)

Audio Networking

Network Standard: SoundGrid infrastructure

External I/O: Supports up to 16 SoundGrid-compatible I/Os

Plugin Processing: External SoundGrid DSP server

Optional Redundancy: Redundant DSP server supported

Cables Supported: Cat 5e, Cat 6, Cat 7

Channel Features

Plug-ins per Channel: Up to 8 SoundGrid-compatible plug-ins

Supported Plug-ins: Waves and third-party

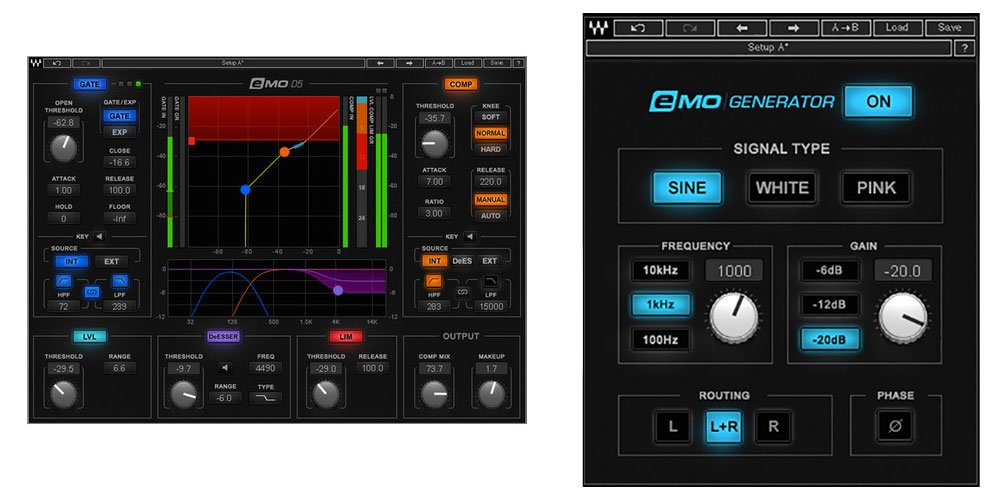

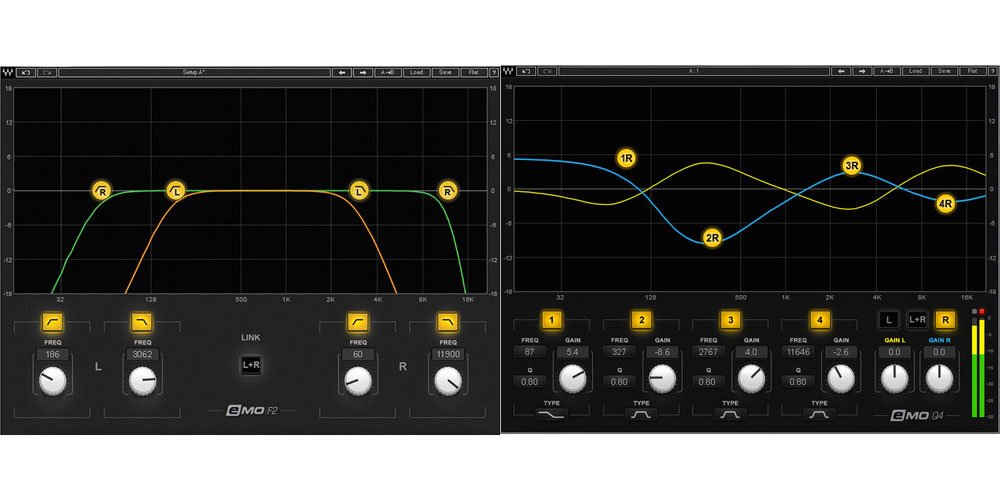

Included Plug-ins: eMo D5 Dynamics, eMo F2 Filter, eMo Generator, eMo Q4 Equalizer

Audio Groups: 8

Aux Buses: 16 (stereo/mono)

Matrix Mixers: 8 (stereo/mono)

Output Options: L/R/C/Mono panning, multiple outputs with digital trim

Imaging: Advanced stereo imager with balance, width, and rotation

Input Management: A/B switching, digital trim, preamp control

Delay Groups: Output delay alignment

Control & Interface

Screen Support: Up to 4 multitouch screens

Touch Controls: Windows - 10-point multitouch, Mac - single-touch

MIDI Control: Scene automation, fader/knob devices, show control

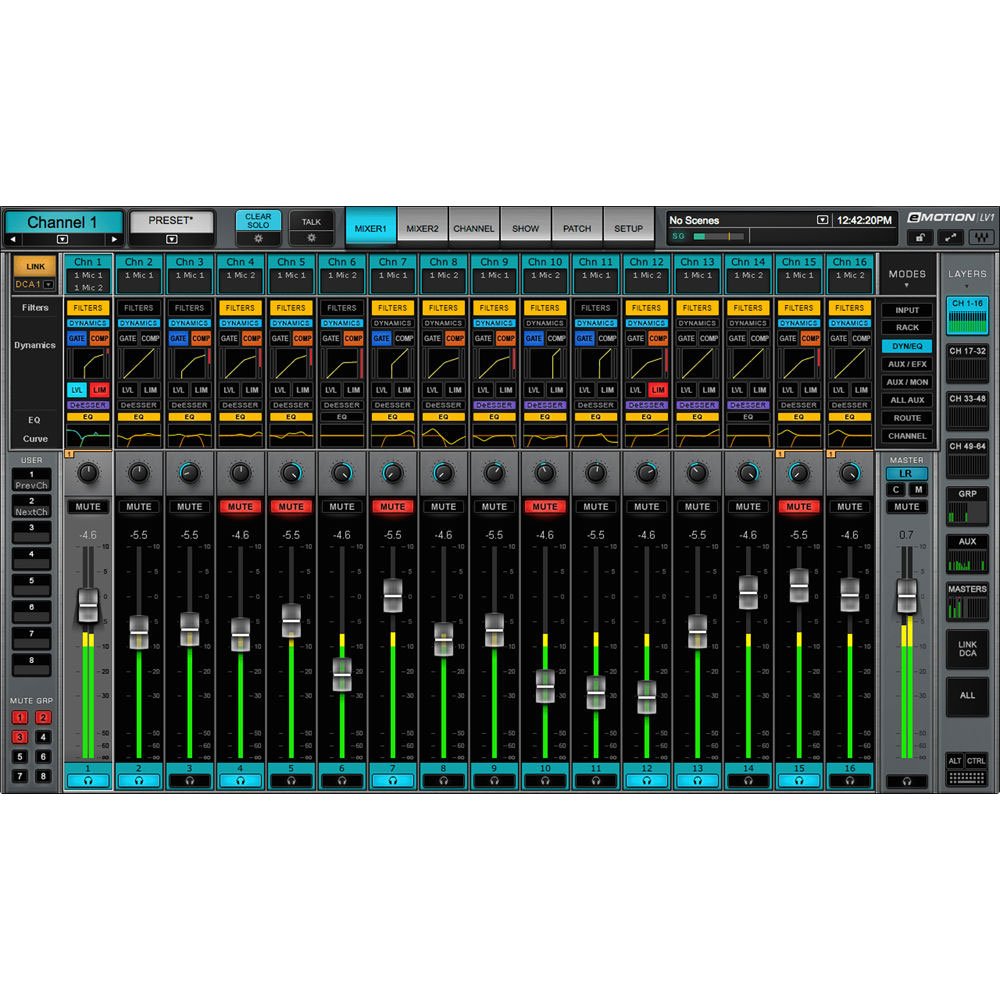

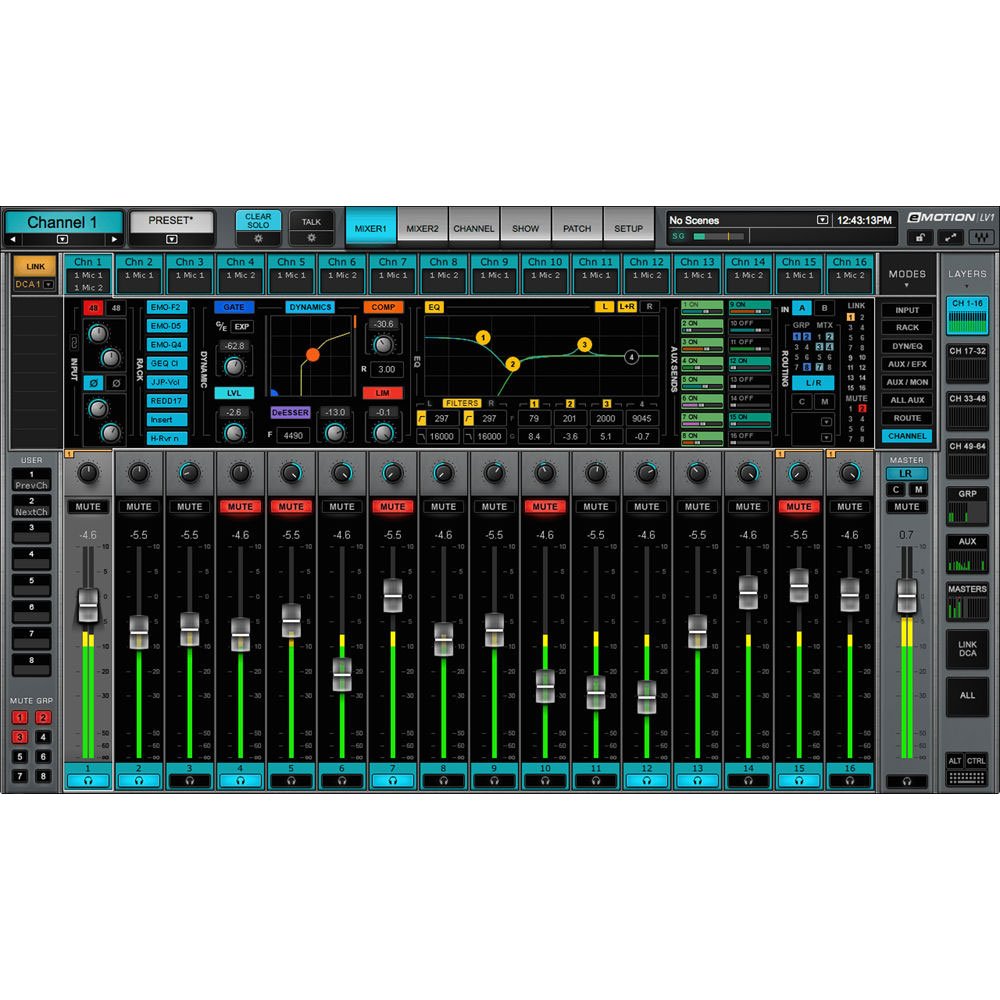

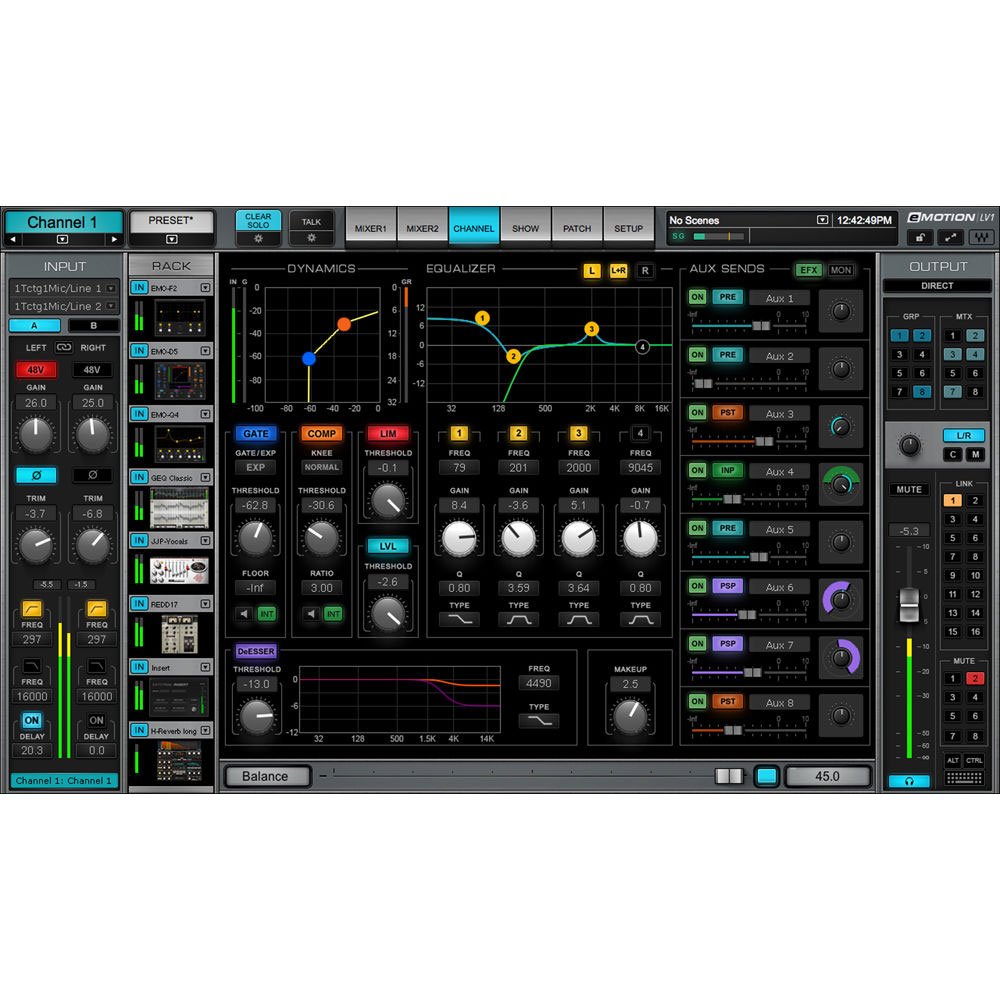

Control Windows: Mixer 1, Mixer 2, Channel, Show, Patch, Setup

User Customization: 8 user-assignable shortcut keys

DCA Features: 16 DCA faders, DCA spill

Group Control: 16 link control groups

Scene Memory: Up to 1000 scenes with recall filters and safe options

Solo Functionality: Solo-in-place with auto solo-safe

Layers: 8 layers per mixer window, up to 16 channels per layer

Insert Options: External inserts with plug-in rack integration

Patch Management: Offline patching and setup supported

Performance Tools

Visual Controls: Touch-and-slide plug-in parameter editing

Metering: Clip settings and detailed metering

Scene Automation: Global tempo, tap tempo, and recall-specific scene

Input Routing: Quick patch A/B input switching

Audio Routing: Custom layer creation and routing flexibility

System Requirements

macOS: Intel i5 CPU or later, 6 GB RAM, resolution 1280 x 768

Windows: Intel i3 CPU or later, 8 GB RAM, resolution 1280 x 768

Tablets: Windows 8.1/10, Intel i3 CPU or later

Boot Camp: Mac Mini 2014 or later, Windows 10

Display: 4-port graphic adapter required for 4-screen setups

Included in the Box

Waves eMotion LV1 64-Channel Mixer Software (Download)

eMo D5 Dynamics Plug-In

eMo F2 Filter Plug-In

eMo Generator Plug-In

eMo Q4 Equalizer Plug-In

Use Case

Ideal for FOH, monitor, and broadcast mixing in live sound environments, with full plug-in integration and scalable SoundGrid I/O.
