WATTSON AUDIO  |  SKU: 20299

Emerson Analog

Network Servers

Network bridge with integrated D/A converter, Ethernet in and RCA out

$2,795.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Emerson ANALOG Its integrated digital-to-analog converter connects to any kind system equipped with standard analog audio inputs. Emerson ANALOG is a simple and elegant way of connecting active loudspeakers to a network.

Technology, precision and know-how The original format of the digital Hi-Res music tracks provided by streaming services must be maintained. To ensure the data integrity of these tracks and to be fully bit-perfect, no alterations or conversions are made.

The choice of the DAC and the respect of its implementation, followed by a fine tuning of the analogue output stages, allow a true and harmonious restitution.

Control at your fingertips Wattson Music for iOS and Wattson Remote for Android are the control apps designed and developed for all Wattson Audio models.

Features

Proprietary streaming solution by engineered SA

Lossless LEEDH Processing volume control

Innovative and highly performing clock circuit and synchronization system

Ultra-low phase noise oscillators, < -135dBc/SQ(Hz) at 100Hz and < 50fs RMS jitter

Specifications

Connectivity

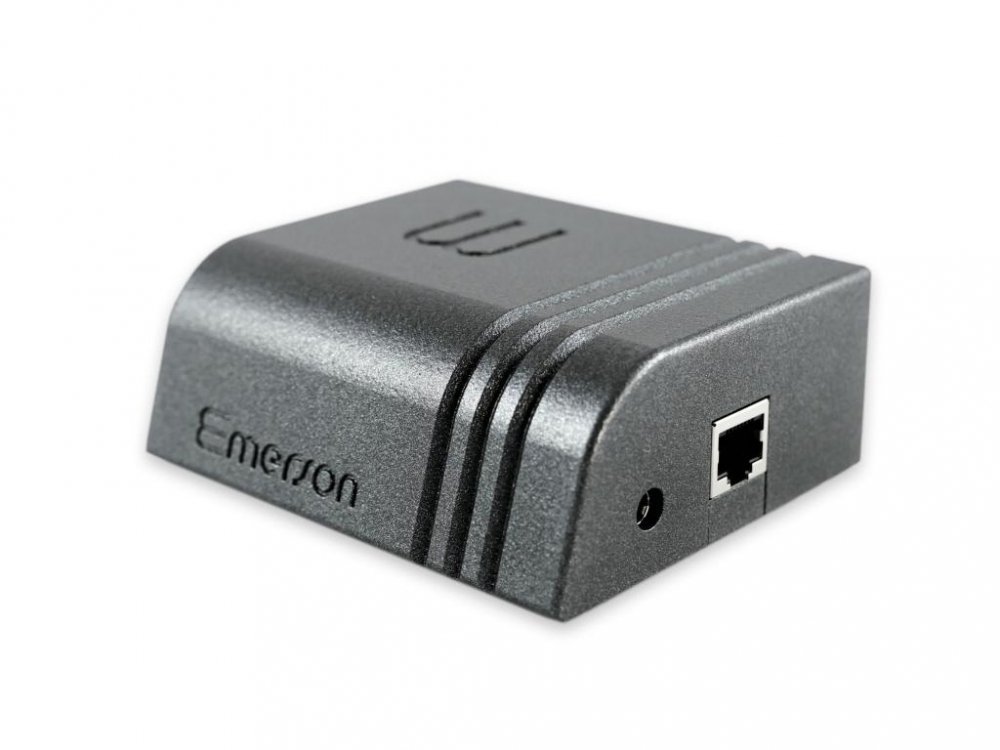

Network input: Ethernet 100 Mbit/s

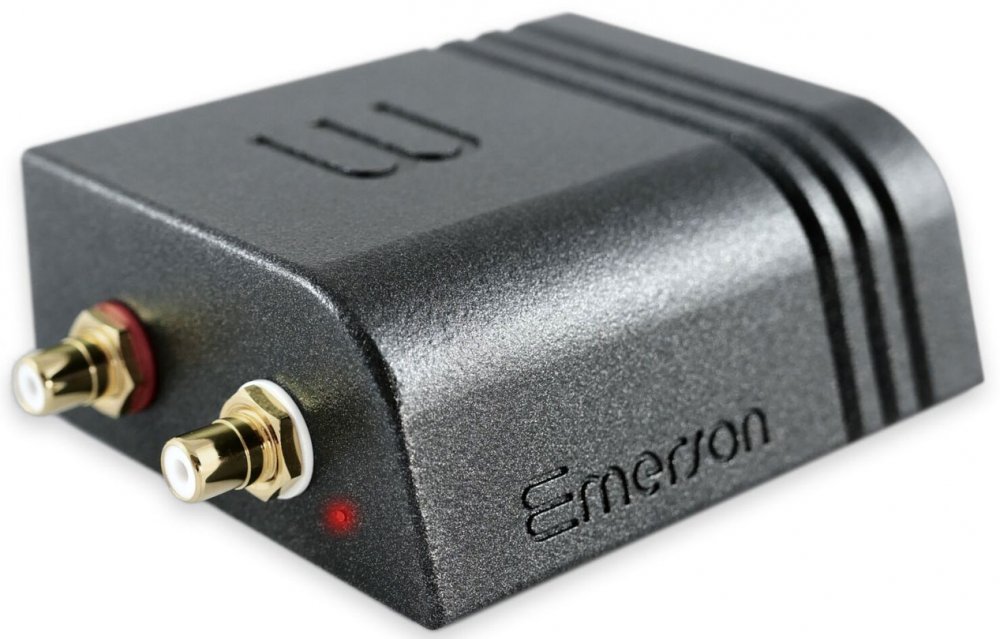

Outputs: RCA connectors

Restitution

Supported compression formats: WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA

PCM up to 24-bit 384kHz, DSD64

Control protocols: UPnP/DLNA, AirPlay compatibility, Roon Ready

Streaming services brought by the Wattson Music app:TIDAL¹, Qobuz², airable radios

Performances

Output level (0dB FS): 2,0V RMS

Signal-to-noise, weighted (SNR-A): typ. 124dB

Harmonic distortion (THD+N, 0dB FS): typ. 0,001%

Very low noise power supply (< 1µV RMS 10Hz-100kHz)

Mechanical and electrical characteristics

Dimensions (W x D x H): 4,1 x 3,4 x 1,5in (104 x 87 x 38mm)

Weight: 0,85lb (387g)

Power supply: 5V DC, external, medical grade

Power consumption: 1,5W (idle), 2,5W (playing)

Packaging

FSC cardboard 1,64oz/sq ft (500g/m²)
