MPN #WA84-C-N

$579.00

Save 19.6%, MSRP $720.00
Financing available
Free shipping in Canada. Conditions

Small diaphragm condenser microphone based on classic microphone circuitry



The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.

Boutique tone
We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that we feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.

The Capsule
The WA-84 utilizes a custom vintage-style capsule designed to emulate classic componentry and design techniques. The WA-84's capsule is carefully manufactured by an Australian capsule supplier and is precisely reproduced to vintage specs. We are pleased to offer such a high quality capsule in this microphone which allows us to nail the sonics of the most important component of any microphone.

The Circuit
The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET.

The Transformer
The WA-84 utilizes an American made CineMag USA transformer that contributes to the legendary creamy smooth top-end and the BEEFY mid to bottom-end one would hope to get from an 84-style small diaphragm condenser microphone.

The Capacitors
The WA-84 proudly utilizes Wima, polystyrene and tantalum through-hole capacitors throughout.
  • Utilizes a CineMag USA Transformer
  • Directional Pattern: Cardioid
  • Fully Discrete Vintage-style Signal Path
  • Vintage Capsule Reproduction

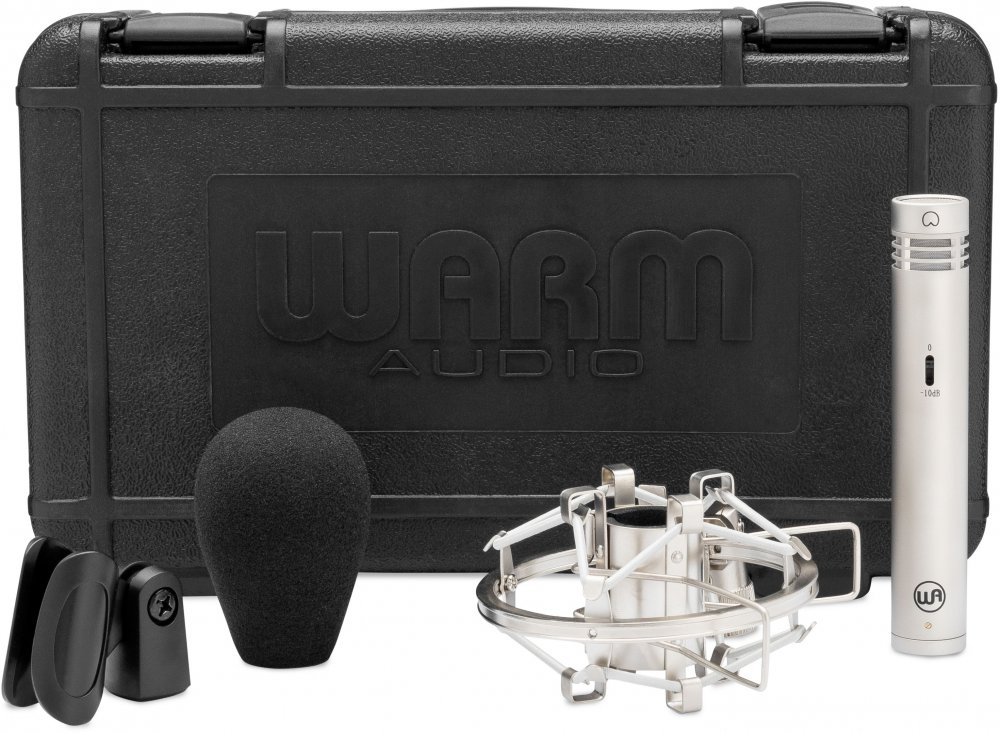

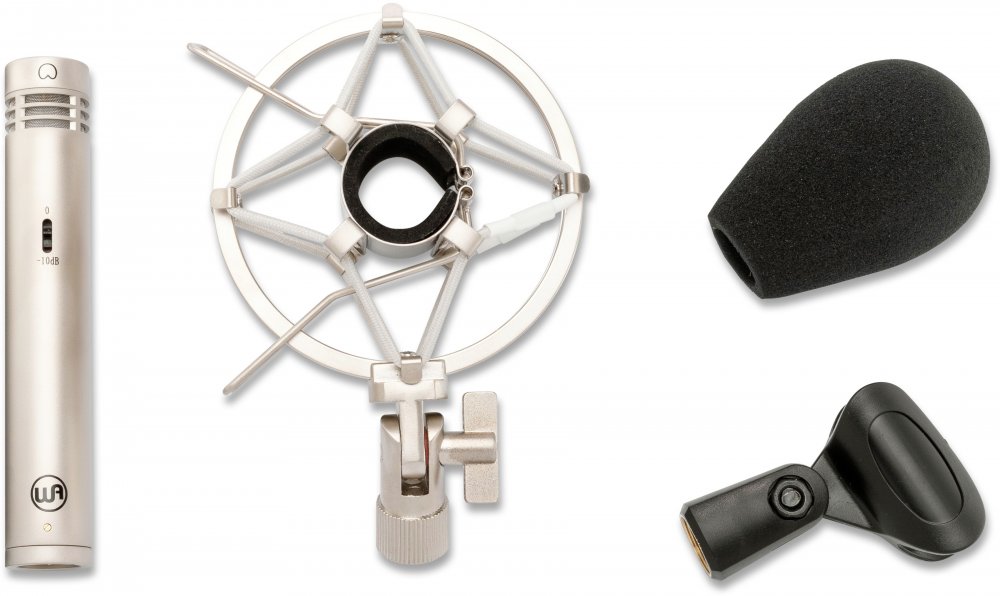

  • Package Includes: Microphone, Cardioid Capsule, Shock-mount, Mic Clip, Windscreen and Carrying Case
  • 48V Phantom powered
  • Frequency Range: 20Hz - 20kHz
  • Sensitivity: -39dB or 11mV/Pa @ 1kHz
  • Output Impedance: 200
  • Rated Load Impedance: 1k
  • Pad: 0db or -10db
  • Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
  • S/N Ratio: 78dBA (IEC651)
  • Equivalent Noise: 16dBA (IEC651)
  • Dynamic Range: 107dBA (IEC651)
  • Connector: 3-Pin Gold-Plated XLR
  • Weight: 122g each
  • Finish: Nickel
  • 4.0
    Ken N Burke
    Burnaby BC
    June 2, 2021
    Good value
    These are very good for the price. They sound very similar to KM84s in a mix. Worth buying. The parts are not cheap. I am happy.
