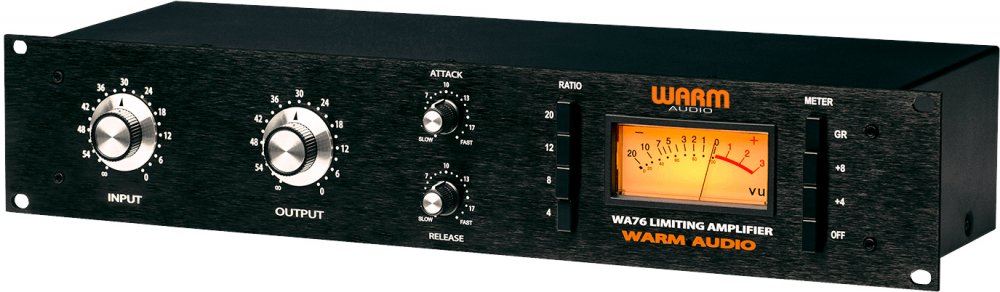

The WA76 has a fully discrete signal path and uses the original Reichenbach Engineering's (now CineMag) transformer design. The classic '76 was a major breakthrough in limiter technology, and used on hundreds of hit records since its inception. Engineers have craved the ultra-fast attack time and trademark sound of the '76 for decades, and now it is finally affordable!

True to the Classic '76 compressor in design and performance

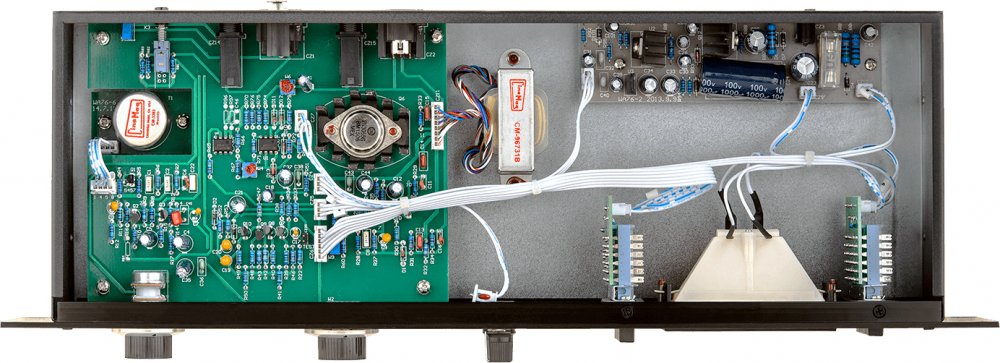

Completely discrete signal path

Modeled after the D revision

Utilizes USA made CINEMAG input and output transformers

Supports the famous "all buttons in" ratio setting

Ultra fast attack time

Class A line level output amplifier

Input impedance - 600 ohms, bridges-T control (floating)

Frequency Response ± 1 dB 20 Hz to 20kHz

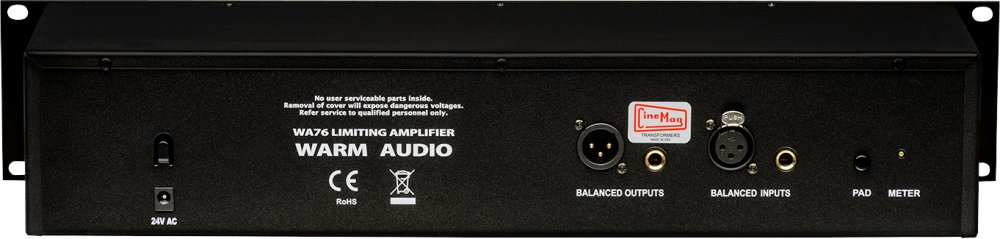

XLR and TRS inputs. XLR and TRS outputs

50db of gain

Less than 0.4% total harmonic distortion from 50 Hz to 20 kHz with limiting

Signal to noise ratio is greater than 74 dB at +25 dBm

EIN -104.1 dbm

Attack time, 20 microseconds to 800 microseconds

Release time, 50 milliseconds to 1 second

Meter provides dB gain reduction and dB output

Internal power supply, external 24v AC power transformer

19 Rackmount chassis, 2U
