Warm Audio WA-CX24
Stereo tube condenser with CK12 capsules, TAB transformers, 9 polar patterns, 180 degree capsule rotation, 149dB SPL, hand-tested, vintage C24 recreation.

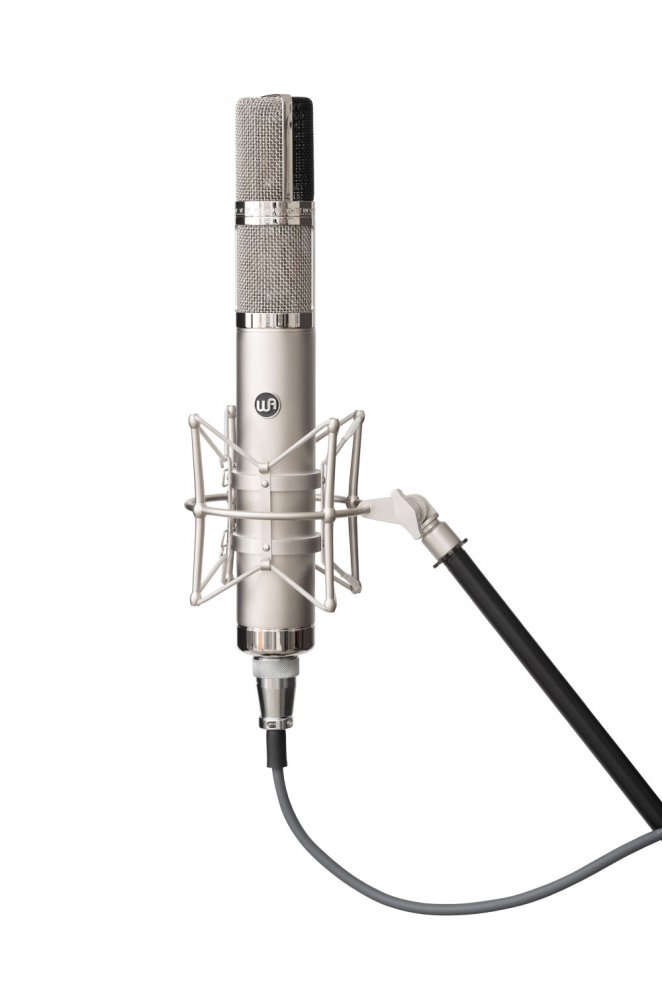

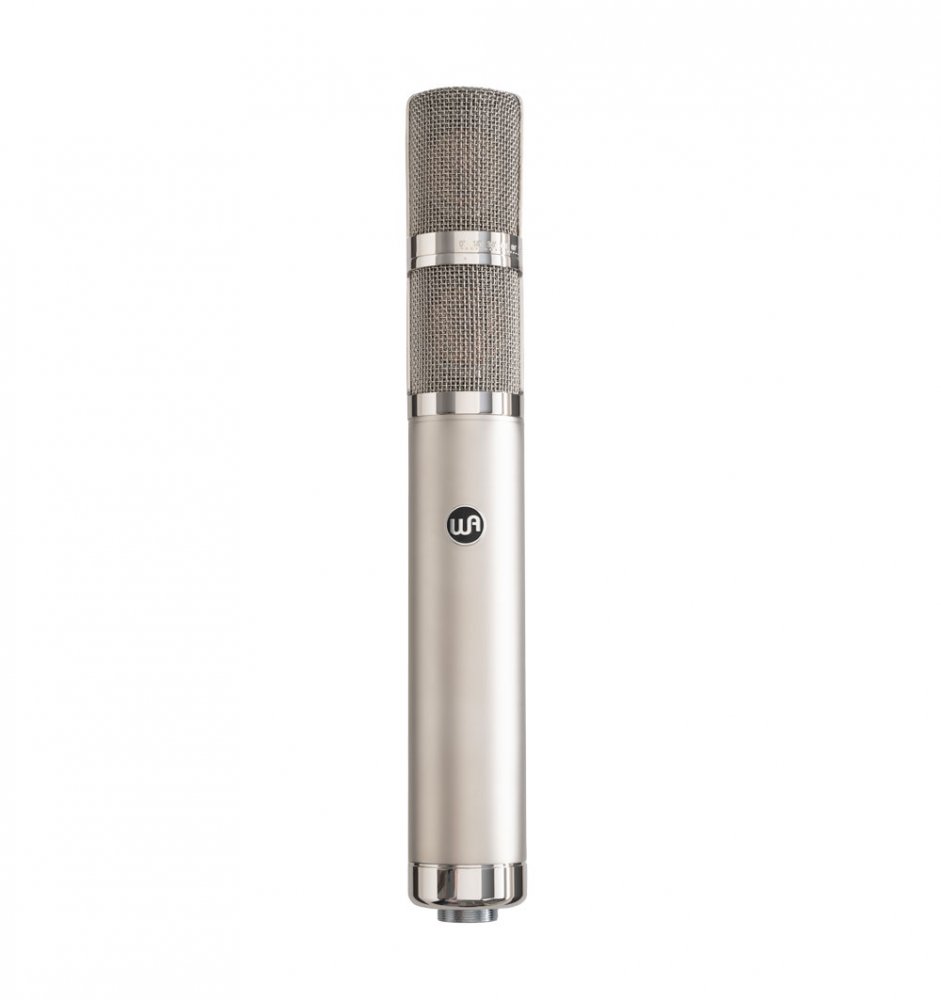

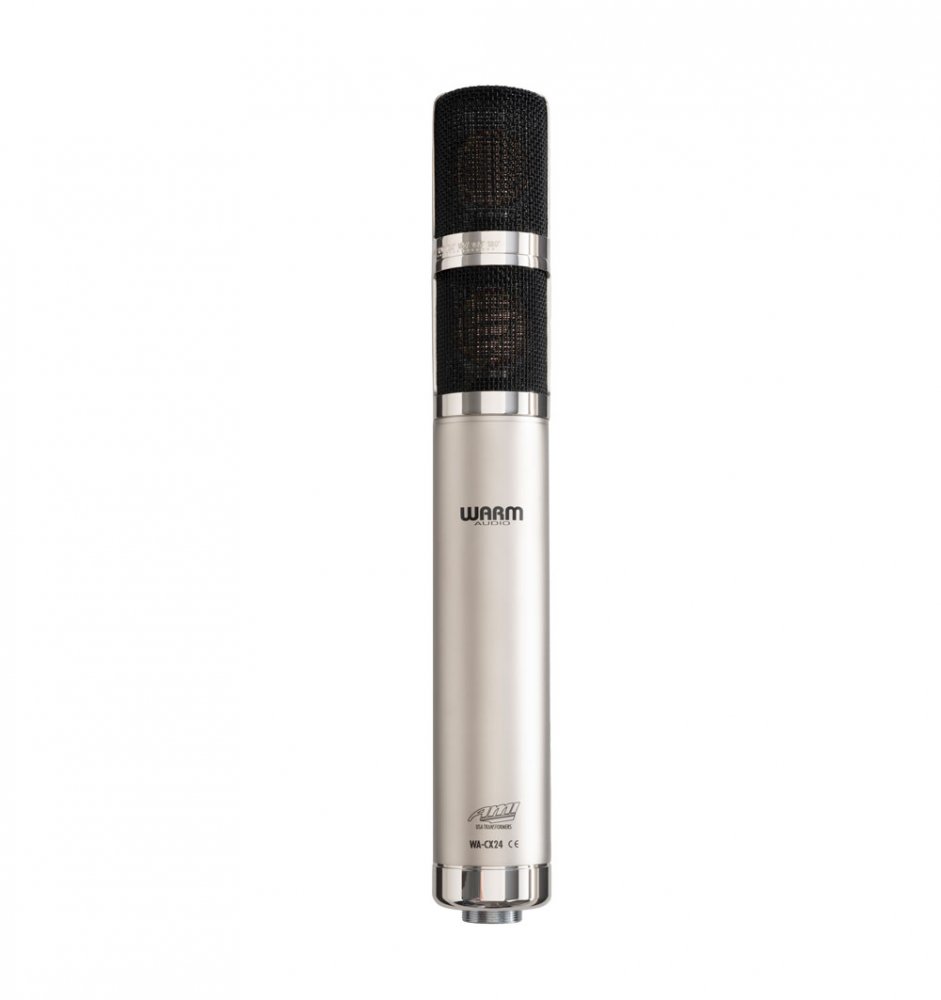

The Warm Audio WA-CX24 is a premium stereo tube condenser microphone inspired by the legendary AKG C24. Designed for high-end studio recording, it features dual CK12-style all-brass capsules, a premium 12AY7 vacuum tube, and custom TAB-Funkenwerk output transformers. Each capsule offers independent polar pattern control and full 180 degree rotation, making it ideal for stereo techniques like X/Y, Blumlein, and mid-side. With a wide frequency response (30 Hz"20 kHz), high SPL handling (up to 149 dB), and boutique-quality components, the WA-CX24 delivers rich, spacious recordings with exceptional detail and depth.
Features
Legendary Stereo Sound: Faithfully recreates the tone of the iconic vintage C24 mic, delivering rich lows, colorful mids, and smooth highs.Perfect for Stereo Applications: Ideal for capturing vocals, acoustic guitars, pianos, drums, and room ambience with depth and balance.True Stereo Alignment: Provides accurate stereo configurations for XY, Blumlein, mid-side, and custom mic setups with 180 degree capsule rotation and independent polar pattern switching.Selectable Pickup Patterns: Offers 9 total patterns per capsule, including cardioid, omnidirectional, and figure-8, for maximum versatility.Premium Vintage Components: Features all-brass CK12-style capsules, TAB-Funkenwerk USA transformers, a premium 12AY7 vacuum tube, and high-end capacitors.Built for Boutique Performance: Designed with high-quality materials and hand-tested in Austin, TX for reliable professional use.Included Accessories: Ships with a wooden mic box, power supply, shockmount, premium tube cable, IEC cord, and tweed flight case.
Specifications
General Features
Faithful recreation of a legendary stereo tube condenser mic (AKG C24)Premium components for vintage-correct soundDesigned for stereo vocals, pianos, acoustic guitars, drumsHand-tested and inspected in Austin, TX
Construction & Components
2x Custom edge-terminated, dual-backplate, all-brass vintage CK12-style capsules2x Custom T14 TAB-Funkenwerk (AMI) USA output transformersPremium 12AY7 vacuum tubePremium polystyrene and Wima film capacitorsFull 180 degree capsule rotationIndependently assignable polar-pattern switchingExternal IEC grounded PSU
Polar Patterns
9 total patterns: cardioid, omnidirectional, figure-86 additional mixed patterns (via 2 switches, 1 per capsule)
Performance
Frequency response: 30 Hz - 20 kHzOutput impedance: 200 OhmsMax SPL: 149 dBSignal-to-noise ratio: 73 dBEIN / Self-noise: 22 dBA
Connectivity & Cables
Gotham 5-meter GAC-9Premium 9-pin tube microphone cable
Physical Specs
Microphone dimensions: 14" x 2" (35.6 cm x 5 cm)Total weight: 20.5 lbs (9.3 kg)Mic only weight: 3 lbs (1.4 kg)

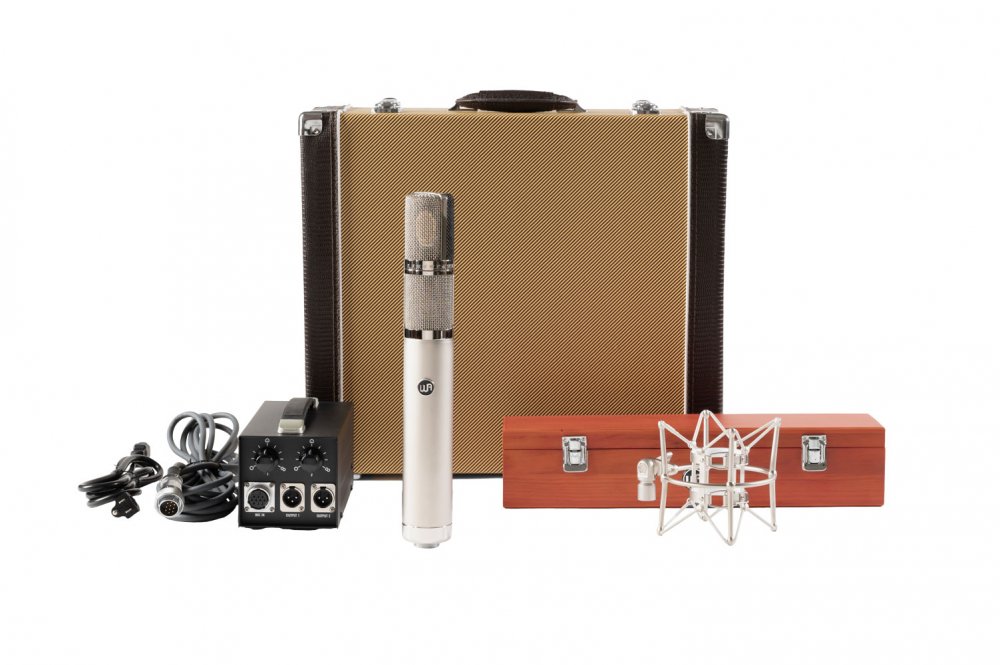

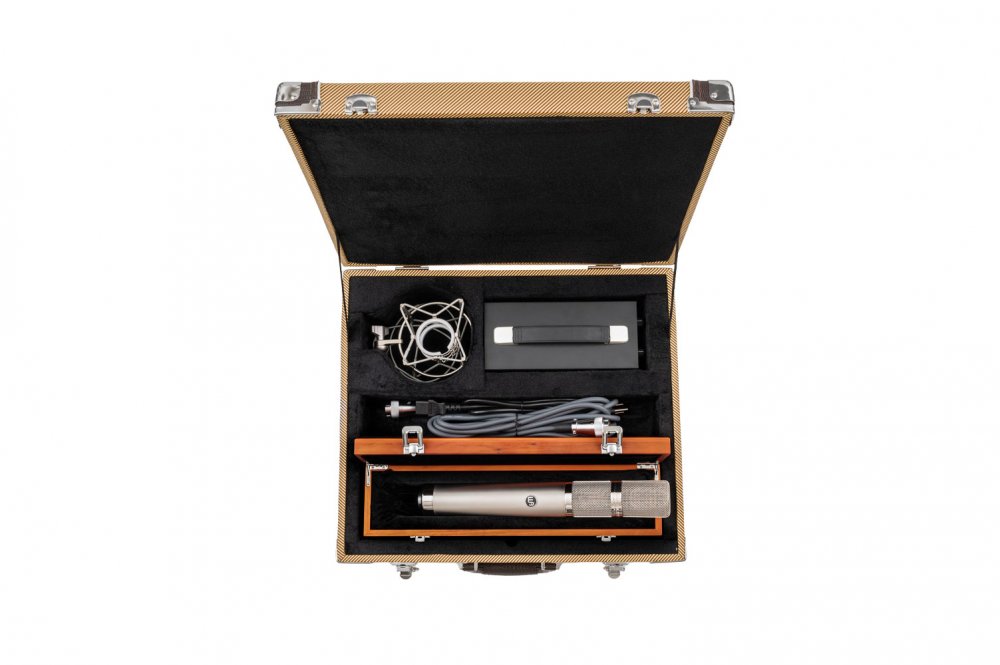

Included Accessories
Stereo microphoneWood boxPower supplyShockmount9-pin Gotham Swiss cableIEC cordTweed flight case
