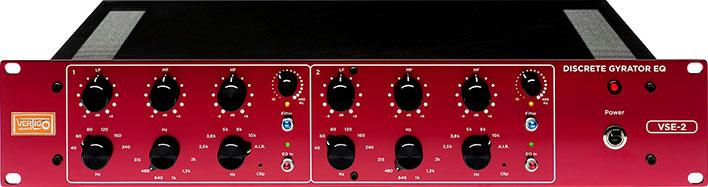

Vertigo Sound VSE-2 Gyrator EQ
MPN #VSE-2 Gyrator Equalizer
The VSE-2 a.k.a. The Discrete Gyrator EQ, is another big impact design and is setting a new benchmark for Tracking, Mix-Bus and Mastering applications.
Unlike other EQs on the market the VSE-2 is equipped with six discrete gyrators and lots of matchless detailed features.
This unique set-up makes the sound of the golden decade of analog recording equipment available in today's studio environment.

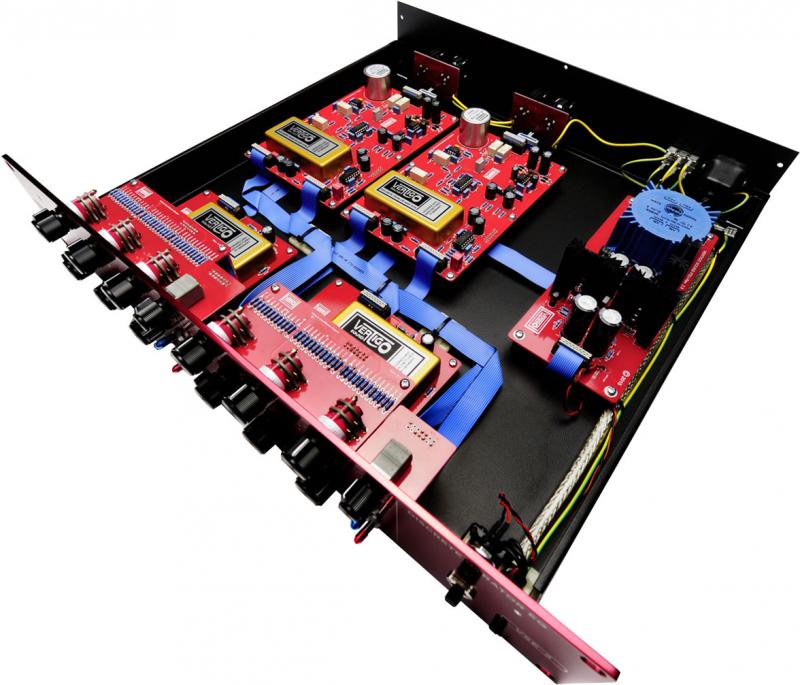

The Vertigo Sound "Discrete Triple Gyrator 1972" uses a fully discrete circuitry, while other devices on the market realize the Gyrator using an standard IC.
The well thought out design of Vertigo's Gyrator delivers a tube unit like distortion spectrum. The distortion is produced by the Gyrator itself at the frequency you dial in.
Features
Discrete gyrator based Equalizer conceptDiscrete operational Cut and Boost amplifier +-8db18 selectable frequencies on each channelDual Mono DesignHi Pass Filter 10Hz-400Hz with bypassTransformer balanced inputAll EQ parameters controlled by rotary switchesUnique A.I.R Mode (Enhancement of the auditory threshold)Smooth and PunchySuper Low Noise (-98dBu)Cut & Boost steps +-: 1dB, 2dB, 3,5dB, 5,5dB, 8dB
Specifications
Jensen Balanced In. That 1646 or Burr Brown Balanced OutDynamic Range: 122 dBFrequency response: 10 Hz ... 80 kHz (- 3dB)Max. Output Level: + 23dBu / 600 Ohm balanced floatingSignal to Noise Ratio at + 6dBu = 105dB (20 ... 20 kHz, unweighted, RMS)Noise: - 99dBu (20 Hz - 22 kHz - unweighted, RMS) @ 0dB Unity GainCrosstalk between channels: > 100dBPower consumption: max 10 Watts
