Tree Audio Tree Pre

MPN #TreePre

$1532.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

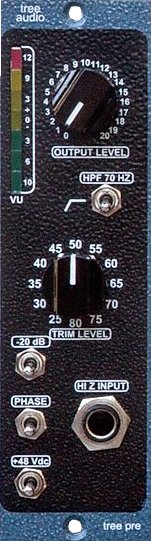

500 series microphone preamp featuring two Inward Connection's VF600 all-discrete Amp blocks

Features

Circuitry features two Inward Connection's VF600 all discrete Amp blocks

LED VU meter that monitors the output level

+48VDC phantom power switch

Phase reverse switch

-20dB pad switch

Hi-Z low level line input 1/4" phone jack for guitars, keyboards and low level instruments

12-position rotary trim (5dB per step) 25dB to 80dB selectable range

70 Hz hi-pass filter

Output level rotary control

Balanced input and output transformers

Fits standard 500 series slot configuration, mechanically and electrically

Specifications

Input Impedance
Mic Input: Transformer balanced, 200 ohm nominal input impedance source. Actual impedance
1200 ohms broad band

Hi-Z Input: >100K
Output impedance: 600 ohms nominal transformer balanced output
Frequency Response: +/- 0.5dB@20Hz to 50KHz
Equivalent Input Noise: -129dBm
Output Signal to Noise: -95dB
THD + Noise: +4dBu@1KHz: .015% (20Hz t 20KHz)
Maximum Output Level: +21dBm
