$36296.00

Financing available
This product is not available online. Learn more

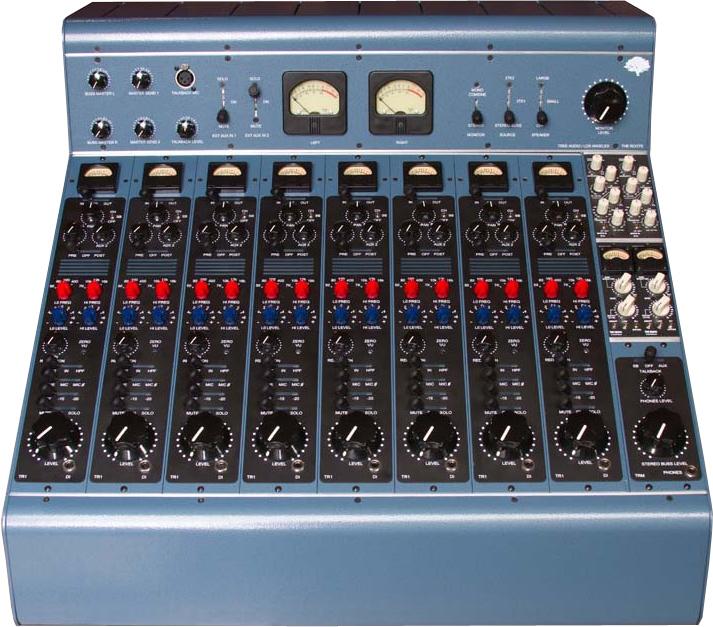

The Roots console is inspired by the past with the best of today's technology. An 8-channel, tube/hybrid, full-featured, recording console, hand-built in the USA.



Console Features
  • All tube EQ and limiter on each channel
  • 4 slots for 500 Series modules
  • Vacuum tube regulated supply for all tube input modules

  • INPUT MODULE FEATURES (FROM TOP TO BOTTOM)
  • Meter
  • Meter select (input, gain reduction, output)
  • Pan
  • Stereo buss switch (removes signal from stereo buss for direct out)
  • Aux send 1
  • Aux send 2
  • Pre, off, post switch
  • Lo Freq EQ - 50 Hz, 80 Hz, 100 Hz ,400 Hz
  • Hi Freq EQ - 7K, 10K, 12K, 16K
  • Gain reduction pot (limiter)
  • Limiter switch (out, in , HPF) 250 HZ 12DB per octave
  • Line, mic, mic reverse phase
  • Pad switch (off, -10, -20)
  • Mute, on , solo
  • Big knob level pot

  • METER BRIDGE
  • Buss Master 1 & 2
  • Aux master 1 & 2
  • Talkback mic XLR
  • Talkback level
  • External Aux in 1 (mute, on, solo)
  • External Aux in 2 (mute, on, solo)
  • Monitor
  • Source Select
  • Speaker Select
  • Big knob monitor level

  • REAR PANEL
  • Mic in, line in, direct out
  • Phantom power switch (all modules and talkback mic)
  • Master section ins and outs
  • Control room monitor outputs
  • If used as a direct out with no bussing, all pure transformers and tubes
  • When use thru the bussing, Inward Connections SP690 all discrete blocks
  • Dimensions for an 8 channel Roots console:
  • Width: 27.35"
  • Height: 15"
  • Depth: 30.654"
  • Weight: 85 lbs.

  • Power supply -
  • Width: 19"
  • Depth: 14.75"
  • Lbs: 45 lbs.
  • Height: 7"
  • View more products from Tree Audio
