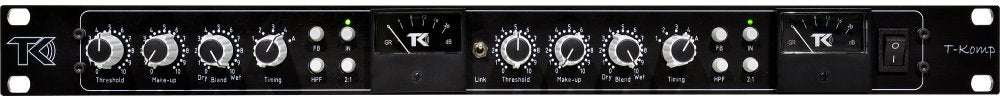

TK Audio T-KOMP
UPC/EAN #7350097200238
MPN #TKOMPR
The T-Komp has a unique design which offers a modern take on the old vari-mu ratio curve.
The ratio is level dependent and increases with the signal level, a feature that will give you numerous possibilities.
To make the T-Komp more useful it has two ratio ranges. The first one goes up to 20:1, perfect for instrument tracking and smashing drums etc., the second, 2:1, is a more narrow range which makes it more suitable for bus compression.
The T-Komp can be selected between feed-forward mode for a punchy, modern response or feed-back mode with a smoother, more musical response.
The RMS detector has five settings, four from fast to slow where number four, the slowest, is similar to the old 160VU. The fifth position is a program dependent adaptive mode.
Features
Ratio which increases with the signal levelTwo ratio ranges, 1:1 to 20:1 or 1:1 to 2:1Feed-forward or feed-back modeFive RMS settings, fast to slow and an adaptive modeBlend control for parallel compression
Specifications
Input impedance: 24kohmOutput impedance: 50ohmMax in/output level: +26dBuFrequency response: 20Hz to 20kHz +/- 0,1dBSignal to noise ratio @ 0dBu: better than 94dBTHD: level and compression dependent, mostly even harmonics
Features:
Threshold
Make-up gain: 0 to +20dB
Blend control: from dry to wet
Timing
fast
medium fast
medium slow
slow (160VU)
program dependent adaptive mode
FB: selects feed-back mode
HP filter: 150Hz, -6dB octave
In: compression in/out
2:1: selects a more narrow ratio range
Gain reduction meter
Link switch
115v or 230v, selectable
