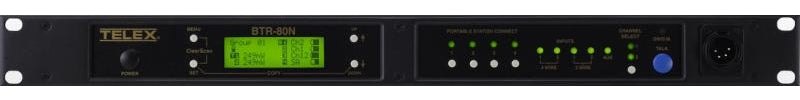

Telex BTR-80N
MPN #BTR-80N
The Telex BTR-80N Narrow Band 2-Channel UHF Synthesized Wireless Intercom System is a revolutionary product offered in today's ever-changing and shrinking RF environment.
Providing an unprecedented 25 kHz of modulated band width, the BTR-80N narrow band system will allow more users per channel in the cramped UHF spectrum.
While providing excellent audio performance, the Narrow Band system provides all of the standard features of the Telex RadioCom BTR-800 system, such as DSP digital processing and Intelligent Power Control. Additional features include selectable transmitter power output, selectable receiver squelch control, RF meter display on base station and beltpack displays, remote battery indicators on base station display, low battery tone indicator on beltpack, AC or DC power input on base station, simultaneous 2 Wire and 4 Wire operation and the ability to expand a system to an unlimited number of users in "half-duplex" with the First-On-Latch-Out feature. The BTR-80N fits in a standard 19-inch equipment rack and is 1 rack unit high. The TR-80N and TR-82N beltpacks are constructed of durable and lightweight magnesium and provide up to 10-12 Hours of operation on AA alkaline batteries.
Features
Flexible Number of Beltpack Users per Base StationRF meter on BTR-80N, TR-80N and TR-82NSelectable Output PowerUser-adjustable receiver squelch controlWireless talk-around (WTA) and Stage Announce (SA)25 kHz RF Bandwidth
Specifications
Color : BlackDepth : 14" (355.6 mm)Form Factor : RackmountFrequency Band of Operation : 482 - 698 MHz (TV 16 to TV 36 and TV 38 to TV 52)Function : Base StationHeight : 1.75" (44.5 mm)Operating Temperature : -20 C - 55 CPower Requirements : 100-240 VAC, 50-60 Hz ; 12-15 Volts DCTransmit Power : Selectable: (BTR-80N: 249 mW - 10 mW, TR- 80N/TR-82N: 100 mW - 5 mW)Weight : 7.28 lbs (3.3 kg)Width : 19" (482.6 mm)Wireless Technology : UHF
