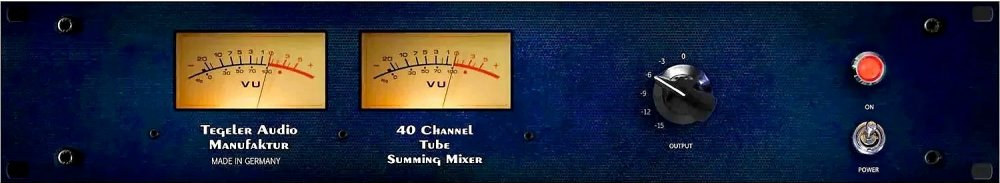

Tegeler Audio Tube Summing Mixer TSM
MPN #Tube Summing Mixer (TSM)
High-quality tube summing mixer with 2x20 channels for which InTheBox mixing is no longer enough
Many grieve the sound of the era of analog mixer consoles but don't want to waive the modern conveniences like total recall.
The Tube Summing Mixer gives you the opportunity to bring the sound of analog mixing with the benefits of a digital workflow to the comfort of your own studio.
The analog signal path, tubes and matching transformers, are responsible for processing the signals. The result is a typical analog sound; open & defined yet warm. The mix is not trapped in the box but opens up the whole room.
With 2 x 20 channels, there are enough inputs available to glue together the most demanding mixes. If 40 inputs aren't enough for you, several Tube Summing Mixers can be cascaded to increase the input count. As you can use more than one Tube Summing Mixer together, nothing stands in the way of your surround mixes.
To ensure the exact reproducibility of a mix, the Tube Summing Mixer is equipped with a stepped output switch instead of a potentiometer. This allows a practical reduction at -3dB increments.
If you wish to insert mono signals into the mix, just insert the signal into the lower TRS jack. The mono signal is then automatically distributed to both channels simultaneously making it appear in the phantom center of the mix.
Features

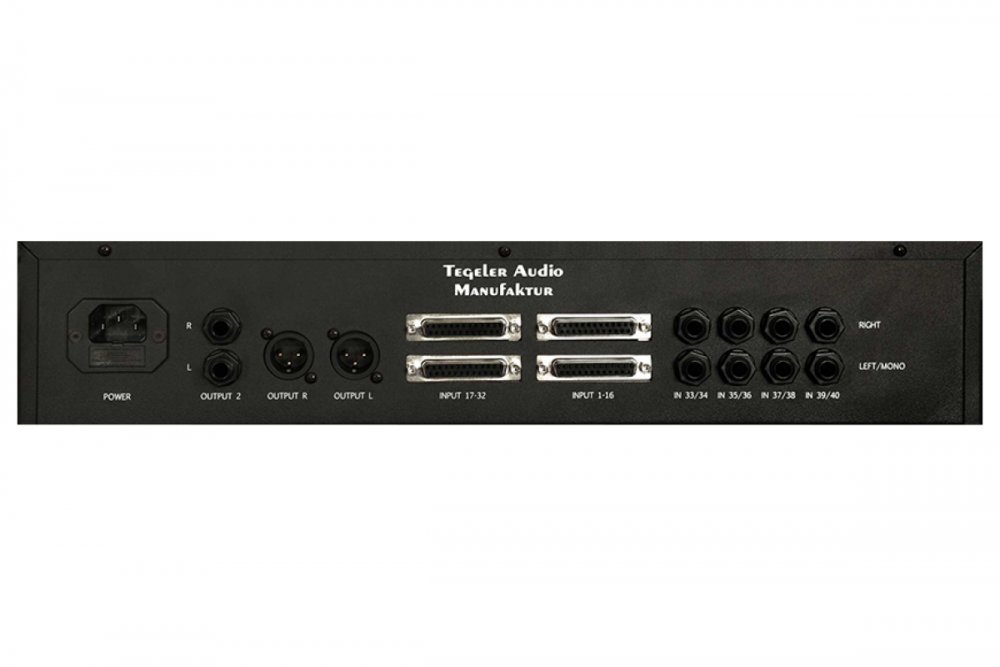

2 x 16 balanced inputs via 4 sub D connectors (XLR or TRS via adapter cable, Tascam layout)2 x 4 balanced TRS inputs (Neutrikstereo jack)Internal mix bus with up to +22 dBuActive Tubes and Transformer output stageIlluminated VU metersOutput Level switch in -3db increments
Specifications
Frequency Response: 20Hz - 40kHzMaximum Input Level: +22 dBuInput Impedance: 10kOutput Impedance: < 600Maximum Output Level: +24 dBuDynamic Range: 110 dBVoltage: 230 V~/50Hz or 115V~/60HzFuse: 500mA slow-blowMaximum Power Consumption: < 25 WDimensions: 2 U, H:88.1 mm, W:483 mm, D:250 mm
