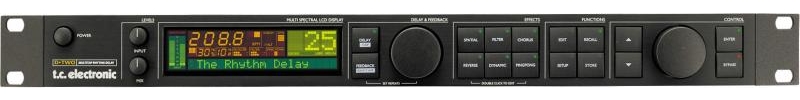

Delay dreams coming true. The TC Electronic D-Two is a multitap rhythm delay.
Heralded Heritage
Think of delays and chances are our delays are what you hear in your head. Not to toot our own horn (though we'd probably never leave the house again if we could), but our delays are the best out there - end of story. With D-Two we wanted to combine our awesome delays with fun - we've added the truly musical Rhythm Tap feature: Not only tempo, but actual rhythm patterns can be tapped directly on the unit for results that are sure to quickly whip your creativity to new highs!
TC quality delays and effectsMultitap rhythm delayAbsolute repeat control
TC Quality. 'Nuff Said.
We're not into repeating ourselves - we like to let our delays do that. They sound great and D-Two houses some cool chorus effects and soem sweet filters. All the TC classics are here from a Ping Pong to a Reverse delay, all ported straight from our 2290.
Terrifically Tappable
D-Two offers 3 ways to control your delays: 'traditional', which is the setup used by every delay unit since the dawn of mankind, 'straight' which allows you to control the exact number of repeats and 'rhythm mode' which allows you to tap a tempo.
Control Your Repeats
Absolute repeat control is a nifty feature that allows you to do exactly what you thought it did when you read it: absolutely control your repeats. It's great for sculpting some awesome sounds with precision and ease.
Multitap rhythm delayAbsolute repeat controlUp to 10 seconds of delay50 factory presets/100 user locations24-bit A/D-D/A convertersS/PDIF digital I/O, 44.1-48kHz1/4" jacks - dual I/O24-bit internal processingSix unique direct-access featuresSpatial effect provides extra wide delay with a single keystrokeFiltering as repeats decayPing-Pong lets you pick any of five patterns and set the relationship between panning speed and delay tempoReverse Delay at the touch of a keyDynamic mode sets release time and threshold to let the input signal control the level of delayChorus and Flanger effects
DIGITAL INPUTS AND OUTPUTS
Connectors: RCA Phono (S/PDIF)
Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
Output Dither: HPF/TPDF dither 24/20/16/8 bit
Sample Rates: 44.1 kHz, 48 kHz
Processing Delay: 0.1 ms @ 48 kHz
Frequency Response DIO: DC to 23.9 kHz ± 0.01 dB @ 48 kHz
ANALOG INPUTS
Connectors: 1/4" phone jack, balanced
Impedance, bal/unbal: 21 kOhm / 13 kOhm
Max. Input Level: +24 dBu
Min. Input Level for 0 dBFS: 0 dBu
Sensitivity @ 12 dB headroom: -12 dBu to +12 dBu
A to D Conversion: 24 bit, 128 x oversampling bitstream
A to D Delay: 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz
Dynamic Range: 100 dB typ, 20 Hz - 20 kHz
THD: typ < 92 dB (0,0025 %) @ 1 kHz
Frequency Response: +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk: <-95 dB, 20 Hz to 20 kHz
ANALOG OUTPUTS
Connectors: 1/4" phone jack, balanced
Impedance bal/unbal: 40 Ohm
Max. Output Level: +20 dBu (balanced)
Output Ranges: Balanced: 20/14/8/2 dBu, Unbalanced: 14/8/2 dBu
D to A Conversion: 24 bit, 128 x oversampling bitstream
D to A Delay: 0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz
Dynamic Range: 104 dB typ, 20 Hz to 20 kHz
THD: typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
Frequency Response: +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk: <-100 dB, 20 Hz to 20 kHz
EMC: Complies with EN 55103-1 and EN 55103-2, FCC part 15, Class B, CISPR 22, Class B
CONTROL INTERFACE
MIDI: In/Out/Thru: 5 Pin DIN
Pedal: 1/4" phone jack
GENERAL
Finish: Anodized aluminum front, Plated and painted steel chassis
Display: 23 character / 280 icon STN-LCD display
Dimensions: 19" x 1.75" x 8.2" (483 x 44 x 195 mm)
Weight: 4.1 lb. (1.85 kg)
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption: <15 W
