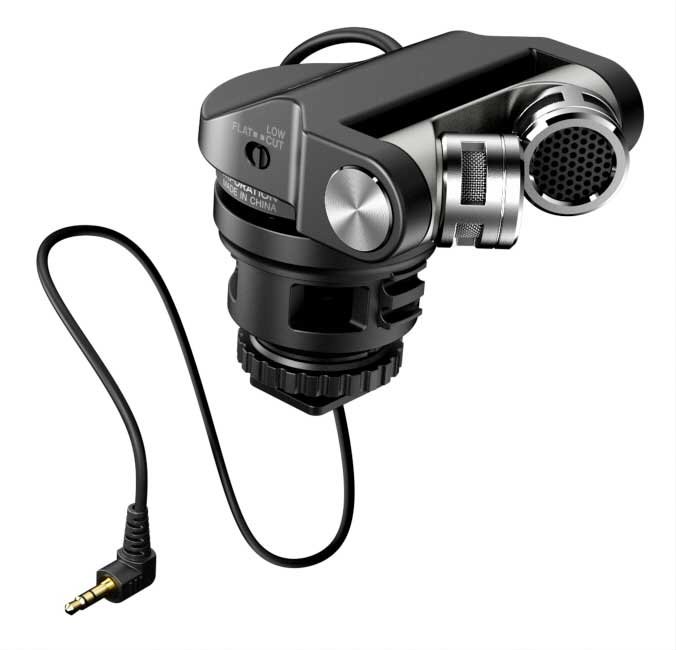

The TM-2X is an X-Y stereo condenser microphone that can record high quality sounds appropriate for high-quality video filmed with a DSLR (digital single-lens reflex) cameras



The TM-2X has been developed by thoroughly investing know-how on linear PCM recorders and professional acoustic equipment that TASCAM has accumulated in order to create an accessory in which a DSLR user can easily enjoy a high-sound quality filming.

X-Y stereo microphone method, directional and optimal for recording from a specific source
The dual unidirectional condenser microphone unit that focus records sounds in front was configured using an X-Y pattern. The X-Y pattern is a type of a stereo recording method and records sounds while reducing the hollowing out effect (when the central sound becomes weak). As such, this is an effective recording method when filming a specific target. A vari-angle microphone structure that allows 180-degree rotation was adopted, allowing for mic placement in accordance to the target. The audio circuit design, including the microphone, went through several listening tests in order to select the parts that are best for achieving great sound quality. The TM-2X can handle sound pressure up to 120dB SPL, and as such, can record sound without distorting even when filming a target with a high volume.

Floating structure that doesn't completely fix the microphone to the body reduces noise
In conjunction to implementing the high-sound quality of the circuit itself, external noise measures for the TM-2X were also explored. Extra attention was placed on the noise characteristics of a DSLR camera, with various measures implemented to counterattack that. A floating structure was employed for the mic unit and the shoe mount section, reducing handling noise from the mic unit. In addition, a noise isolation arm was included in order to physically reduce operational noise by keeping a distance from the noise source. If the operation noise from the camera's auto-focus is an issue, mounting the noise isolation arm will reduce such noises. Other attachments include the low-cut filter, which eliminates low-frequency noise and the fur windscreen that reduces wind noise when filming outdoors.

Easy high-quality sound recording available without needing complex setup
Despite having functionality on par with professional acoustic equipment, the TM-2X is extremely easy to use. The only preparation required is to mount it on a camera and connect the stereo mini-jack plug into the camera's external port. All you have to do after this is set the camera's recording level in accordance with the film's target subject; you are then free to enjoy filming at a level of sound quality that surpasses filming with a camera alone. Because the TM-2X is an analog acoustic device that does not contain any digital circuits, it can be used for other applications than with DSLRs, including mirrorless SL cameras, compact digital cameras, and video cameras.

A must have camera accessory when filming with a DSLR
By simply mounting TM-2X on your camera, you can perform high-quality video recordings in which realistic audio is added to depth-of-field imagery characteristic to DSLR. Just like with exchangeable lenses and strobes, this is a new type of camera accessory that camera fans will want to take along with them in their camera bag. *Patent application already submitted.
  • Directional stereo condenser microphone in an X-Y configuration
  • Designed with the capacity to easily handle high sound pressures up to 120dB SPL
  • Floating support structure used to reduce handling noise
  • Included noise isolation arm to reduce lens operation noise
  • Low-cut filter to eliminate any unwanted low frequencies
  • Included furry windscreen
  • Two-stage output level adjustment switch ensures compatibility with a variety of cameras
  • Vari-angle microphone structure allows 180ยบ rotation for optimal mic placement
  • Included shoe adapter (ISO/JIS specification compliant) can be attached to the camera accessory shoe
  • Tripod mounting threads enable the unit to be attached to a camera tripod
  • 13" (33cm) connection cord supports connections in a variety of manners
  • Lightweight design (2.6 oz. / 75 g) that won't interrupt camera balance or handling
  • Stereo mini-plug output jack
  • Operates on plug-in power from the connected unit
  • Microphone type: Cardioid
    Frequency range: 50Hz to 20kHz

    Input output ratings
    Maximum input level: 120dB SPL (at 1kHz, SENS: H, LCF=Flat, RL: 2.2k, Vcc: 2.5V)
    Output impedance: 1.6k (RL: 2.2k, Vcc: 2.5V)
    S/N ratio: 74dB (at 1kHz, 1Pa, A weighted)
    Mic sensitivity switch: SENS H:-37dB, SENS L:-52dB (at 1kHz, 0dB=1V/Pa, RL: 2.2k, Vcc: 2.5V)

    Connection cable/plug
    Cable length: 13" / 33 cm
    Plug: 1/8" (3.5mm) TRS Stereo Mini plug (Tip: L-ch, Ring: R-ch, Sleeve: GND) x 1
    Power: Plug-in power (JEITA standard CP-1203A)

    Dimensions (WxHxD)
    TM-2X main unit: 2.24" x 2.3" x 2.7" / 57 x 59 x 69 mm (excluding cable and connectors)
    Noise isolation arm: 1.34" x 2.24" x 5.6" / 34 x 57 x 142 mm

    Weight
    TM-2X main unit: 2.4 oz. / 75 g
    Noise isolation arm: 1.5 oz. / 41 g

    Operating temperature: 23F to 142F / -5 to 45C
    Accessories: Fur windscreen, Noise isolation arm, Owner's Manual, Warranty
