TASCAM  |  SKU: 16136

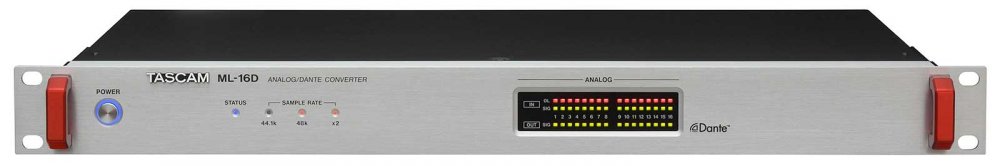

Tascam ML-16D

Multi-Channel Converters

The TASCAM ML-16D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante network using external breakout devices

$3,489.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

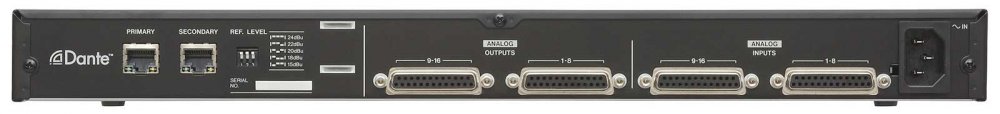

The ML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into - or extracted from - the Dante audio stream.

Features

Dante focused interface for connection of external audio into or out of a Dante audio network

16 channel analog line input and 16 analog line outputs (48k/96kHz) using four D-Sub connectors

Dual redundant Ethernet jacks which support both primary and secondary connections

Dante primary and secondary connectors support redundancy

AES67 and Ravenna compatible

Dante Controller for flexible routing

Up to 96kHz/24-bit quality

Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals

Reference level dip switches for selectable DBu level metering

LED display for signal level and overload per input/output channel

Firmware updatable via Dante port

Equipped with D-sub 25-pin connectors as line input/output connectors

1U rack mount size

Optional BO-32DE (D-sub/Euro Block breakout box) supports Euro Block connectors

Optional BO-16DX/IN and BO-16DX/OUT (D-sub/XLR breakout box) support XLR connectors

Specifications

Formats


Sampling frequency: 44.1k / 48k / 88.2k / 96k Hz
Quantization bit rate: 16 / 24-bit

Analog Inputs/Outputs

LINE INPUTS


Connector: D-sub 25pin female x 2
Locking screws: No.4-40 UNC (inch type)
Nominal input levels: +4dBu,
+6dBu (only when maximum input level is +15dBu)
Maximum input levels: +24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)
Input impedance: 10k or higher

LINE OUTPUTS


Connector: D-sub 25pin female x 2
Connector: No.4-40 UNC (inch type)
Output impedance: 200 or lower
Applicable load impedance: 2k or higher
Nominal output levels: +4dBu,
+6dBu (only when maximum output level is +15dBu)
Maximum output levels: +24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)

PRIMARY/SECONDARY


Connector: RJ-45 x 2
Transmission protocol: Dante
Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
Cables: Category 5e or faster STP cables
Power: AC 100 - 240V, 50/60Hz
Power consumption: 14W
Dimensions (WxHxD): 19.0" x 1.77" x 11.96" / 483 x 45 x 303.8 mm
Weight: 7.3 lbs. / 3.3 kg
Operating temperature range: 32F to 104F / 0C to 40C
Standard accessories: Power cord, Rackmount screw kit, Owner's Manual (including warranty)
