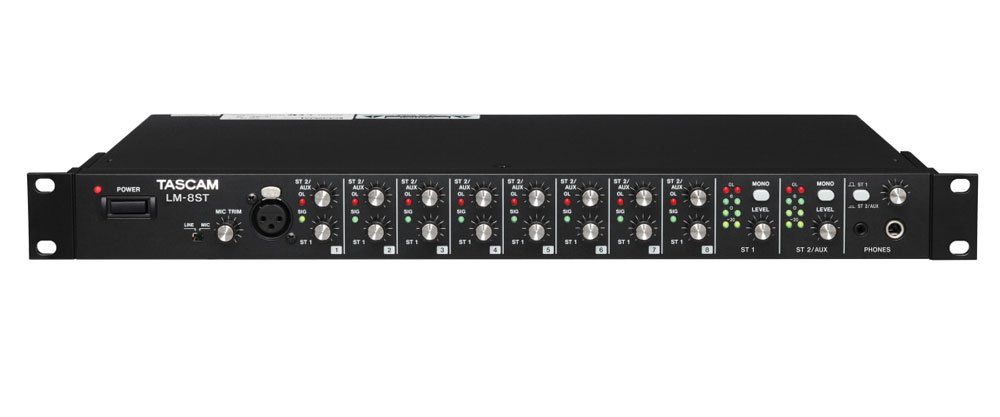

Tascam LM-8ST

8 Stereo Input Channels: Balanced 1/4" TRS inputs per channel with "10/+4dB level switch for flexible source handling.

Mic Input with Trim Control: XLR mic input on Channel 1 for announcements or single mic setups-ideal for stage or PA use.

Dual Stereo Output Busses: Two independent mix busses (ST1 and ST2/AUX) with XLR and RCA outputs to route separate mixes.

Flexible Routing Options: Each channel can be routed to ST1 or ST2/AUX, either pre- or post-fader-great for sub-mixing or effects sends.

Headphone Monitoring: Dedicated 1/4" and 1/8" headphone outputs with individual level control for convenient monitoring.

Cascade Ready: Buss input/output lets you expand the system by connecting multiple LM-8ST units.

Visual Metering: Every input channel features a 2-segment LED level meter for quick signal checks.

Compact and Rack-Ready: 1U rackmount design makes it ideal for installations, live rigs, or studio submixing.

General Specifications

8 stereo channel 4-buss line mixer

8 stereo 1/4 inch TRS balanced inputs with -10 dB or +4 dB switch

Mic input with trim control on front panel

ST1 and ST2 AUX level control per channel

ST1 and ST2 AUX master level controls

Each channel switchable to ST2 pre-fader or AUX post output

2-segment LED meter per channel

1U rack mountable

Ground lift switch and terminal

Inputs

Mic In: XLR-3-31 x1, impedance 2.4 kOhms, -58 dBu to -12 dBu nominal, +10 dBu max

Stereo In: 1/4 inch TRS jack x8 pairs, impedance 16 kOhms, +4 dBu nominal, +24 dBu max

Master Buss In: 1/4 inch TRS jack x1 pair, impedance 16 kOhms, +4 dBu nominal, +24 dBu max

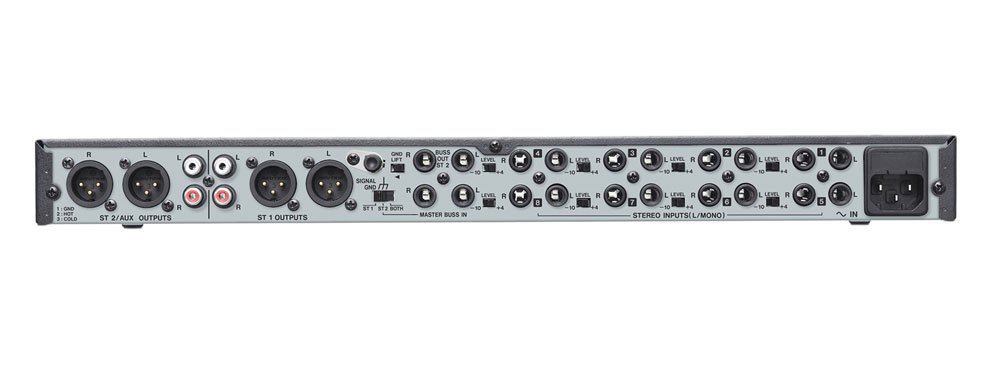

Outputs

ST1 ST2 AUX Out (XLR): XLR-3-32 x2 pairs, impedance 94 Ohms, +4 dBu nominal, +24 dBu max

ST1 ST2 AUX Out (RCA): RCA pin jack x2 pairs, impedance 200 Ohms, -10 dBu nominal, +10 dBu max

Buss Out: 1/4 inch TRS jack x1 pair, impedance 94 Ohms, +4 dBu nominal, +24 dBu max

Phones Out: 1/4 inch stereo phone jack x1, 250 mW + 250 mW (32 Ohms)

Audio Performance

Frequency Response: Phones Out: 20 Hz to 50 kHz +/-3 dB, Buss Out: 10 Hz to 100 kHz +/-3 dB

S/N Ratio: Phones Out: 80 dB or greater A-weighted, Buss Out: 80 dB or greater A-weighted

THD: Phones Out: 0.07 percent or less, Buss Out: 0.03 percent or less

Channel Separation: Phones Out: 50 dB or greater, Buss Out: 70 dB or greater

Crosstalk (Buss Out): 65 dB or greater

Power

Power Supply: AC 100 to 240 V, 50/60 Hz

Power Consumption: 15 W

Physical

Dimensions: 482 mm x 44 mm x 280 mm

Weight: 3.8 kg

Included Items

LM-8ST

Power cord

Rackmount screw kit

Warranty card

Owner's manual
