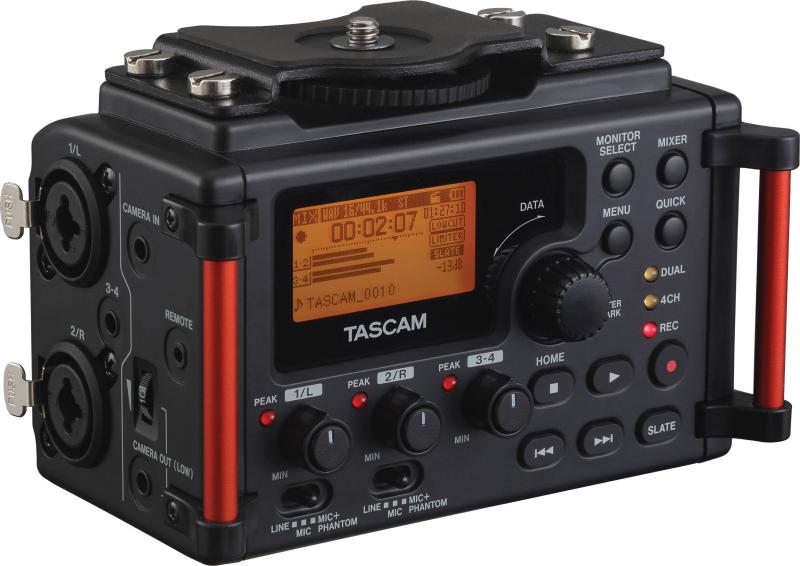

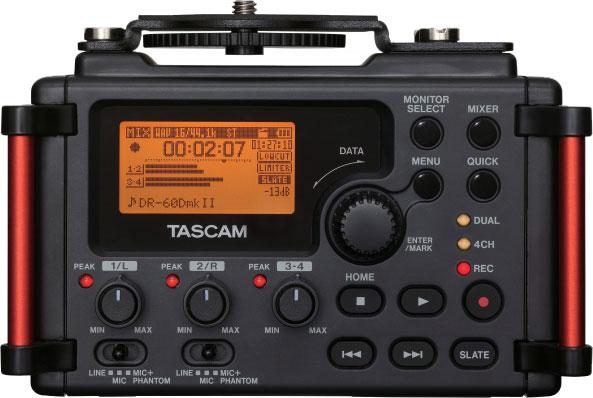

Tascam DR-60DmkII
UPC/EAN #043774031023
MPN #DR-60DMKII
$329.00
Save 19.8%, MSRP $410.00
4-track Portable recorder/mixer designed for DSLR filmmakers
The streamlined design fits perfectly under a DSLR camera rig, without relying on bulky recorders or the limited audio quality of the camera's microphone in. ProSound Network Best of Show
The DR-60DmkII is the next generation of 4-track solid-state recording, based on TASCAM's decades of recording innovation. The upgraded HDDA microphone preamps provide up to 64dB of gain, capturing every nuance of a performance. Up to four channels at a time can be recorded to the internal SD Card, at up to 96kHz/24-bit WAV file resolution. Two of the mic inputs utilize locking XLR connectors with 48V phantom power, the other two use an 1/8" stereo connector for wireless and lavaliere microphones.
A Camera Output sends the mic mix to the camera for later synchronization, and a Camera Input is provided for monitoring playback. An additional headphone out and line out assist the crew during filming. The DR-60DmkII is designed for low-noise operation, including soft touch buttons and dedicated gain controls.
Multiple recording modes are available on the DR-60DmkII. Four-Channel Mode records all four microphone inputs. Dual Recording is an alternate setting, capturing a copy of your audio at a lower level for a distortion-free safety track. Menus and operation are well laid out, owing to decades of innovative recording design.
Reach beyond the limited performance of your camera's audio to capture the other half of your film. At a cost less than competing preamps, the TASCAM DR-60DmkII is the ultimate 4-track recorder designed for filmmakers, television, live events and web broadcast.
Features
Record to SD/SDHC card (Up to 32GB)Simultaneously record up to 4 tracksRecord Modes: MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNELRecording format: 44.1/48/96kHz, 16 or 24-bit, WAV/BWFTASCAM HDDA microphone preamps wth 120dB EIN and 64dB of gainRecording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputsTwo combo XLR/TRS inputs support +4dBu mic/line level inputPhantom power to channels 1/2 (24V or 48VDC on XLRF)Plug-in power and high-output mic input supported on inputs 3-4CAMERA OUT connector for output from the DR-60DmkII mixer (adjustable gain)CAMERA IN connector for sound monitoring from the cameraIndependent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output50mW/ch headphone amplifierTripod mounting socket (bottom) and mounting screw attachment (top)Handles protect the screen and can be used to attach a shoulder strapSoft-Touch Rubber Keys for silent operationHOLD switch to prevent accidental operationQUICK button feature for easy access to various functions128x64 pixel LCD with backlightUSB 2.0 connection for high-speed transferring of filesMini USB cable includedOperates on 4-AA batteries, an AC adapter (sold separately) or USB bus powerCan extend battery life with BP-6AA battery pack (sold separately)Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)Internal mixer: PAN and LEVEL controlsLow cut filter (40/80/120Hz)Limiter (1/L and 2/R can be selected for linked operation)Delay function for microphone distance adjustment (up to 150ms)M-S decode functionSlate tone generator (AUTO/MANUAL)Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)Selectable slate tone generation. (3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated)File naming format can be set to use a user-defined word or dateDual-recording function allows two files to be recorded simultaneously at different levelsAuto-record function can automatically start and stop recording at set levelPre-recording function allows the unit to record a 2 second sound buffer before recording is activatedSelf-timer function for solo recordingNew file starts recording automatically without interruption when maximum file size is reachedTrack incrementing function allows a recording to be split by creating a new file when desiredJump back and play functionEqualizer function for playback, and level alignment function to enhance the perceived overall sound pressureResume function to memorize the playback position before the unit is turned offMARK function up to 99 points per audio trackDIVIDE function
Specifications
Recording media: SD card (64MB to 2GB), SDHC card (4GB to 32GB)
Recording format
WAV 44.1k/48k/96k Hz, 16/24-bitBWF 44.1k/48k/96k Hz, 16/24-bit
Number of channels: 4-channel (stereo x2)

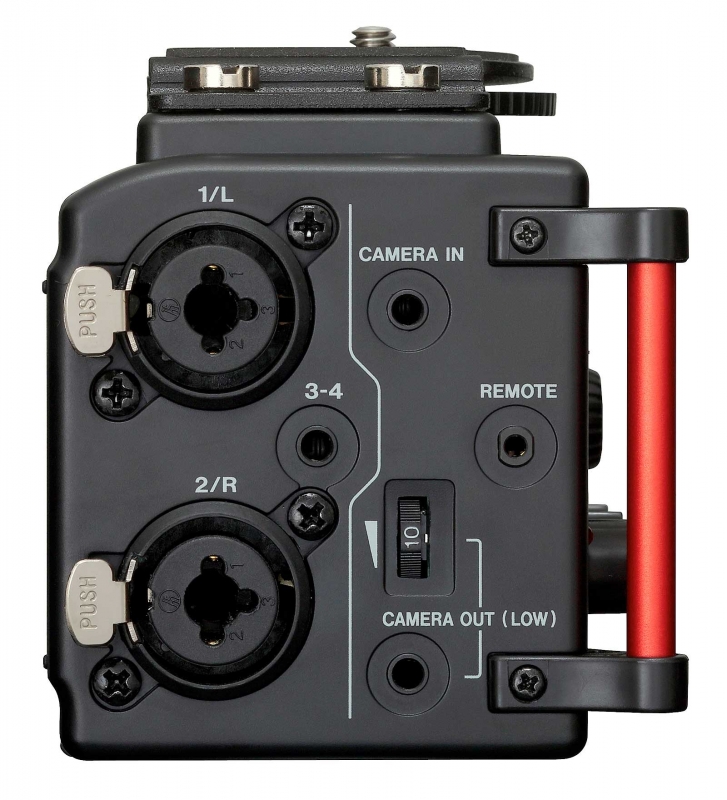

Analog audio input
1/L, 2/R connectors
Connector: XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4" (6.3mm) TRS standard jack
Set to "MIC / MIC+PHANTOM"
Input impedance: 2kPhantom power: 48V ±4V (10mA/CH) / 24V ±4V (10mA/CH)Maximum input level: 0dBuMinimum input level: -72dBuMIC input gain: TRIM MAX
LOW: +11dB
MID: +36dB
HIGH: +52dB
HIGH+PLUS: +64dB
Set to "LINE"
Input impedance: 10k or moreStandard input level: +4dBuMaximum input level: +24dBu
3-4 connector
Connector: 1/8" (3.5mm) stereo mini jack (this connector can be supplied plug-in power)Input impedance: 10kMaximum input level: +10dBVMinimum input level: -50dBVMIC input gain: TRIM MAX
LOW: +3dB
HIGH: +26dB
HI + PLUS: +38dB

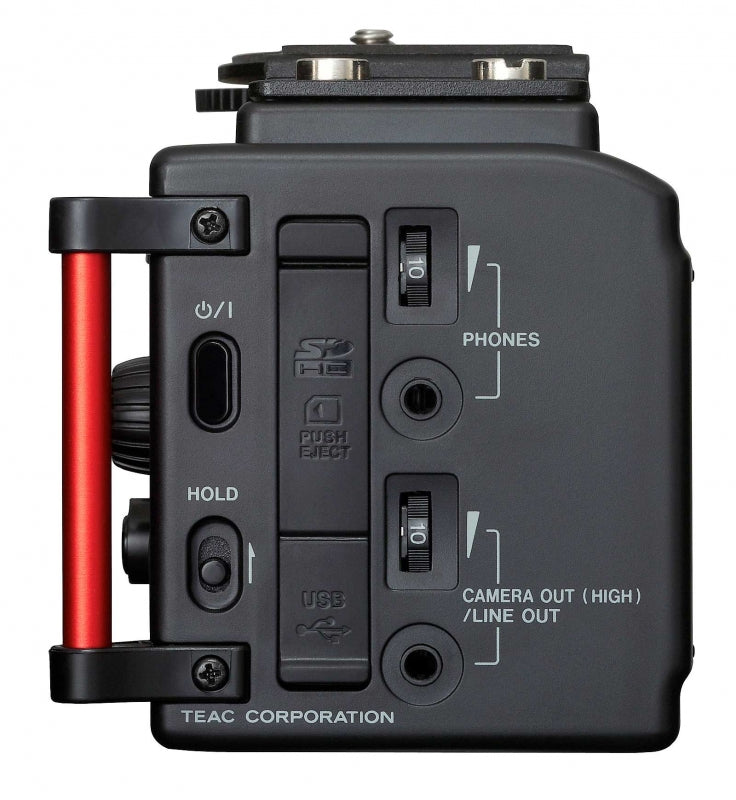

Analog audio output
CAMERA OUT connector
Connector: 1/8" (3.5mm) stereo mini jackOutput impedance: 200Standard output level: -50dBVMaximum output level: -30dBV
LINE OUT connector
Connector: 1/8" (3.5mm) stereo mini jackOutput impedance: 200Standard output level: -10dBVMaximum output level: +10dBV
PHONES connector
Connector: 1/8" (3.5mm) stereo mini jackMaximum output level: 50mW + 50mW
USB
Connector: Mini-B typeFormat: USB2.0 HIGH SPEED mass storage class
REMOTE
Connector: 2.5mm TRS jack
Power
Four AA batteries (Alkaline or NI-MH)USB bus powerDedicated AC adapter (TASCAM PS-P515U, sold separately)Dedicated external battery pack (TASCAM BP-6AA, sold separately)
Power consumption: 5.4W
Continuous operation time: 2ch WAV, 44.1kHz, 16-bit Rec, *All times are approximate.
