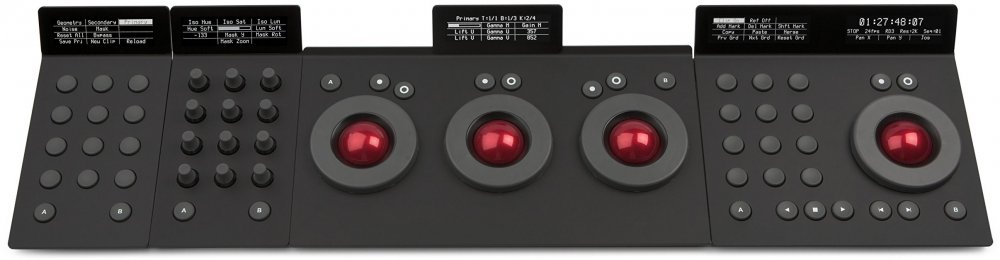

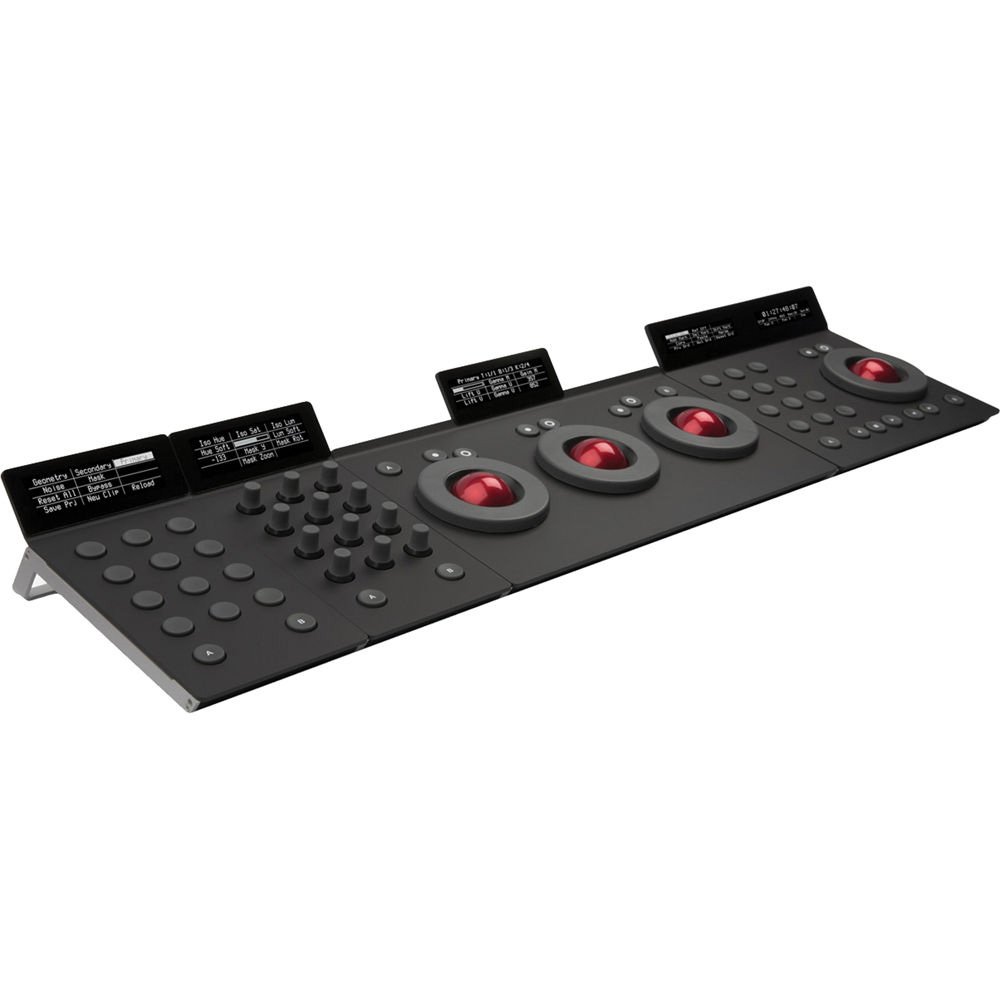

Tangent Bundle of Element Tk, Mf, Kb & Bt panels
UPC/EAN #5060182550101
MPN #TD-Element-bundle
Colour correction panel bundle with Tk, Mf, Kb, and Bt panels
With today's multi-purposing workstations, where desk space is at a premium, having a fully featured panel that is both compact and stylish enough to match its surroundings is a must. But, you'd expect that having a compact design means having to compromise ergonomics, features and control size. With the Element range, there is no compromise! Despite their small desk footprint, each Element offers full-size controls which are ergonomically laid out, and best of all, there are plenty of them.
Intuitive
When it comes to having lots of controls, one of the problems can be "just what does each control do" This isn't the case with Element; every programmable control is clearly labelled, so if the function of the control changes, so does its display label - no more having to refer back to reference notes or on screen help. When the Elements are used with the Tangent Mapper* you can even customise the layout of the controls.
Function and style
Apart from the size, the first thing you will notice about Element is the stylish, ultra slim design. Quality comes in the form of a solid aluminium, precision laser cut case. But it doesn't end there; all the internal components have been carefully chosen for reliability. All rotary controls and trackerballs have optical pickups, which means they are long-life and high precision.The buttons are ultra-reliable with a positive tactile response. The displays are crisp, high-contrast, high-resolution, easy to read, white OLEDs. When put side by side the panels magnetically lock together, keeping the layout neatly aligned.
Cost effective
You would have thought that all this comes with a high price tag - not so with Element! Each Element is competitively priced, and because it's modular in design you can pick and choose which components you need, targeting your funds where they're needed most. And if your budget allows it, you can even add more of the same panel type to build your ultimate control surface.
Extensive support
Most of our software partners have released versions of their applications which support the Element panels. Please check the Application Support tab for further details. If you intend to purchase only certain panels from the set, or if you intend you purchase more than one of any panel, then you should check that your software supports this option.
Features
Ultra-slim all metal constructionEvery programmable control is labelled on a high contrast, high resolution, OLED displayThe display also provides value / feedback where appropriateA set containing one of each panel model has an overall footprint of 77cm x 20cm (30.3" x 7.9")
Modular design
Choose whichever panels you want to start with and expand the set as requiredThe layout is configurable to suit handedness, desk space and to place around other equipmentMultiple panels of each model may be added to your layout; especially useful for some applications
USB for communication and power
USB plug-and play (HID device therefore no drivers are required)USB powered (so no need for external power supply)A single USB cable for each panel
Trackerballs and knobs
High resolution, long life trackerballs with optical laser pickupsEach ball has a third axis "ring" with smooth bearing46mm diameter balls retained by the rings, which can be removed for cleaningHigh resolution, long life knobs with optical pickupsEach knob has a built-in "press to reset" switch
Specifications
Bt: Button panel
12x Programmable buttons2x Additional buttons for SHIFT / ALT etc.1x Display to soft label all programmable controls
Kb: Knob panel
12x Programmable knobs with integral push button resets2x Additional buttons for SHIFT / ALT etc.1x Display to soft label all programmable controls
Tk: Trackerball panel
3x Programmable trackerballs with 3rd axis ringIndividual reset buttons for ball and ring2x Additional buttons for SHIFT / ALT etc.1x Display to soft label programmable controls
Mf: Multifunction panel
1x Programmable trackerball (often used for jog/shuttle)Standard transport controls2x Additional buttons for SHIFT / ALT etc.12x Programmable buttons2x Displays to soft label all programmable controls and display timecode & status etc.
