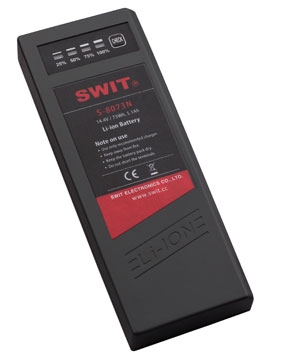

Swit S8073N
MPN #S-8073N
The S-8076N is an NP-1 type rechargeable Li-ion battery pack for professional video cameras, as well as audio mixers with NP-1 battery connection
Adopted high quality Lithium cells
Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted.
The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.
Moreover, the cells we're using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.
Multiple Safety Protection Design
The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected.
Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.
Cell balance adjustment
After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.
Specifications
Nominal Voltage: 14.4V
Capacity: 73Wh/5.1Ah
Max output power: 66W
Max output current: 5.5A
Mount Type: NP-1
Operation Temperature: 0-40C
Net weight: Approx 0.49kg
Dimensions: 185x72x25mm
