Summit EQP-200B
MPN #EQP-200B
The EQP-200B is an indispensable component to many key task's in the studio. From tracking to final touches and audio sweetening, the EQP-200B is the goto EQ!
The EQP-200B combines the best of solid state and tube technology in one excellent stereo program equalizer. The EQP-200B is a passive EQ, using vacuum tube amplification for gain make-up. An incredibly smooth, fat, warm EQ, the EQP-200B is designed for broad tonal shaping and master applications. Offering high and low frequency peak boost as well as high and low frequency shelf attenuate, 105 dB dynamic range, a pure, transformerless signal path, and balanced I/O, this equalizer has great capability, and impeccable specs and quality. Ready to add the finishing touch to your mixes Get the EQP200B.
Passive EQ
Coveted by top professionals for decades, passive EQs have better phase coherence than active designs, and the inductors offer a rich, smooth harmonic quality.
Take the buss!
The EQP-200B is the perfect finishing tool for any mix - just insert it across the master buss of your mixing console or DAW. The sonic benefits from the EQP-200B's exceptional passive tube circuit are apparent even with the EQ circuit in bypass mode.
Hand-crafted in the USA
Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.
Features
Two independent channelsSwitch selectable frequenciesContinuously variable boost or cutSilent in/out switchBalanced input990 Balanced output stage105 DB dynamic rangeEase of operationTransformerless signal pathHand crafted in the USA
Specifications
Size and Weight
Height: 3.5 inches (8.89 cm)
Width: 19 inches (48.26 cm)
Depth: 10 inches (25.40 cm)
Weight: 17 pounds (7.71 kg)
Power Configuration
Internal AC Supply
35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable)
Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC

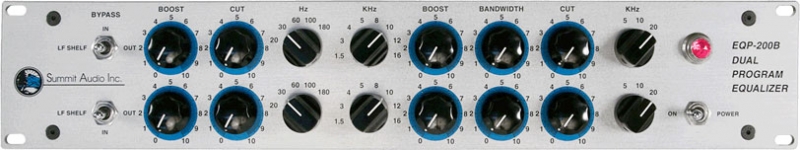

Selectable Frequencies
Low Frequency Shelf / In / Out
3 position togle: 6 dB per octave shelving filter starting at 50 Hz, or standard engaged operation, or
bypass mode
Low Frequency Boost and Cut
20, 30,60, 100, 180 Hz frequencies.
Mid-High Frequency Boost and Cut
1.5k, 3k, 5k, 8k, 10k, 12k, and 16k Hz frequencies.
High Frequency Cut
select at 5k, 10k and 20k Hz frequencies.

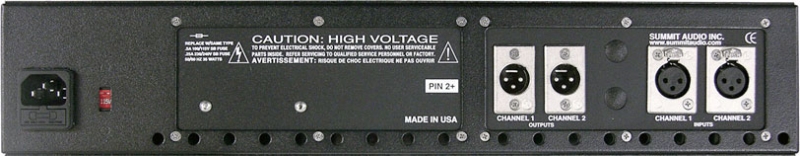

Connections
Inputs: +4 dB female XLR (2)
Outputs: +4 dB male XLR (2)
Max level
Max input level (XLR): +23dB
Max output level (XLR): +23dB
Max gain: +/-20dB
Operating Measurements
Frequency response: Tube: 12Hz-45kHz -0.5dB
Signal to noise ratio: Tube: 125dB average 20Hz-20kHz
THD + Noise: Tube: 0.057% 12Hz-20kHz
Vacuum tubes: three 12AX7A
