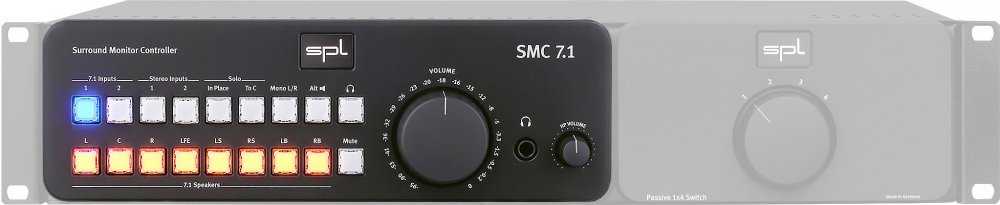

SPL SMC 7.1 - Black
UPC/EAN #4260149321732
MPN #1570
The SPL Surround Monitor Controller SMC 7.1 is an analog studio monitor controller for 7.1 and stereo sources
Each of the two balanced 7.1 inputs and the two balanced stereo inputs can be routed to the balanced 7.1 output. The L/R signals of the active input can optionally be routed to the alternative stereo output. With the high-quality headphone amplifier, you can listen to the L/R signal of the active input as well as to single channels of the 7.1 inputs.
The eight-ganged potentiometer controls the volume of all channels directly - no control circuits like VCAs are used.
The SMC 7.1 is built up in high-quality analog technique, which ensures a linear frequency response up to 100 kHz as well as an outstanding dynamic range.
Features
Two Balanced 7.1 InputsTwo Balanced Stereo InputsBalanced 7.1 OutputBalanced Stereo Output with Sub OutExtensive Routing OptionsSolo in Place / Solo to CenterHigh-Quality Headphone AmplifierDedicated Analog Meter OutputInternal Power SupplyMade in Germany
Specifications
Inputs
Sub-D-25-Input
Sub-D-25 (TASCAM-Standard)Impedance: 20 kOhmsCMR: -82 dBMax. Input level: +22 dB
XLR-Input
Neutrik XLR, symmetrisch, Pin 2 = (+)Impedance: 20 kOhmsCMR: -82 dBMax. Input level: +22 dB
Outputs
Sub-D-25-Output
Sub-D-25 (TASCAM-Standard)Frequency range: 10 Hz to 150 kHz ( -3 dB)Crosstalk at 1 kHz: -92 dBTHD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)Noise (A-weighted): -93 dBDynamic range: 115 dB
XLR-Output
Neutrik XLR, balanced, Pin 2 = (+)Frequency range: 10 Hz to 150 kHz ( -3 dB)Crosstalk at 1 kHz: -92 dBTHD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)Noise (A-weighted): -93 dBDynamic range: 115 dB
Headphone Output
6,35 mm TRS connectorPin wiring: Tip = Left, ring = right, sleeve = GNDImpedance: 22 kOhmsFrequency range: 10 Hz to 80 kHz ( -3 dB)Crosstalk at 1 kHz: -70 dBTHD & N: 0,001% (0 dBu, 1 kHz, 40 kOhms load)Noise (A-weighted): -93 dBDynamic range: 113 dB
Internal operating voltages
Analog: +/- 18 V Power supplyMains voltage (switchable): 230 V AC / 50Hz or 115 V AC / 60HzFuses: 230 V = T 500 mA; 115 V = T 1 APower consumption: max 25 VA
Dimensions and Weight
(WxHxD) 10.95 x 4.6 x 13.1 in (278 x 103 x 333 mm)9.04 lbs (4.1 kg), unit only11.02 lbs (5.0 kg), shipping
