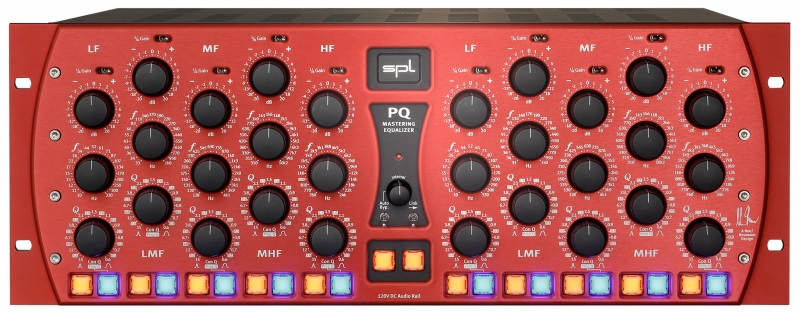

SPL PQ Mastering EQ (Red)
UPC/EAN #4260149321596
MPN #1544
PQ is a fully parametric, dual-channel five-band equalizer. The PQ Mastering Equalizer - Model 1540/1544 is a new revised edition of the well-known SPL PQ Mastering Equalizer.
Both units are based on our 120V Rail Technology. The new PQ features the same high-quality characteristics as the previous model.
All five bands can each be activated or deactivated and you got the possibility (for every single band) to seperately switch between Constant Q and Proportional Q. This kind of circuit has not yet been achieved in any other equalizer.
Several details of this revision were adjusted to current requirements.
Each channel can completely be activated or deactivated, thanks to Auto-Bypass, even automated in a freely selectable time frame.
Bypass of each band and constant Q of the left side can be controlled by the right side in Link mode.
Another highlight is the possibility to boost or cut the amplitude to 20 dB. If you only wish minor changes of the music material, you can reduce the intensity of the boost or cut by using the 1/4 Gain-Switch, which regulates the potentiometer from max +/-20dB to +/-5dB cut. This gives you the possibility to perform small corrections, as common in Mastering or higher amplitudes in Proportional-Q mode.
Thanks to detent potentiometers, a precise recall is very easy to realize. You can adjust parameters Gain, Frequency and Q in 41 steps with detent potentiometers.
Specifications
Frequency Range: 10Hz - 40kHz
CMRR (1 kHz, +34 dBu, Band 1-5 ON, B/C = 0: > -82dB
Transmission Bandwidth: (3 dB, Band 1-5 ON, B/C = 0): 10 Hz-100 kHz
THD & N (@ 24dBu, Constant-Q): > 107dB
THD & N (@ 24dBu, Proportional-Q): > 106dB
Noise (unweighted, at 24 dBu, Band 1-5 ON, B/C = 0): - 91dBu
Noise (A-weighted, at 24 dBu, Band 1-5 ON, B/C = 0): - 94dBu
Noise (CCIR, at 24 dBu, Band 1-5 ON, B/C = 0): - 86dBu
Harmonic Distortion
0,2% @ 1kHz/-30dBu0,05% @ 1kHz/-20 dBu0,01% @ 1kHz/0 dB0,002% @ 1kHz/+10 dBu0,0005% @ 1kHz/+30 dBu
Input Inpedance: 20kOhm
Max. Input Level: + 32,5dBu
Output Inpedance:
Write a review about the SPL PQ Mastering EQ (Red)
![]()
5.0
Gregory Pastic - Sound Art Mastering
Cowchan Valley, BC
June 2, 2023
Superb!
From subtle EQ adjustments to full on 'in yer face', this is one gorgeous piece of equipment. For mastering I really love the 1/4 EQ toggle switch: dial in a setting that is a bit too much and then flip the toggle switch and the result is a subtle EQ boost or cut that just seems to sound right.
Read more And the proportional EQ...amazing!
