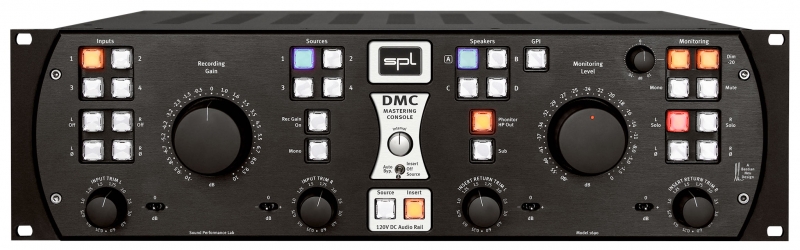

SPL DMC (Black)
UPC/EAN #4260149321763
MPN #1690
The DMC console has 4 stereo inputs and 4 stereo sources with 2 stereo recording outputs as well as 3 stereo and 2 mono speaker outputs that can be expanded with the MC16 controlle
Mastering Console
The DMC is the heart of the mastering studio. The converters, the players, the DAW, the recorders and the speakers are connected to it. The audio quality of the console is therefore crucial. Like all devices of the mastering series, the DMC works on the unparalleled 120V technology.
Inputs & Sources
Audio signals that shall be processed are connected to the Inputs and audio signals for comparison or playback are connected to the Sources. Four stereo inputs pairs are available for each.
Each input channel can be switched on/off, phase reversed and trimmed in 0.25 dB steps. A stereo input can be switched to mono.
The large potentiometer for the recording gain allows sensitive gain rides. If it is not used, it should not be activated. This keeps the entire control stage outside the signal path.
Monitoring & Inserts
Three pairs of speakers can be operated for full-range, mid-field and near-field monitors. Speakers D is for a mono loudspeaker.
Preferably a Phonitor headphone amplifier is connected to the Phonitor HP Out, whereby it can be programmed whether the loudspeaker is automatically switched off during headphone operation or not.
The same applies to the subwoofer. It can be programmed with which monitor it is paired and activated together.
The insert return can also be trimmed in 0.25 dB steps to compensate for the finest level differences after an insert chain. The Hermes Mastering Router is preferably connected to the inserts, with which up to eight stereo processors can be connected and freely routed and stored.
In the monitoring section, each loudspeaker channel can be solo'ed and phase reversed.
The large monitoring level potentiometer has an illuminated indicator so that the monitor level can be easily assessed even from a greater distance.
A loudness compensation (+/- 10 dB) can be activated. Alternatively it can be linked to the Insert, Sources or Inputs switches allowing loudness compensation at any stage.
Features
Dual channel mastering console (3U)120V DC Audio Rail - 5G SUPRA op-amps4 stereo inputs and 4 stereo sources2 stereo recording outputs3 stereo and 2 mono speaker outputs (sub, radio speaker)Expandable multi-channel monitoring0.25dB stepped input & insert return trimsInsert & Source Auto BypassPhonitor direct outputVariable dim (e.g. loudness compensation)GPI switch function (Talkback, Red light etc.)Stereo and mono metering outputs
Specifications
Inputs
Max. Input Level: +32.5 dBuInput Impedance: 20 kOhm (balanced)CMRR (at 0 dBu): > 82 dBu
Outputs (Speaker Output)
Max. Output Level: +32.5 dBuOutput Impedance:
