UPC/EAN #668705000383     MPN #MINI-STAGEBOX-16R

$1999.99

Save 15.6%, MSRP $2370.00
Financing available
Free shipping in Canada. Conditions

16 analog mic/line inputs, 8 line out remote stage box. Single Cat5 MADI/USB. Console MADI card included



The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

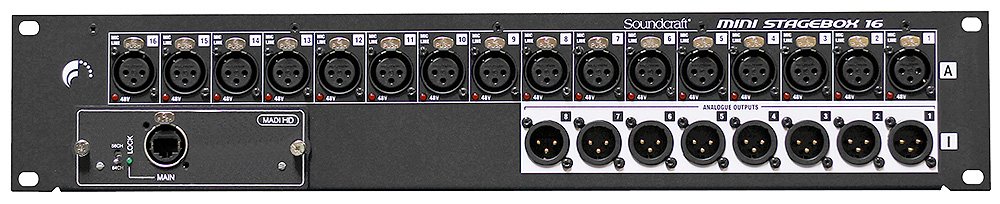

The Mini Stagebox 32R (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16R (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.

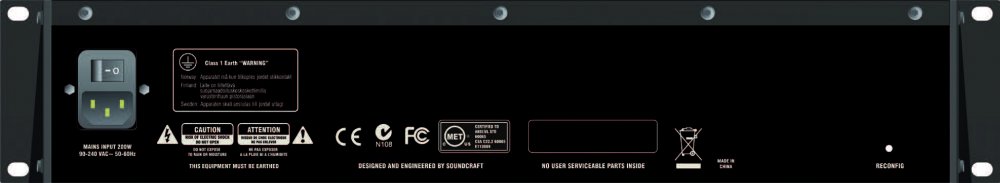

The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

Both models are supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately)
  • For Vi and Si Mixing Consoles
  • Adds 16 Mic Line Inputs to System
  • Adds 8 Outputs to System
  • 2U RU
  • Integrated Power Supply
  • MADI Card Included
  • Frequency Response
  • Mic / Line Input to any Output: +0/-1dB, 20Hz " 20kHz

  • T.H.D.
  • Mic Sensitivity -30dBu: < 0.01% @ 1kHz

  • Noise
  • Residual noise: -85dBu
  • Mic Input E.I.N. (maximum gain): -125dBu (150? source)
  • Mix noise, masters at unity: < -86dBu
  • 1 input to mix at unity gain: -84dBu
  • CMRR mic @1KHz (max gain): -86dBu

  • Crosstalk (@ 1kHz)
  • Mic " Mic: <-80dB @ 1kHz

  • Input Gain
  • Mic Gain: -5dB " 58dB integrated pad design 1dB steps
  • Max. input level: +24dBu
  • Max. output level
  • +22dBu

  • Sample rate
  • 48kHz

  • Convertor resolution
  • 24 bit

  • Latency
  • 1.5ms

  • Internal clock accuracy
  • +/- 25ppm

  • Mains power consumption
  • 33W

  • Mains voltage operating range
  • 90 " 264 VAC, 47 " 63Hz

  • Operating temperature range
  • -10oC " +50oC

  • Relative humidity
  • 0 " 90%

  • Storage temperature range
  • -10oC " +50oC
