Sound Devices Powerstation-8M
UPC/EAN #850032705080
MPN #10807
Streamlines charging, jamming timecode, and transferring files for up to (8) A20-Mini Transmitters

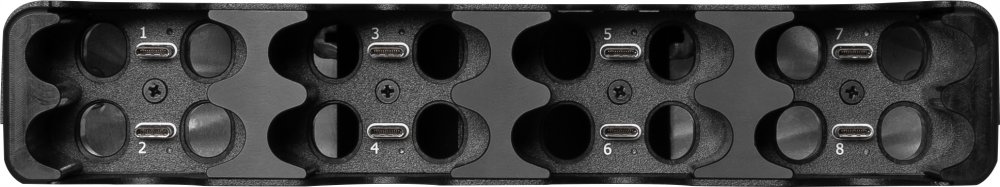

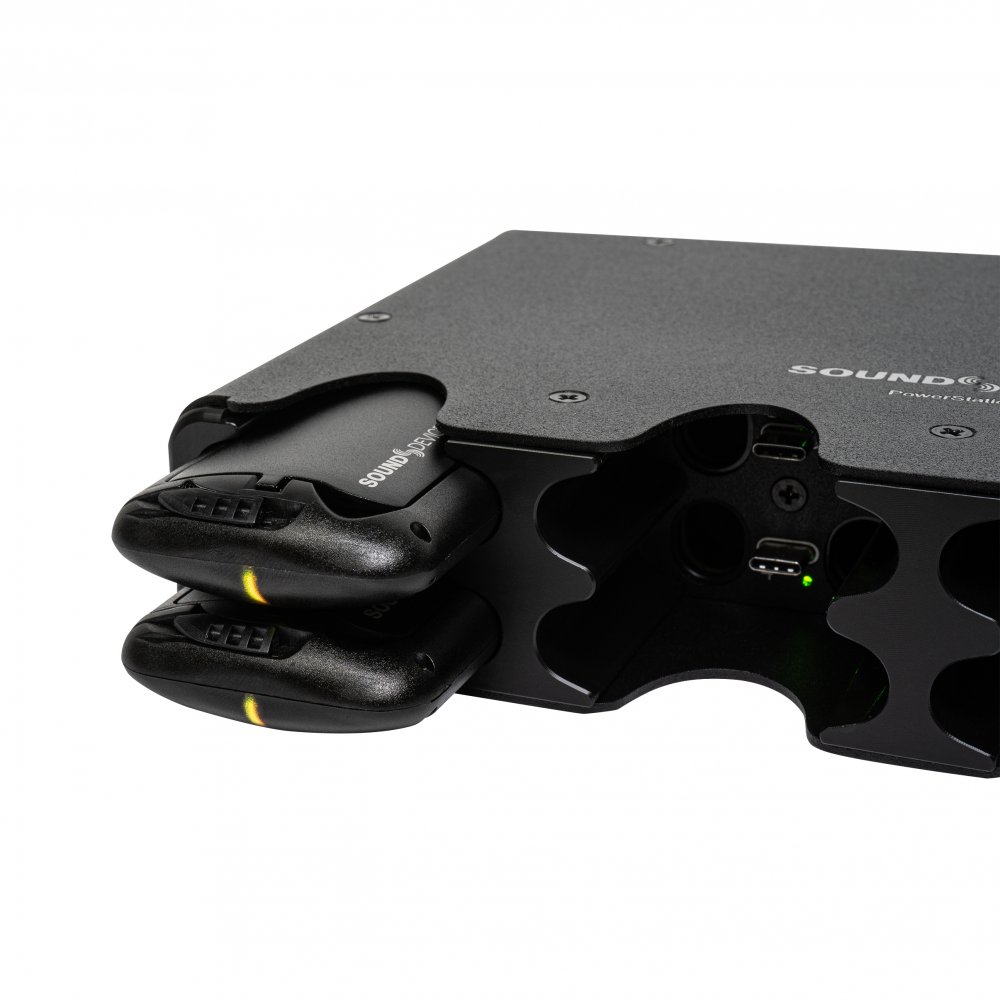

The PowerStation-8M provides simultaneous battery charging, file transfer, and timecode jamming of up to eight A20-Minis or four A20- Minis fitted with the A20-BatteryDoubler accessory. Powered via DC (TA4) or USB-C (USB-PD)
Specifications

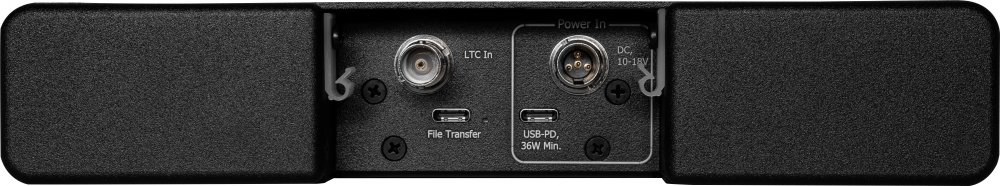

Power
USB-C: PD (Power Delivery), 36 W or higher, or
TA-4: 10 - 18 VDC, 36 W or higher
Pin-4 hot, pin-1 ground, pin-2 and pin-3 data for smart batteries. Leave pins-2 and pin-3 disconnected if not using smart batteries.
LTC Input
Input impedance: 5k ohm
Signal level: 0.3 - 5 Vp-p
USB-C
USB 3.0 SuperSpeed, internal hub
Dimensions (HxWxD)
40 mm x 220 mm x 136 mm (without feet)
1.58 in x 8.66 in x 5.35 in (without feet)
Weight
670 g
1.5 lb
Included Accessories
Power Supply
2x USB-C to USB-C Cables, USB 3.0
