Sound Devices A-FLIP
UPC/EAN #854454006879
MPN #9820

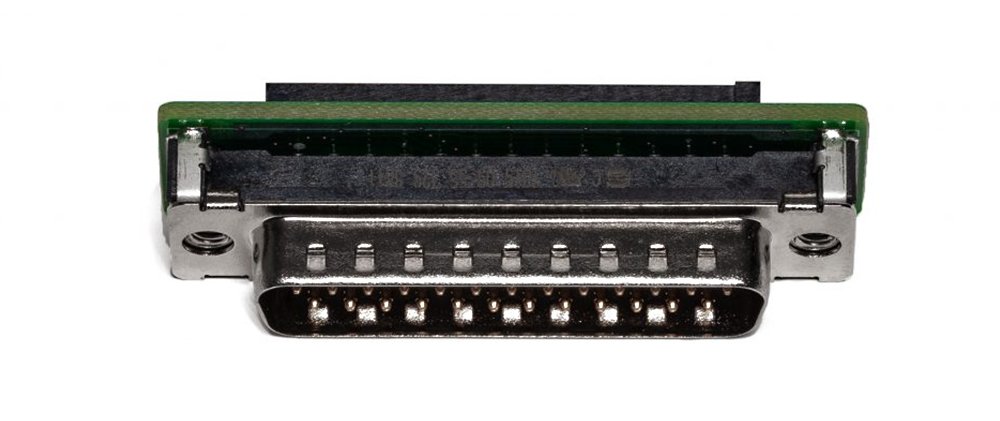

The A-FLIP adapter changes the orientation of an A10-RX in an SL-6 or A10-RACK.
Supplies Required:
A Phillips head screwdriverThe A-FLIP uses the screws already installed in the A-SLFour M2.5-0.45 16mm screwsTwo M3x0.5 6mm screws
Step 1
Detach the A-SL from the A10-RX by removing the four 16MM screws from the corners. Set the screws aside for reassembly.
Step 2
Detach the A-SL from the back of the A10-RX.
Step 3

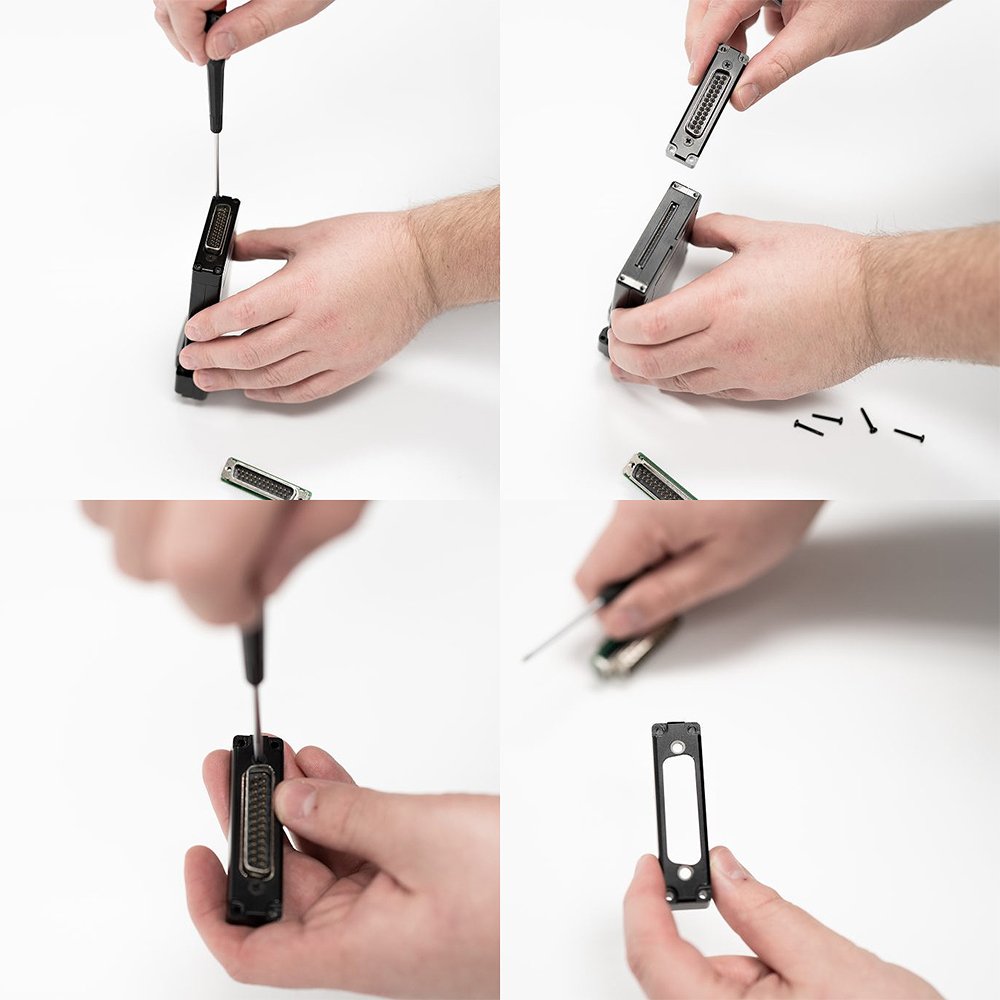

Remove the two 6mm screws from either side of the DB-25 connector. Set the screws aside for later use.
Step 4
Slide the connector out of the housing.
Step 5

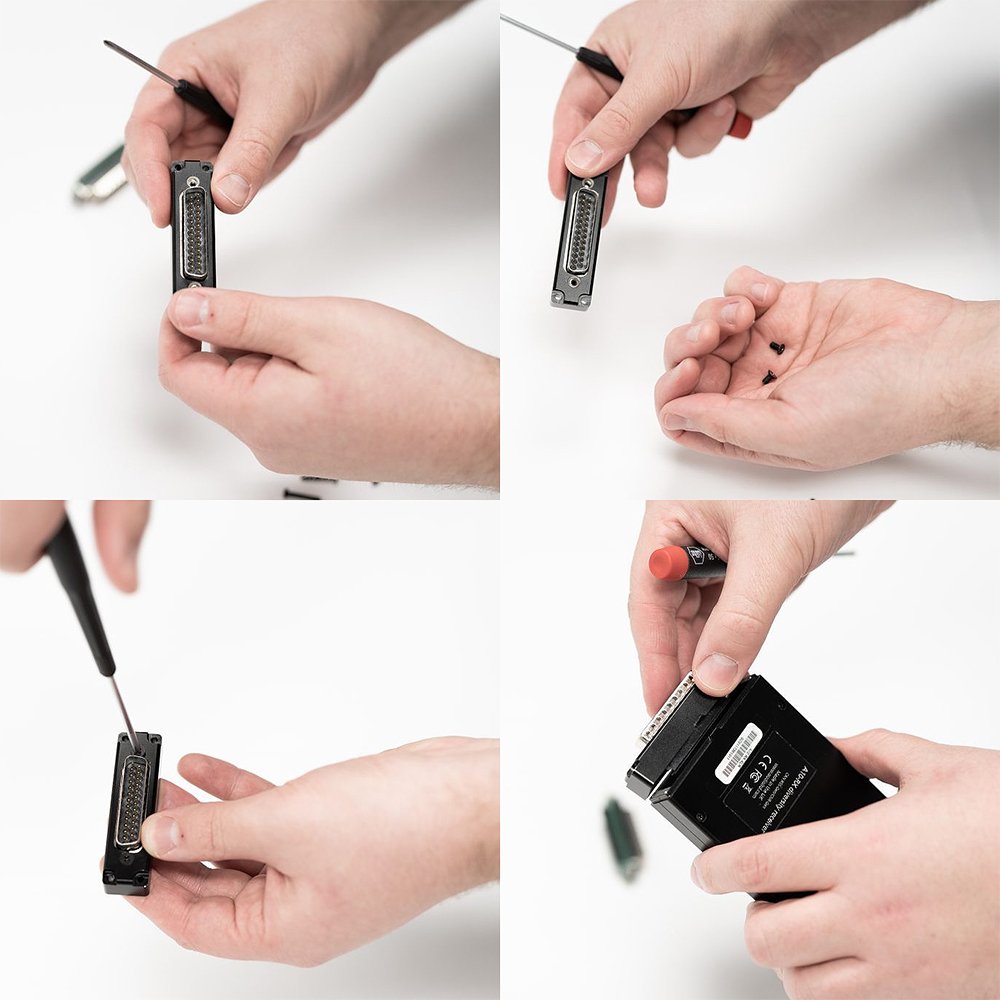

Insert the A-FLIP into the A-SL housing.
Step 6
Using the two 6mm screws, secure the A-FLIP.
Note that the longer side of the connector is now facing up.
Step 7
Insert the A-SL with A-FLIP back onto the A10-RX.
Use the tab to guide the A-SL to the body of the A10-RX.
Step 8

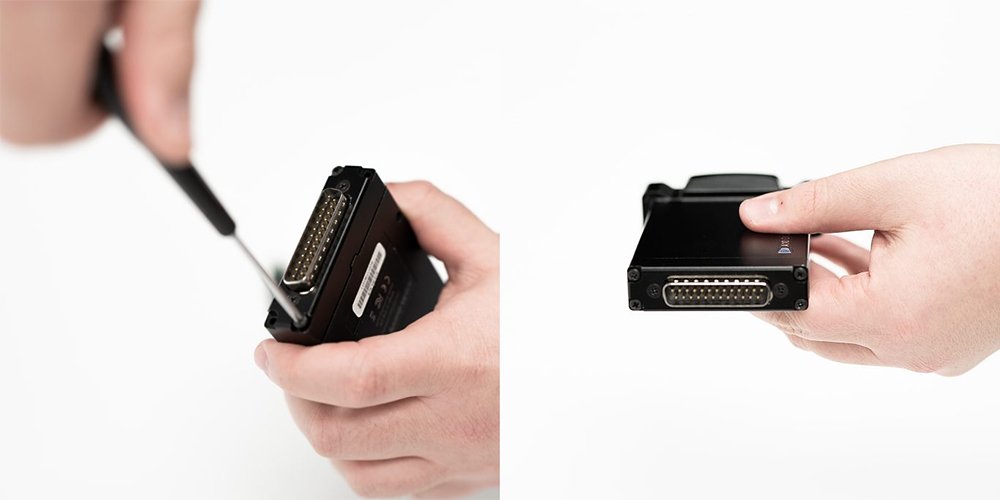

Replace all four corner 16mm screws, securing the A-SL to the A10-RX.
Step 9
The A-FLIP is now successfully installed and ready to use in any A10-RACK or Sound Devices SL-6.
