Sony UWP-D21/25
MPN #UWPD21/25
Camera-mount wireless omni lavalier microphone system (UC25: 536 to 608 MHz)
The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today's content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

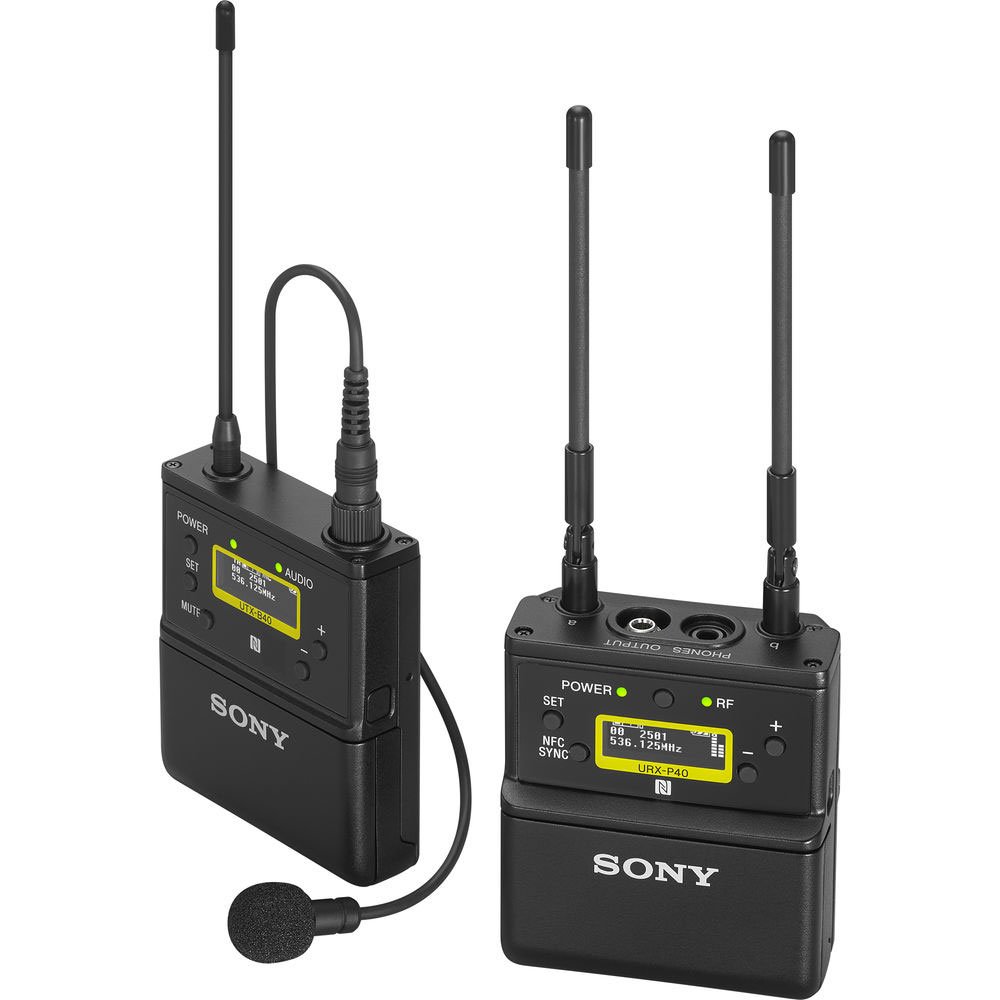

The UWP-D21 bodypack wireless microphone package includes the UTX-B40 bodypack transmitter, URX-P40 receiver, ECM-V1BMP omni-directional lavalier microphone and accessories.
Features
High quality sound with Sony digital audio processingNFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-B40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers)True double tuner diversity for stable signal receptionAuto gain mode volume control+15 dB gain volume boost mode for off-mic audioLine inputChannel memory for fast switching between receiver frequencies for two transmitter operationTransmitter frequency sent to receiver for matching multiple receivers to one transmitterHeadphone output for monitoringMonitor mode for using a receiver as an ear monitorVariable muting functionCompatibility with Sony WL-800/UWP/UWP-D seriesReceiver output level controlHigh visibility OLED display, ideal for indoor/outdoor useUSB connector for power supplyDigital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)*
Specifications

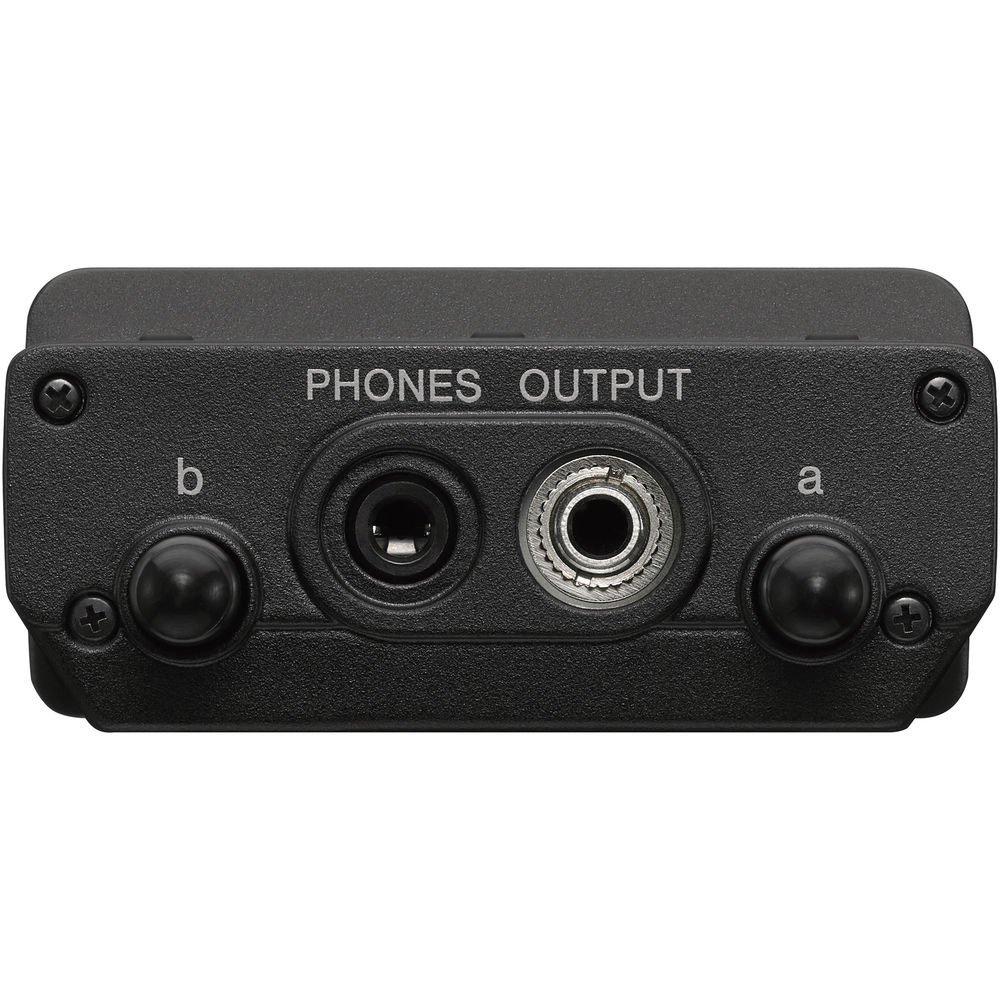

URX-P40 portable receiver
Oscillator Type: Crystal-controlled PLL synthesizerReception Type: True diversity methodAntenna Type: 1/4 ? wavelength wire antenna (angle-adjustable)Carrier Frequencies: 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (typical) (J model)Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)Audio Delay: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)Audio Output Connector: 3.5mm diameter 3-pole locking mini jack, , external connectionAudio Output Level: "60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level), "20 dBFS (external connection, digital output, 0 dB audio output level), "50 dBFS (external connection, analog output, 0 dB audio output level)Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)Headphone Output Connector: 3.5 mm diameter mini jackHeadphone Output Level: Max. 10mW (16-ohm)Tone Signal FrequencyIn UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHzDisplay: OLEDPower RequirementsDC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)Battery Life*: Approx. six hours, *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 C (77 F) DISPLAY MODE set to AUTO OFFOperating Temperature: 0 C to 50 C (32 F to 122 F)Storage/Transport Temperature: "20 C to +55 C ("4 F to +131 F)Dimensions: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)Mass: Approx. 131 g (4.6 oz) (excluding batteries)

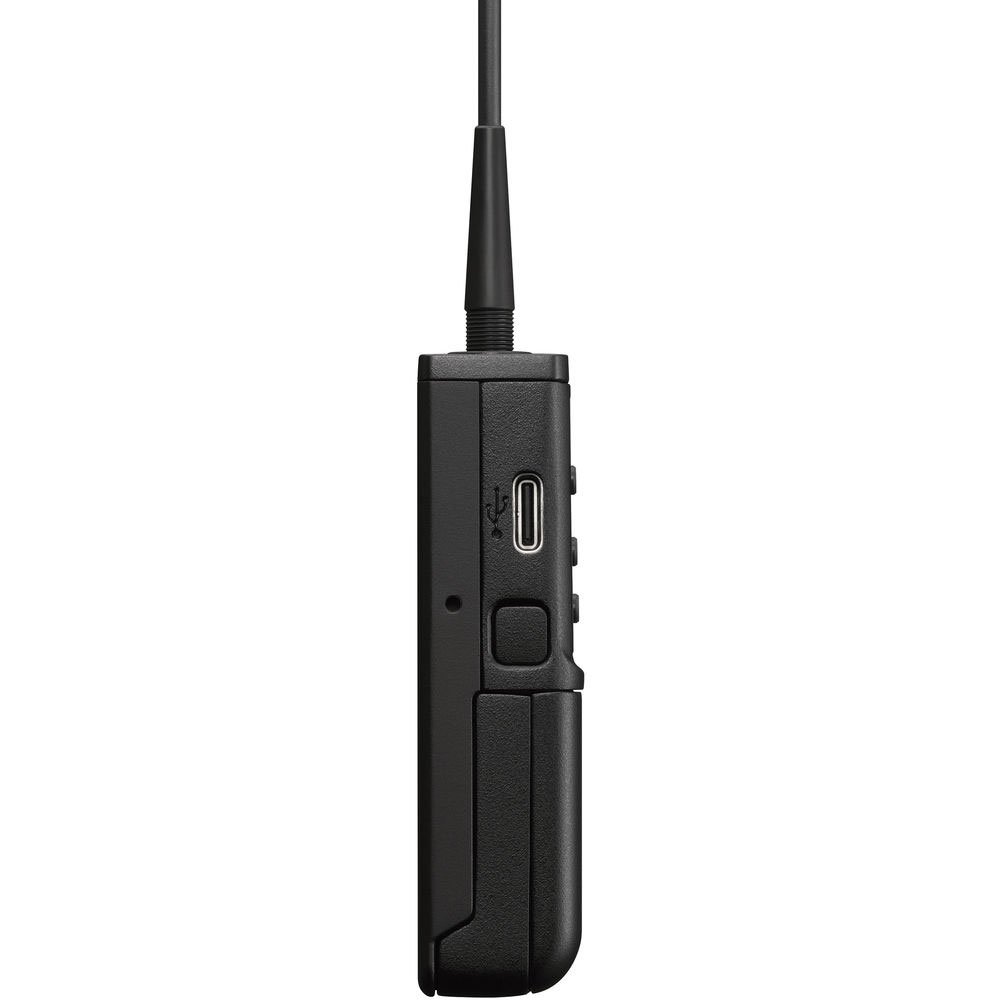

UTX-B40 bodypack transmitter
Oscillator Type: Crystal-controlled PLL synthesizerAntenna Type: 1/4 ? wave length wire antennaCarrier Frequencies: 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models), 10 mW/2 mW selectable (J, E, KR models)Capsule Type: Elect retcondenserDirectivity: Omni-directionalInput Connector: 3.5 mm diameter 3-pole locking mini jackReference Audio Input Level: "60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation), +4 dBu (LINE input )Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (Typical) (J model)Signal-to-Noise Ratio: 60 dB ("60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)Distortion: 0.9% or less ("60 dBV, 1 kHz input)Audio Delay: Approx. 0.35 msTone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHzDisplay: OLEDPower Requirements: DC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)Battery life*: Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models), Approx. 10 hours with output power of 10 mW (J, E, KR models), * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 C (77 F).Operating Temperature: 0 C to 50 C (32 F to 122 F)Storage/Transport Temperature: -20 C to +55 C ("4 F to +131 F)Dimensions: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)Mass: Approx. 83 g (2.9 oz) (excluding batteries)
