SONY  |  SKU: 23855

ECM88B

Lavaliers & Headsets

Omnidirectional electret condenser, ultra-miniature 3.5mm size, 20Hz"20kHz response, 125dB SPL max, low noise, 8.2ft cable, XLR or 4-pin powered.

$850.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

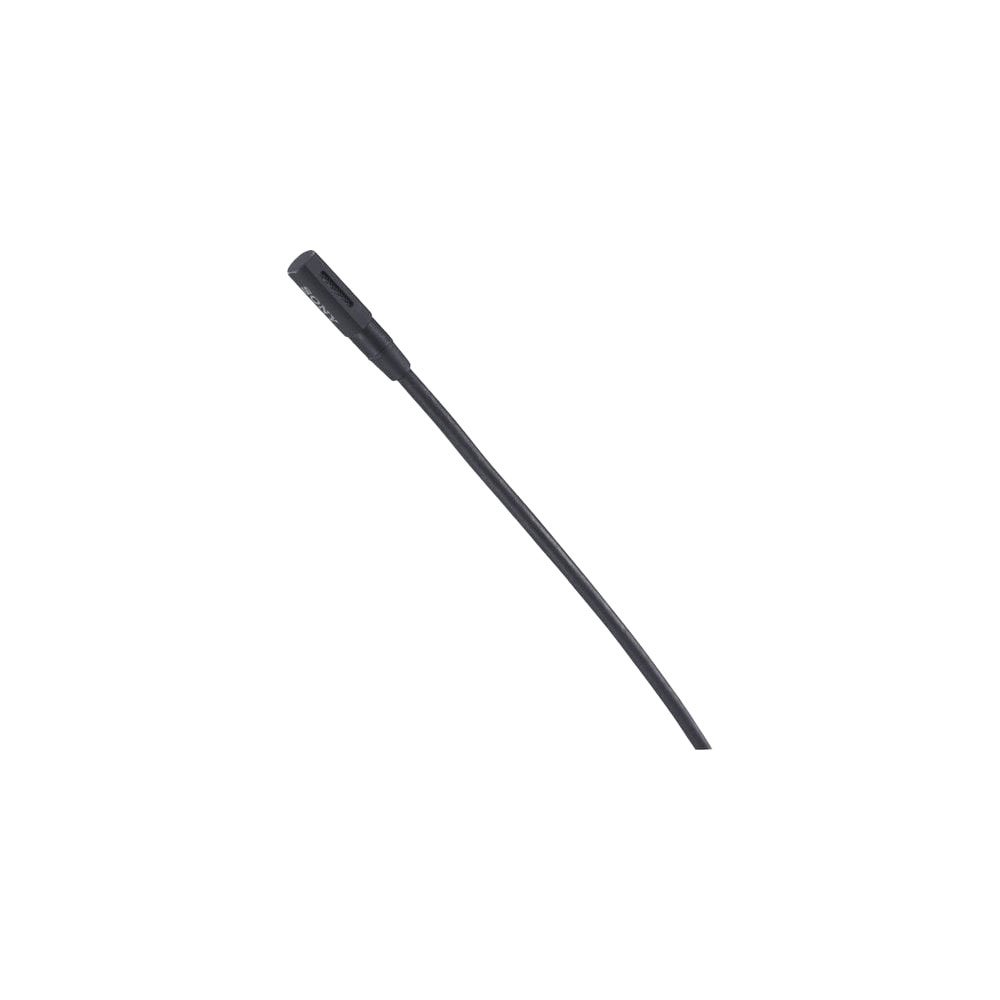

The Sony ECM-88B is an ultra-miniature, omni-directional electret condenser lavalier microphone designed for applications demanding pristine audio quality and minimal visual intrusion. Tailored for studio broadcasting and professional video production, it features a sophisticated dual-diaphragm design that enhances sensitivity, expands dynamic range, and minimizes inherent noise. With a flat, extended frequency response from 20 Hz to 20 kHz, the ECM-88B captures voices and instruments with exceptional clarity and naturalness, making it ideal for high-stakes media environments.

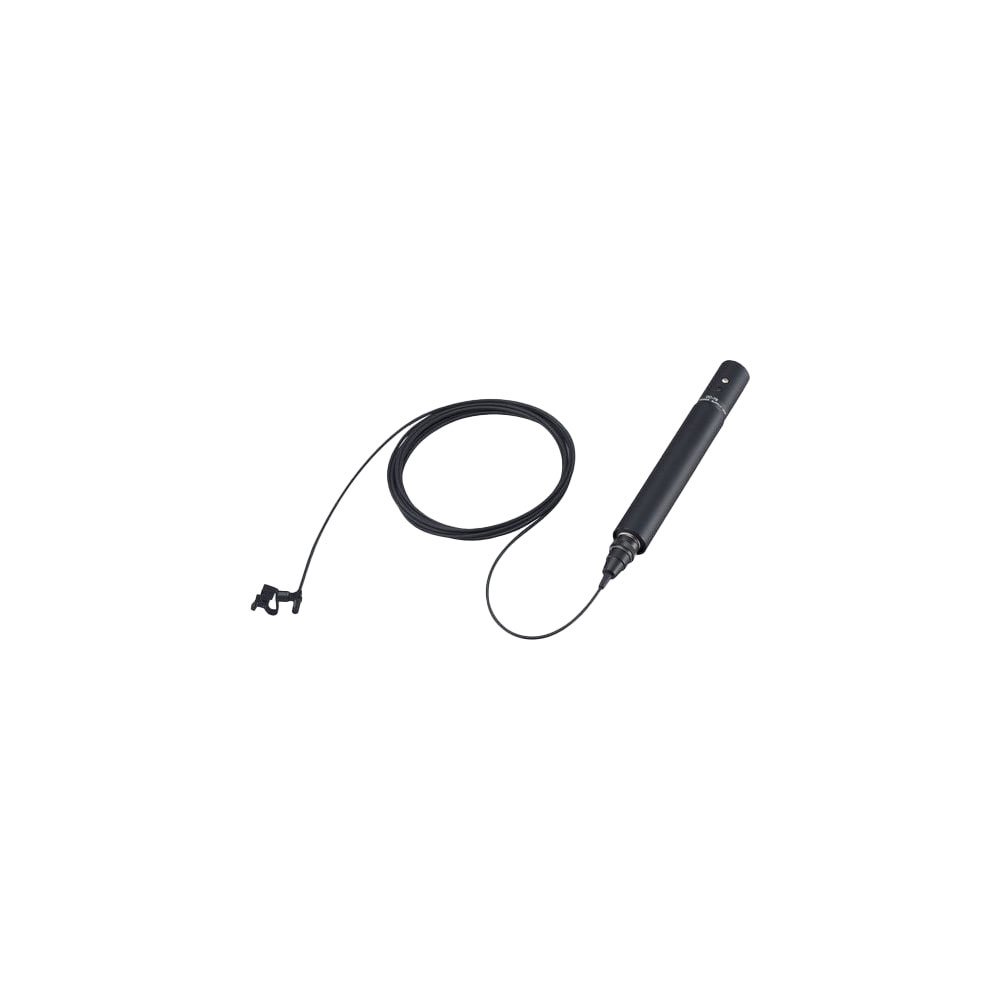

This microphone is built to endure varied shooting conditions, featuring a water-resistant construction that ensures consistent performance even in challenging environments. A unique diaphragm mounting structure significantly reduces cable noise-a common issue in lavalier setups-allowing for cleaner recordings in movement-intensive scenarios. The ECM-88B includes a DC-78 power supply unit, which supports both phantom power and AA battery operation, offering flexibility in field and studio setups.

Despite its rugged capabilities, the ECM-88B remains remarkably compact. The microphone head measures just 3.5 mm in diameter and 16.8 mm in length, making it one of the smallest in its class. Its feather-light build-less than 1 gram-ensures comfort and invisibility when worn. The included accessories, such as tie clips, a windscreen, and a mic case, further support diverse mounting and handling needs. Whether mounted discreetly on clothing or integrated into a headset, this microphone delivers consistent, high-quality audio ideal for broadcast, stage, and corporate use.

Features

Ultra-miniature lavalier microphone designed for high-quality broadcast and studio use

Omni-directional pickup captures natural sound from all directions

Dual-diaphragm design offers high sensitivity, wide dynamic range, and low noise

Special diaphragm mounting reduces cable noise common in lavalier mics

Flat and wide frequency response from 20 Hz to 20 kHz for clear, accurate audio

Water-resistant construction ensures reliable performance in various environments

Supports battery operation or external DC power (with included DC-78 unit)

Supplied with 4-pin connector and DC-78 power supply for XLR output

Long 8.2-foot cable provides flexibility in setups

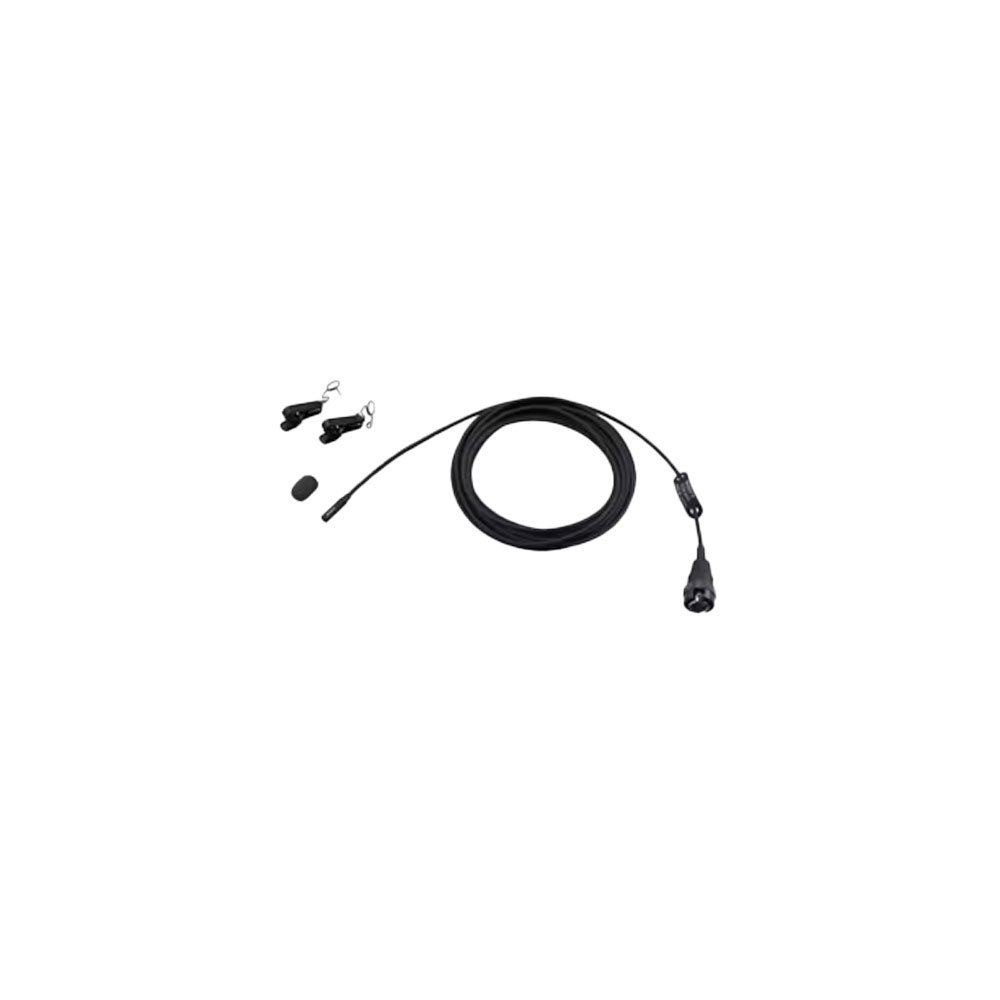

Includes windscreen, tie clips (vertical, horizontal, and double), ferrite clamp, case, and instructions

Specifications

General Specifications

Model: Sony ECM-88B

Microphone Type: Electret condenser

Polar Pattern: Omni-directional

Application: Lavalier microphone for studio and broadcast

Mounting: Tie clip (single vertical, horizontal, double clip)

Water Resistant: Yes

Dimensions Mic Head: 3.5 mm diameter x 16.8 mm length

Dimensions Power Unit: 20 mm diameter x 144 mm length

Weight with DC Power Supply: 160 grams

Weight Mic Only: 0.5 grams

Audio Specifications

Frequency Response: 20 Hz to 20 kHz

Sensitivity: -52 dB plus minus 2 dB with DC power unit, -39 dB or 11.2 mV for 4-pin version

Output Impedance: 30 ohms unbalanced, 100 ohms balanced with DC-78

Dynamic Range: 99 dB or more

Signal to Noise Ratio: 68 dB or more (A-weighted)

Inherent Noise: 26 dB SPL or less

Induction Noise from Magnetic Field: 5 dB SPL or less

Wind Noise with Windscreen: 45 dB SPL or less

Max Input SPL: 125 dB SPL

Connectivity

Connector Type: SMC9-4P 4-pin on microphone, XLR-3-12C male via DC-78 power unit

Cable Length: 2.5 meters

Power Requirements

Power Options: AA battery or DC 12 to 48 V via DC-78, or DC 1.1 V to 10.0 V via 4-pin

Battery Type: LR6 AA size

Battery Operating Time: Approx 6000 hours

Power Consumption: 0.3 mA or less internal, 2 mA or less external

Included Accessories

Windscreen (Urethane type)

Vertical tie clip

Horizontal tie clip

Double horizontal tie clip

Ferrite clamp

Operating instructions

Microphone case

DC-78 power supply unit

Optional Accessories

Wind screen pack

Vertical clip pack

Safety clip pack

Horizontal clip pack

Double clip pack

Color windscreen pack

Black windscreen pack

Accessory kit
