Sony ECM-100U
UPC/EAN #027242910928
MPN #ECM100U

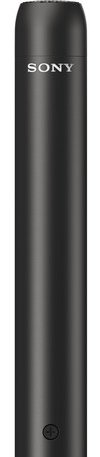

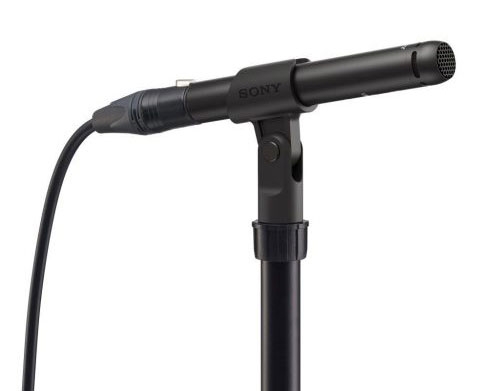

The Sony ECM-100U Hi-Res Microphone is a uni-directional condenser microphone designed to perfectly capture the raw sound of instruments
Providing a powerful studio and live tool for recording instruments of all types, the ECM-100U provides flat frequency response from 20Hz up to 50 kHz. This fits into Sony's ethos of Hi-Resolution audio products.
The ECM-100U uses a two-part metallic body construction originally used in the famous C-800G studio mic to prevent acoustic vibration and self-noise, resulting in perfectly clear sound.
The mic is fitted with a low-cut filter ideal for reducing low-frequency noise and giving you an option to reduce LF as a result of the proximity effect. There is also a -10dB pad switch for added headroom where necessary.
Features
Excellent Sound Quality
Newly developed small diaphragm microphone capsule with Uni-directional characteristics delivers authentic sound of instruments with extremely low distortion.
Flat and Wide Frequency Response
The C-100 microphone has flat and wide frequency response (20 Hz to 50kHz) and provides superb sound reproduction quality for High-Resolution Audio.
Noise Elimination Construction
Two-part metallic body structure originally employed in the C-800G microphone prevents acoustic vibration, resulting in low noise and clear sound.
Low-Cut Filter
Low-Cut filter switch helps eliminate low-frequency noise and proximity effect.
Pad Switch
An -10dB pad switch on ECM-100U microphone provides added headroom and minimizes distortion caused by transient peaks.
Specifications
Capsule Type: Electret Condenser
Frequency Response: 20 Hz to 50 kHz
Directivity: Cardioid
Sensitivity: -41 dB
Output Impedance: 160±15%, Balanced
Dynamic Range: 117 dB or more
Signal-to-Noise Ratio: 73 dB or more
Inherent Noise: 21 dB SPL or less
Wind Noise: 50 dB SPL or less (with supplied windscreen)
Maximum Input Sound Pressure Level: 138 dB SPL
Connector: XLR-3-12C (male)
Mic Cable: XLR 3-pin Cable Required (Not Supplied)
Power Requirements: +48 V phantom power
Dimensions: 19dia.x130mm (0.75dia.x5.12in.)
Mass: Approx. 132g (4.6oz.)
Supplied Accessories:
Mic holder (1)Wind screen (1)Stand screw adaptor (W3/8 to NS5/8) (1)Operating instructions (1)Carrying case (1
